Heating and Air Conditioning: Description and Operation

AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DIAGRAM

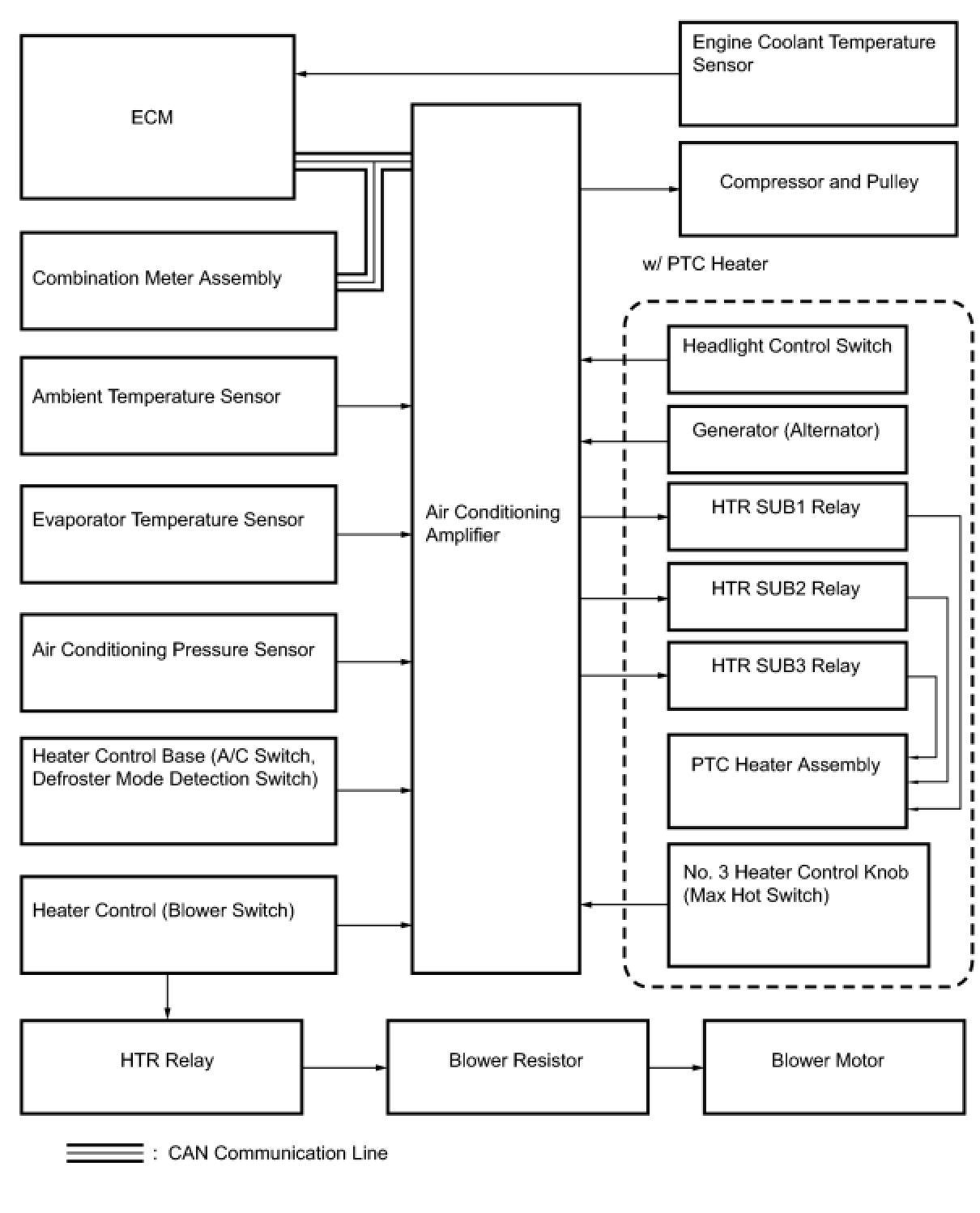

SYSTEM DIAGRAM

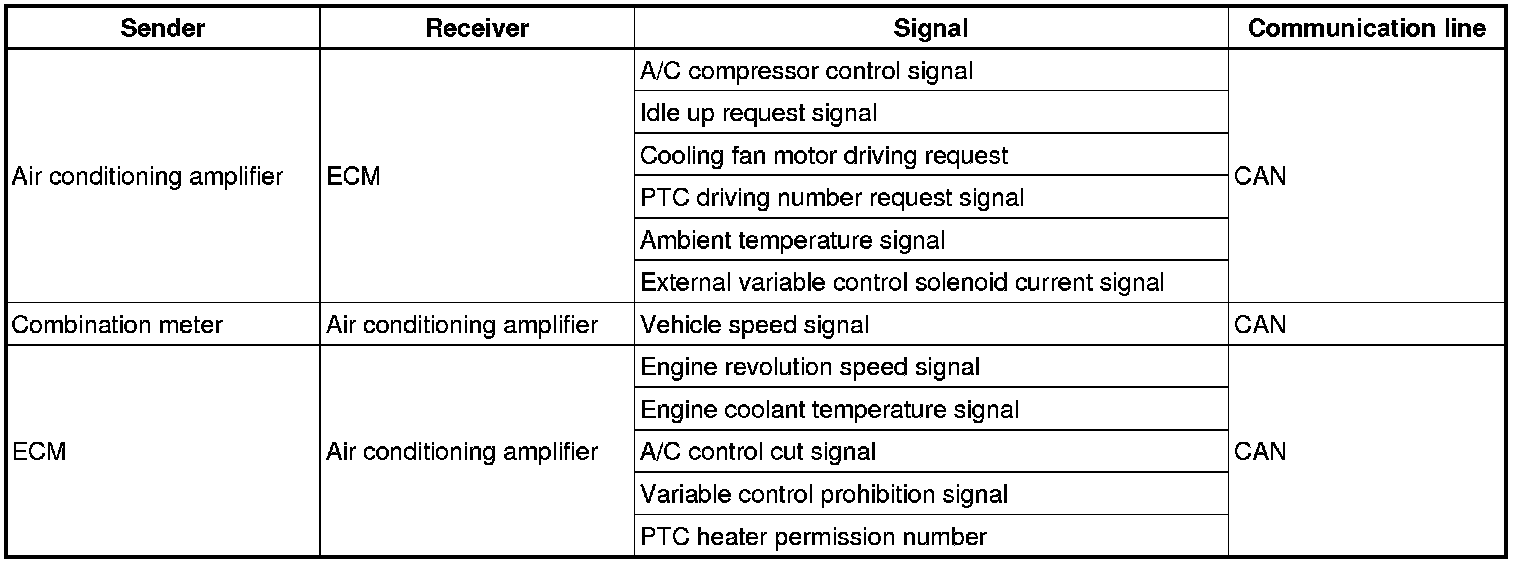

Communication table






AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL
(a) The air conditioning system has the following features:
The air conditioning amplifier controls the operation of parts, such as the air conditioning compressor, automatically in accordance with the operating conditions of the air conditioning system.

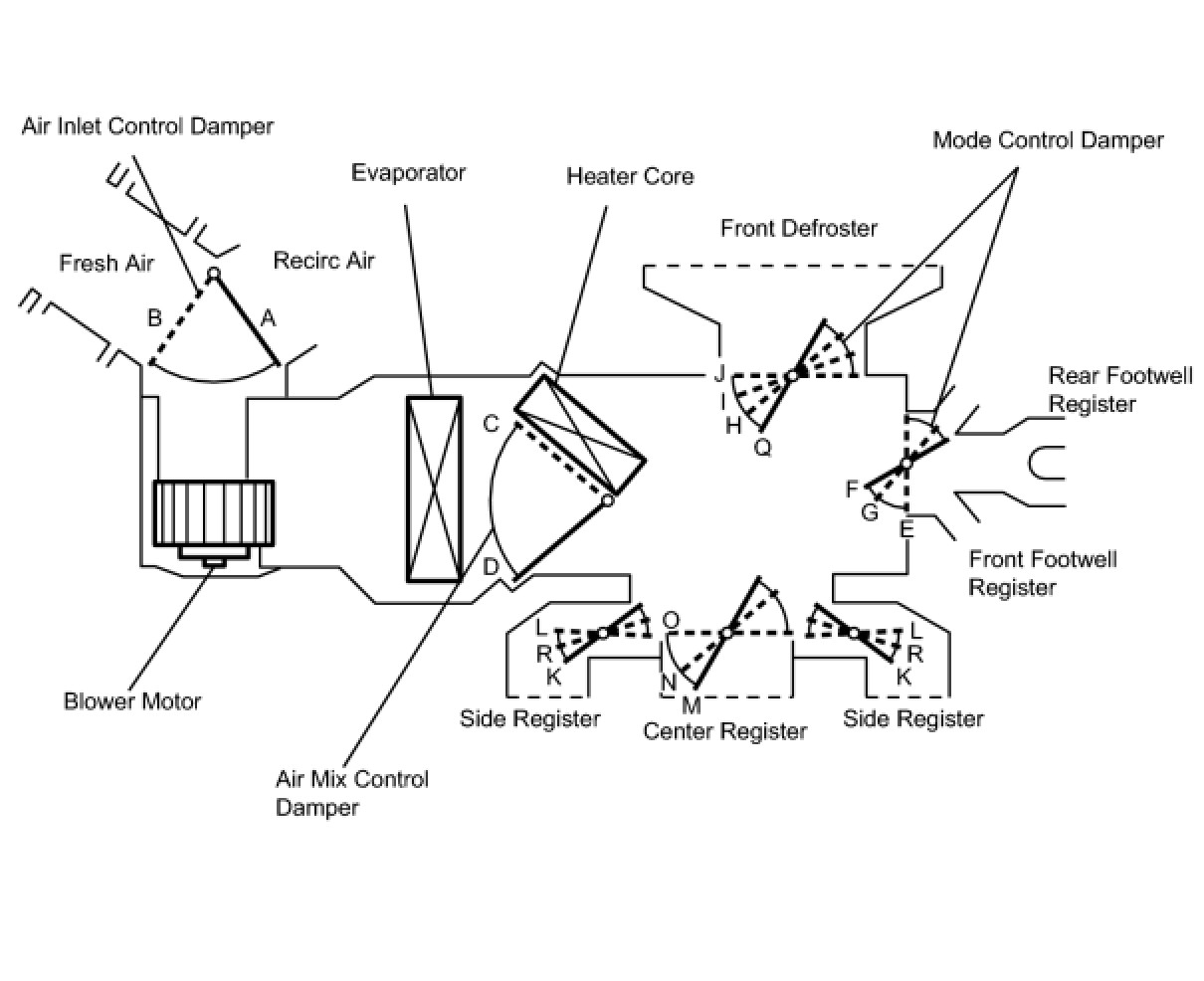

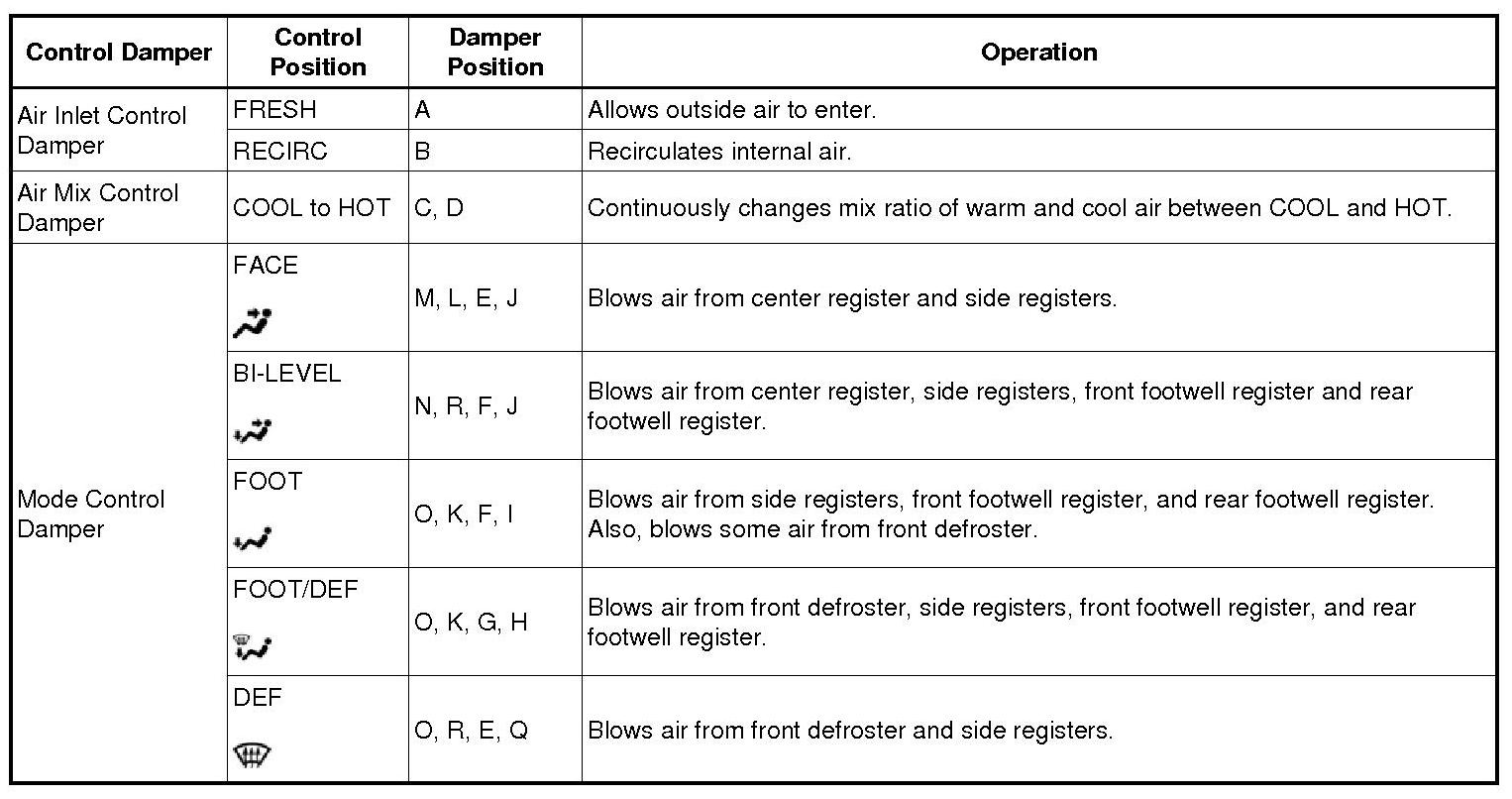

2. MODE POSITION AND DAMPER OPERATION

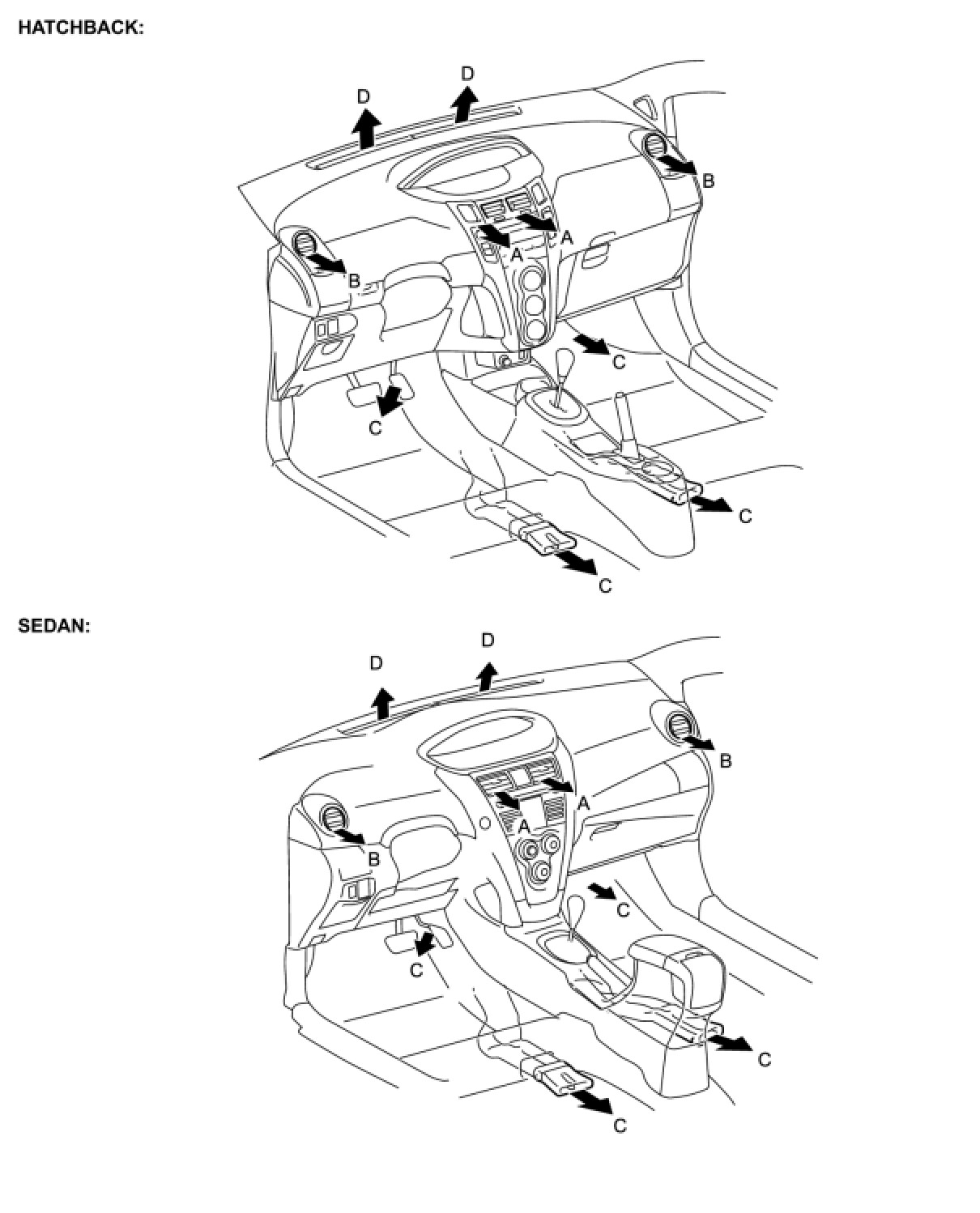

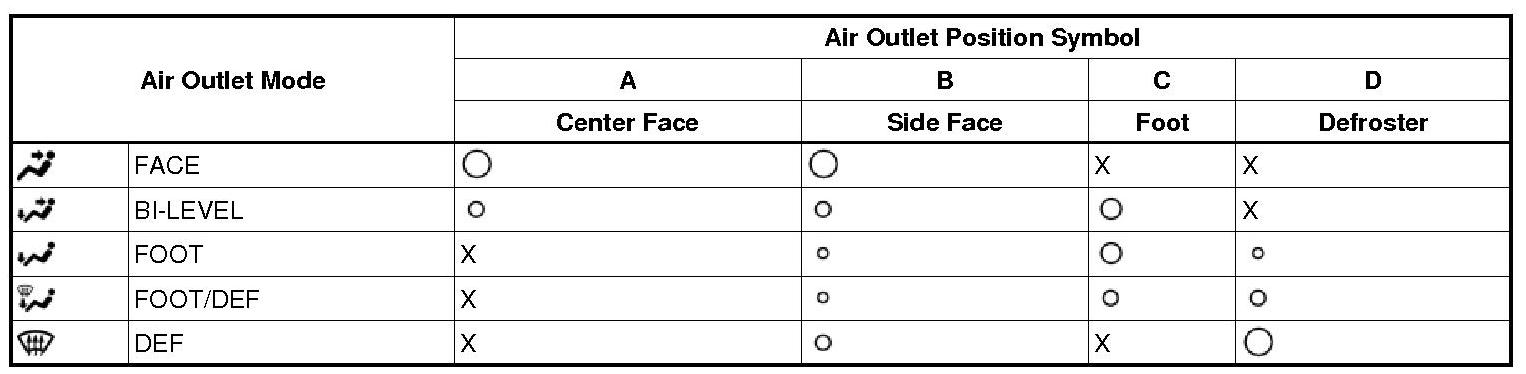

3. AIR OUTLET AND AIR FLOW VOLUME





The circle size (o) indicates the proportion of the flow volume.
