Components








AIR CONDITIONING: AIR CONDITIONING UNIT (for Hatchback): COMPONENTS

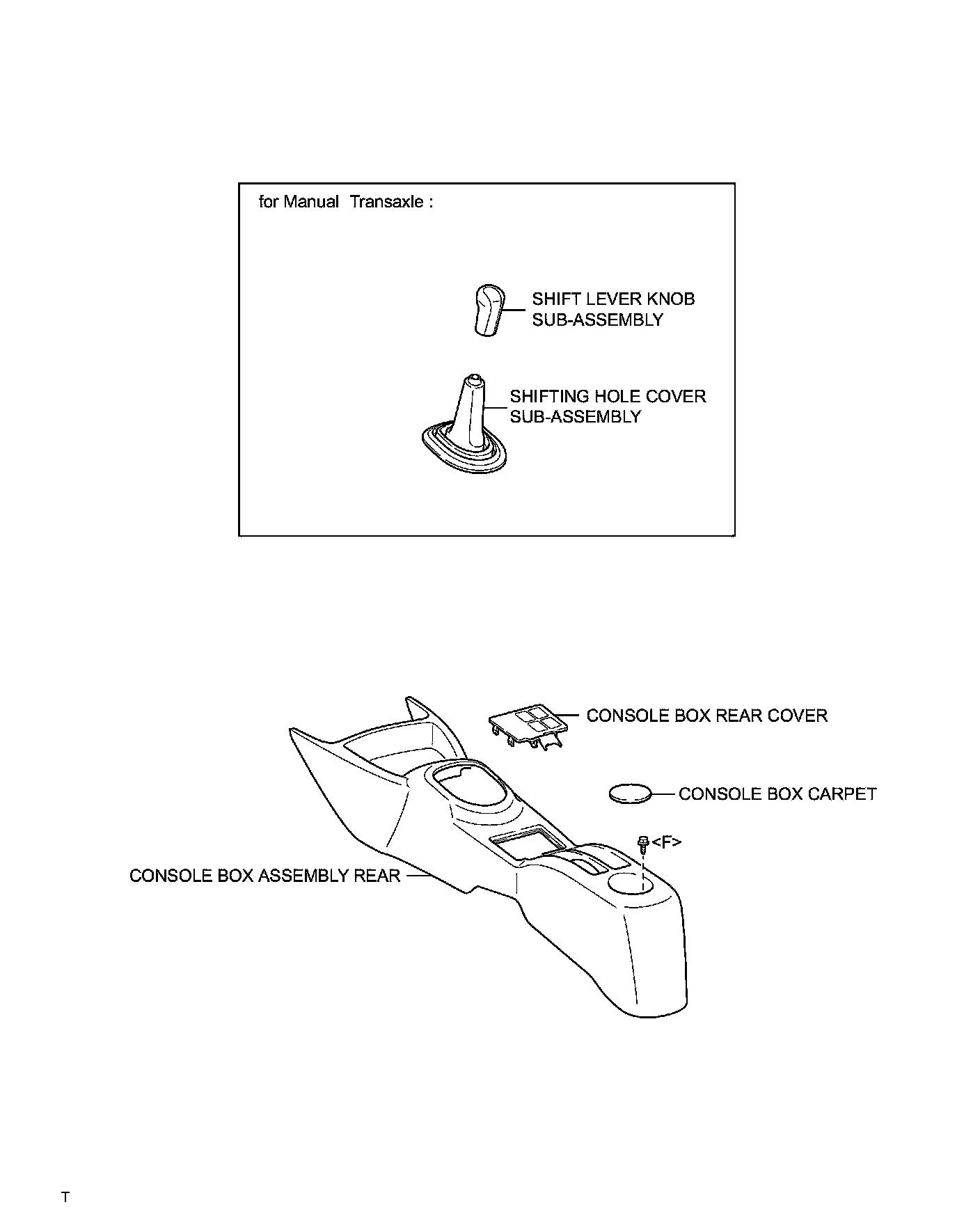

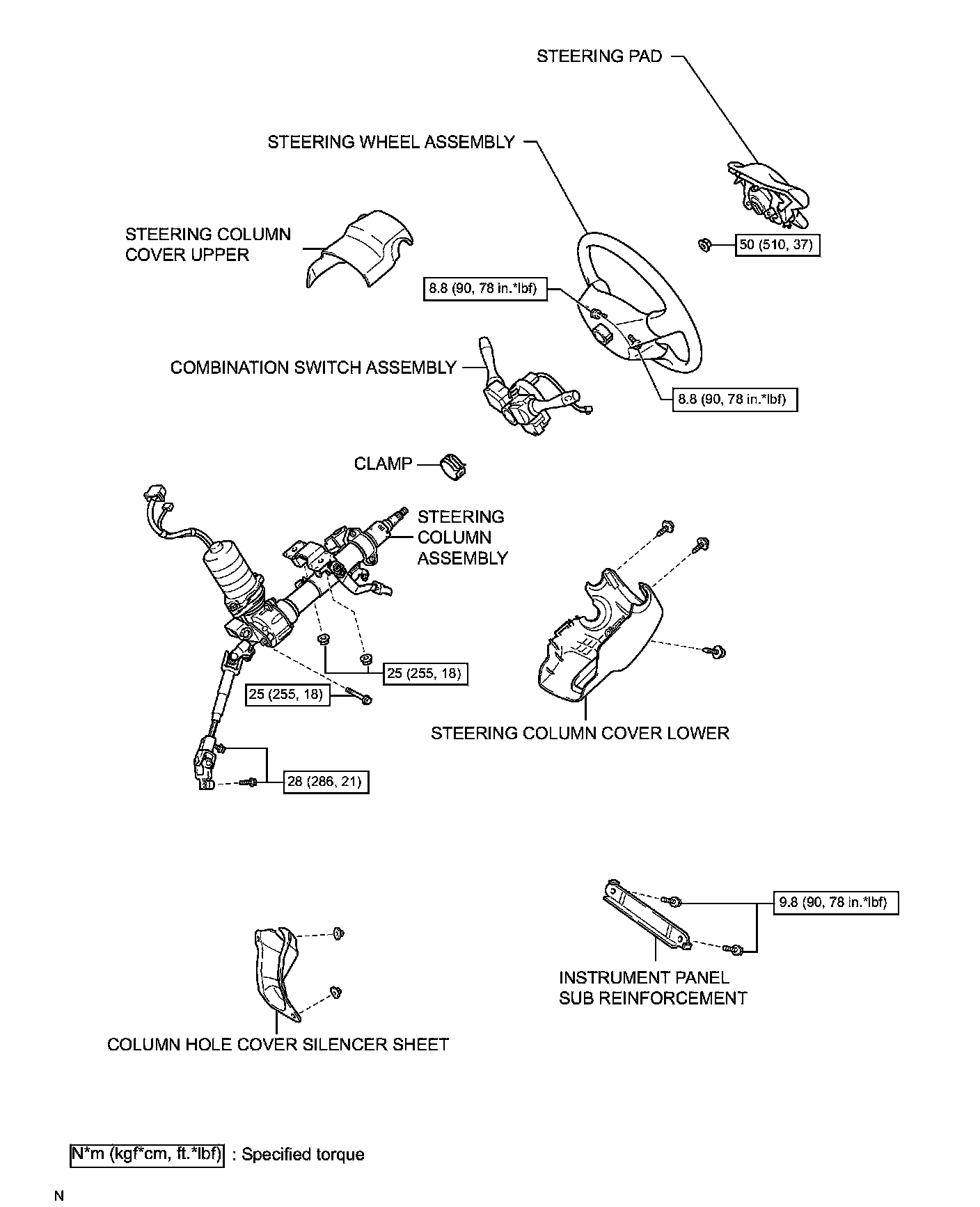

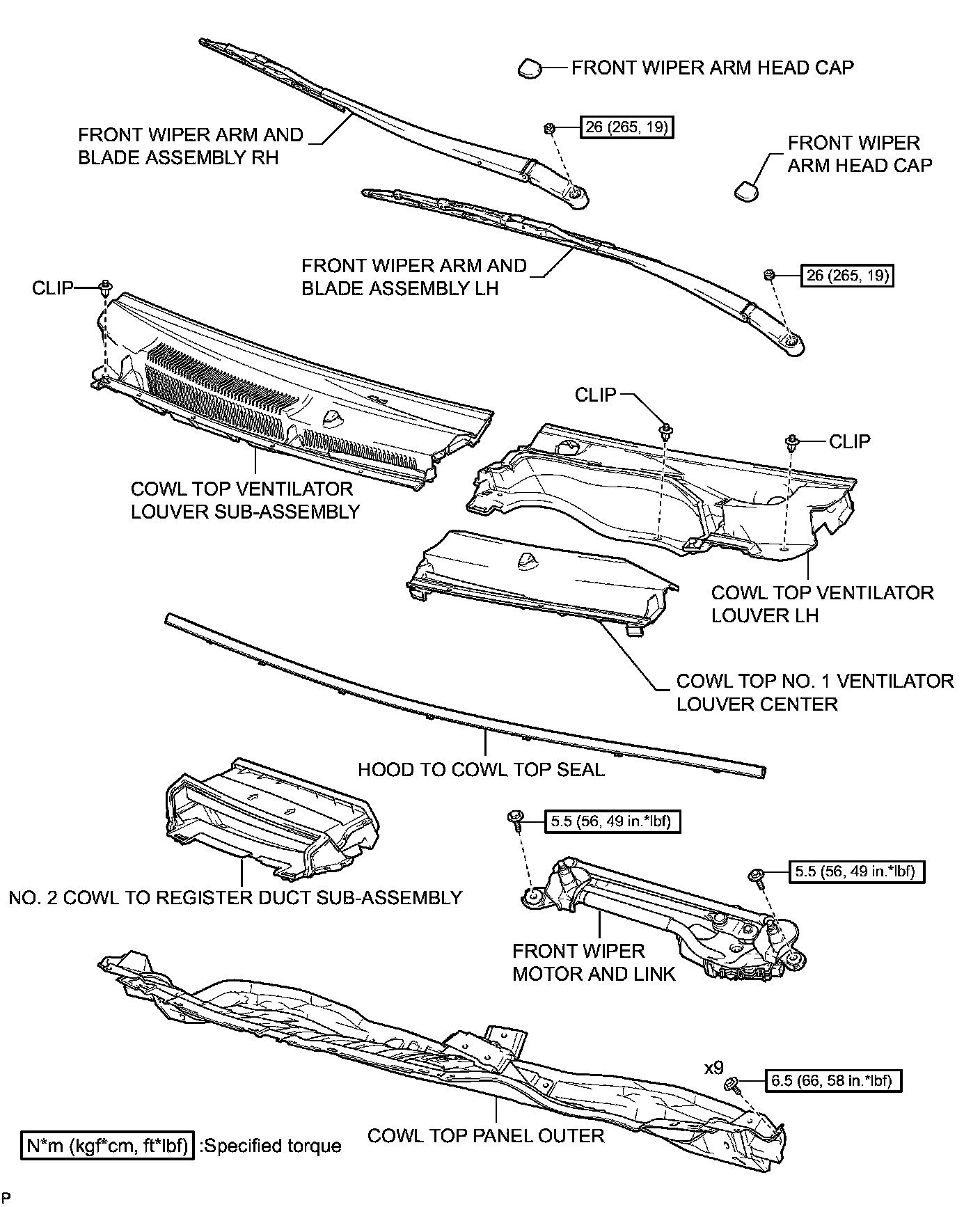

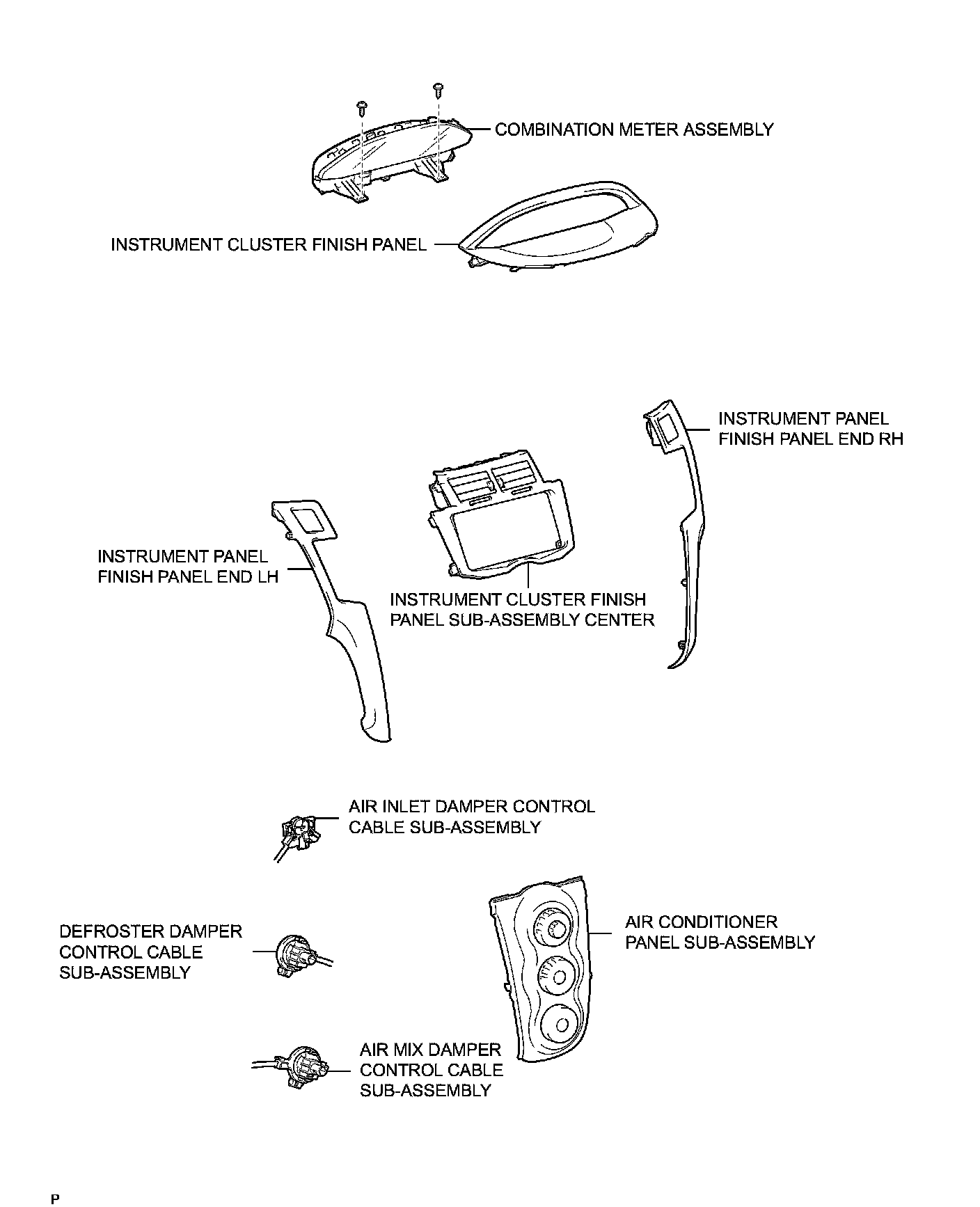

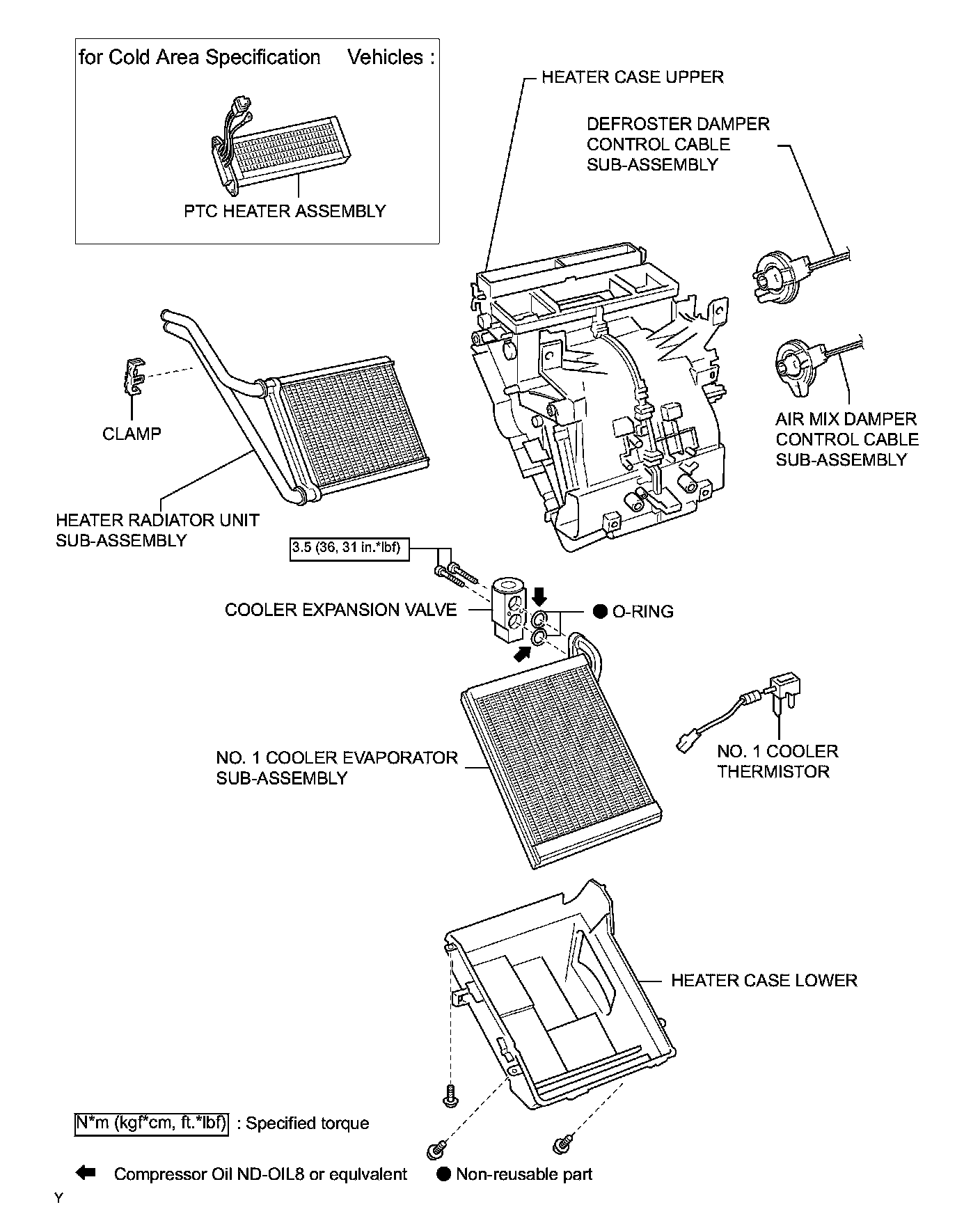

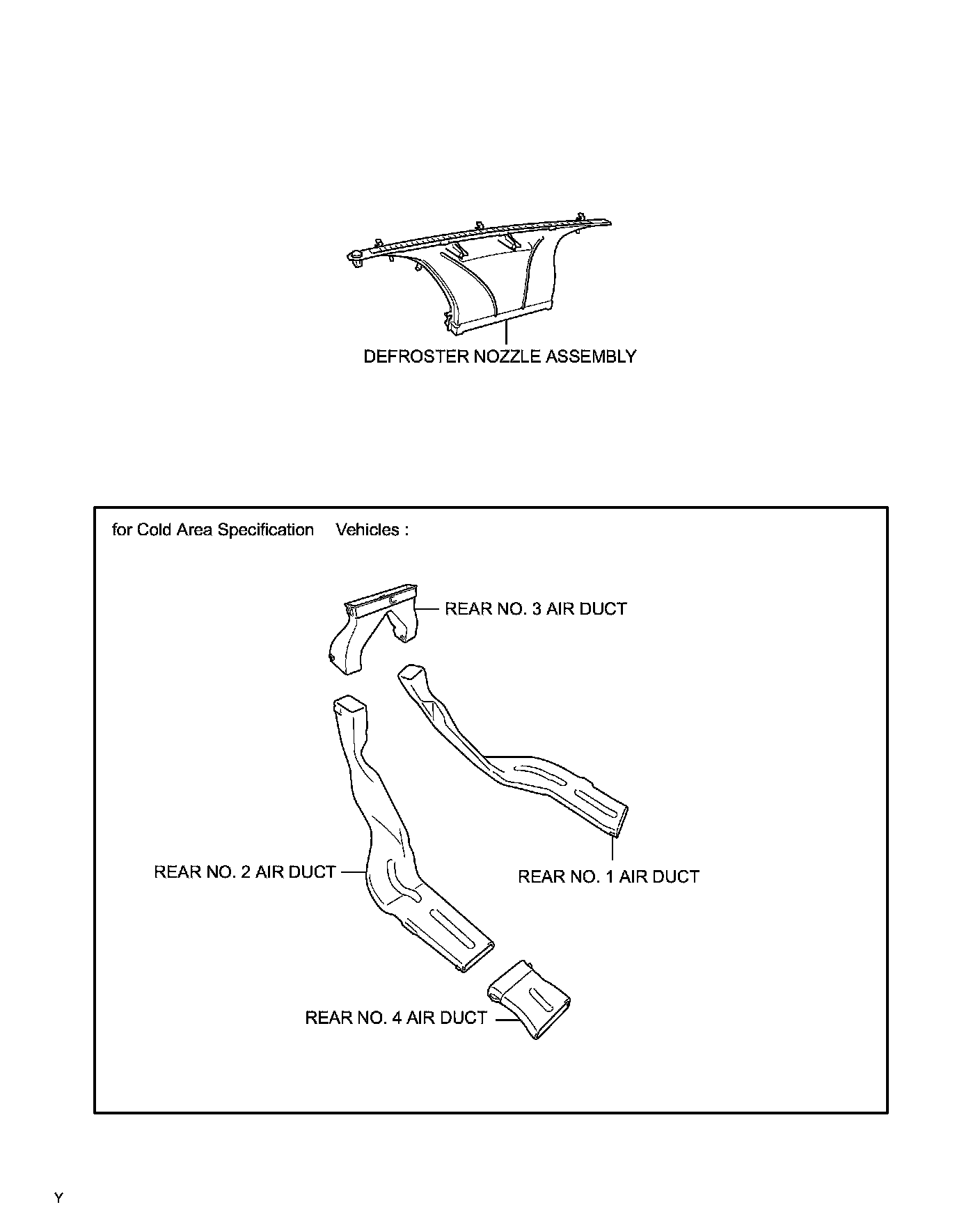

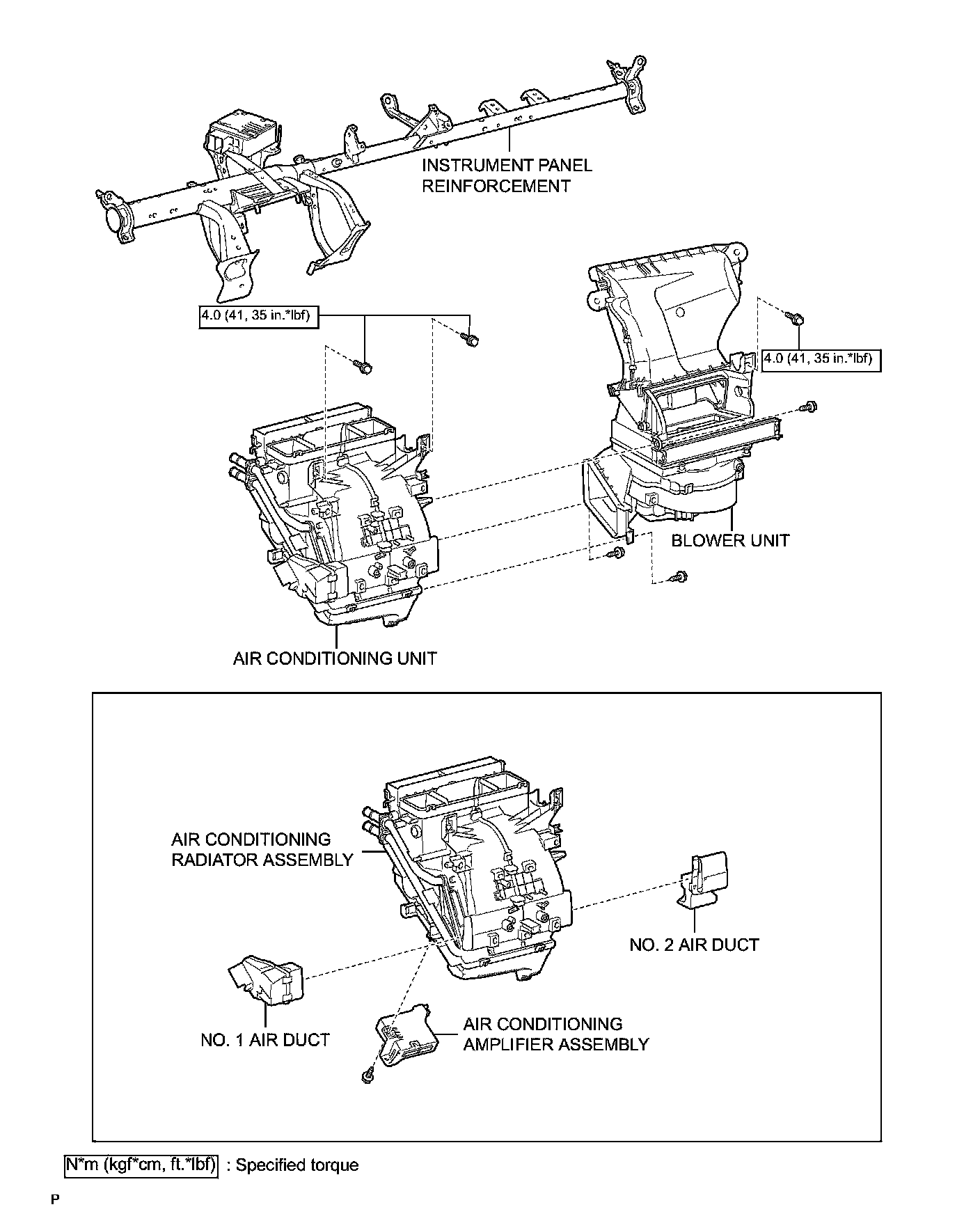

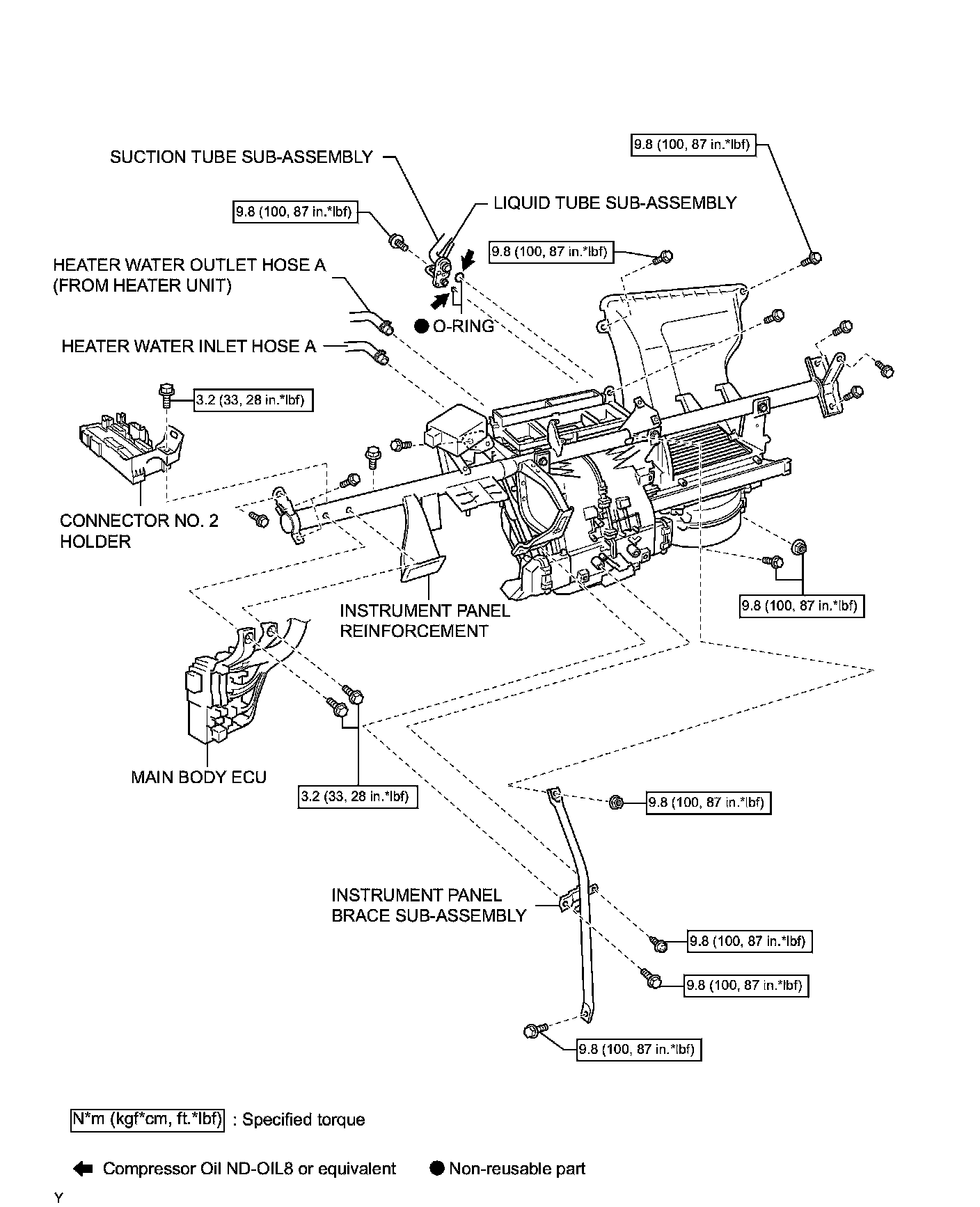

COMPONENTS

ILLUSTRATION
