Disassembly

AIR CONDITIONING: AIR CONDITIONING UNIT (for Hatchback): DISASSEMBLY

DISASSEMBLY





1. REMOVE DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY
(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the defroster damper control cable.





2. REMOVE AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY
(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the air mix damper control cable.





3. REMOVE NO. 1 AIR DUCT
(a) Disengage the 3 claws and remove the air duct.





4. REMOVE NO. 2 AIR DUCT
(a) Disengage the 3 claws and remove the air duct.





5. REMOVE PTC HEATER ASSEMBLY (for Cold Area Specification Vehicles)
(a) Remove the 2 screws and the PTC heater.
6. REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY





(a) Disengage the 3 claws and remove the clamp.





(b) Remove the heater radiator unit from the air conditioner radiator assembly.





7. REMOVE COOLER EXPANSION VALVE
(a) Using a hexagon wrench 4, remove the 2 hexagon bolts and detach the cooler expansion valve.
(b) Remove the 2 O-rings from the cooler evaporator.
8. REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY





(a) Disengage the cooler thermistor connector.





(b) Remove the 3 screws.
(c) Disengage the 4 claws and remove the heater case lower.





(d) Remove the cooler evaporator.

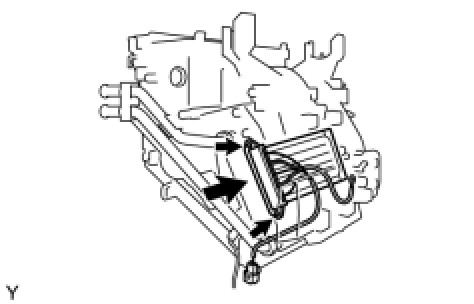

9. REMOVE NO. 1 COOLER THERMISTOR
(a) Remove the cooler thermistor from the cooler evaporator.
