Components








AIR CONDITIONING: AIR CONDITIONING UNIT (for Sedan): COMPONENTS

COMPONENTS

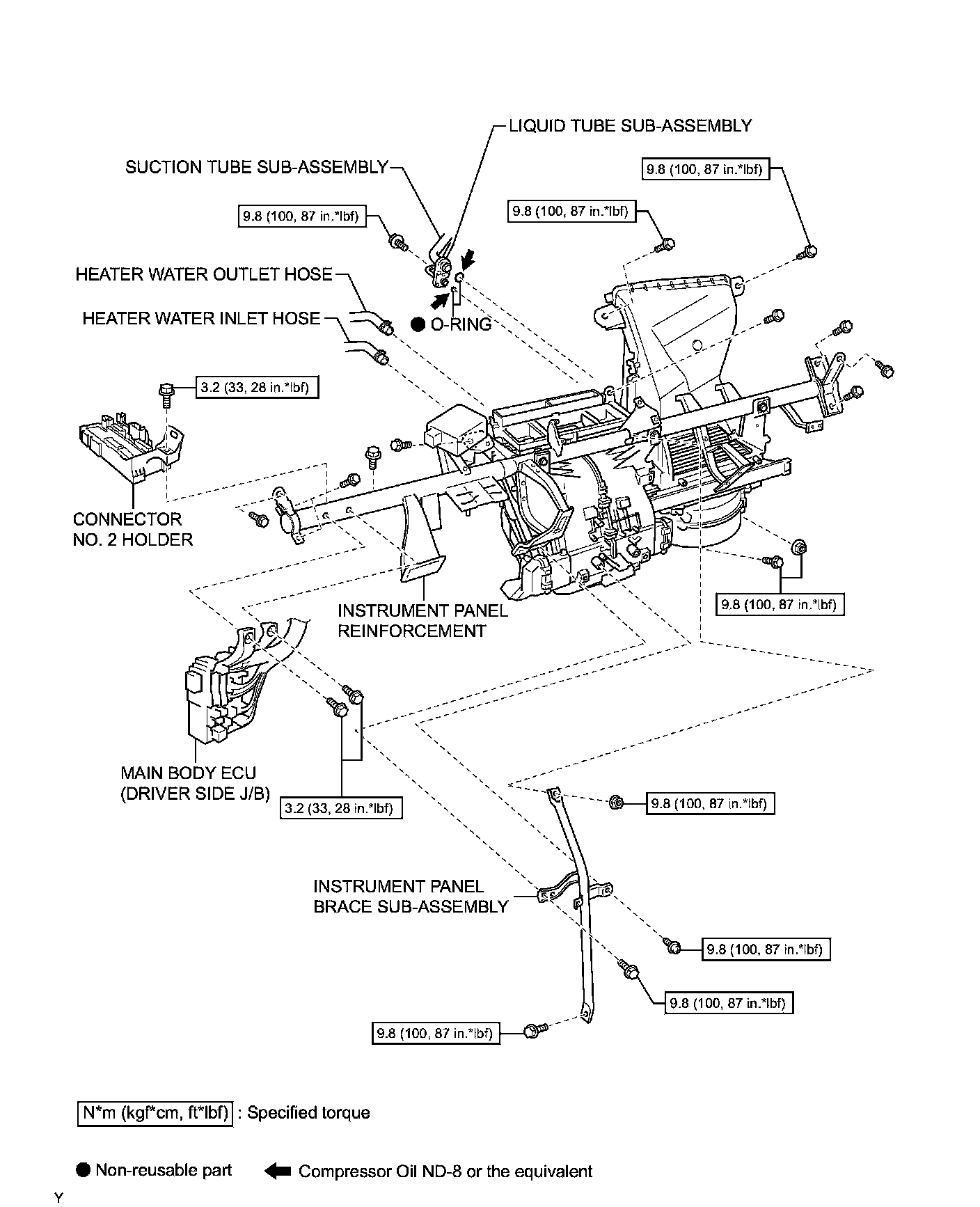

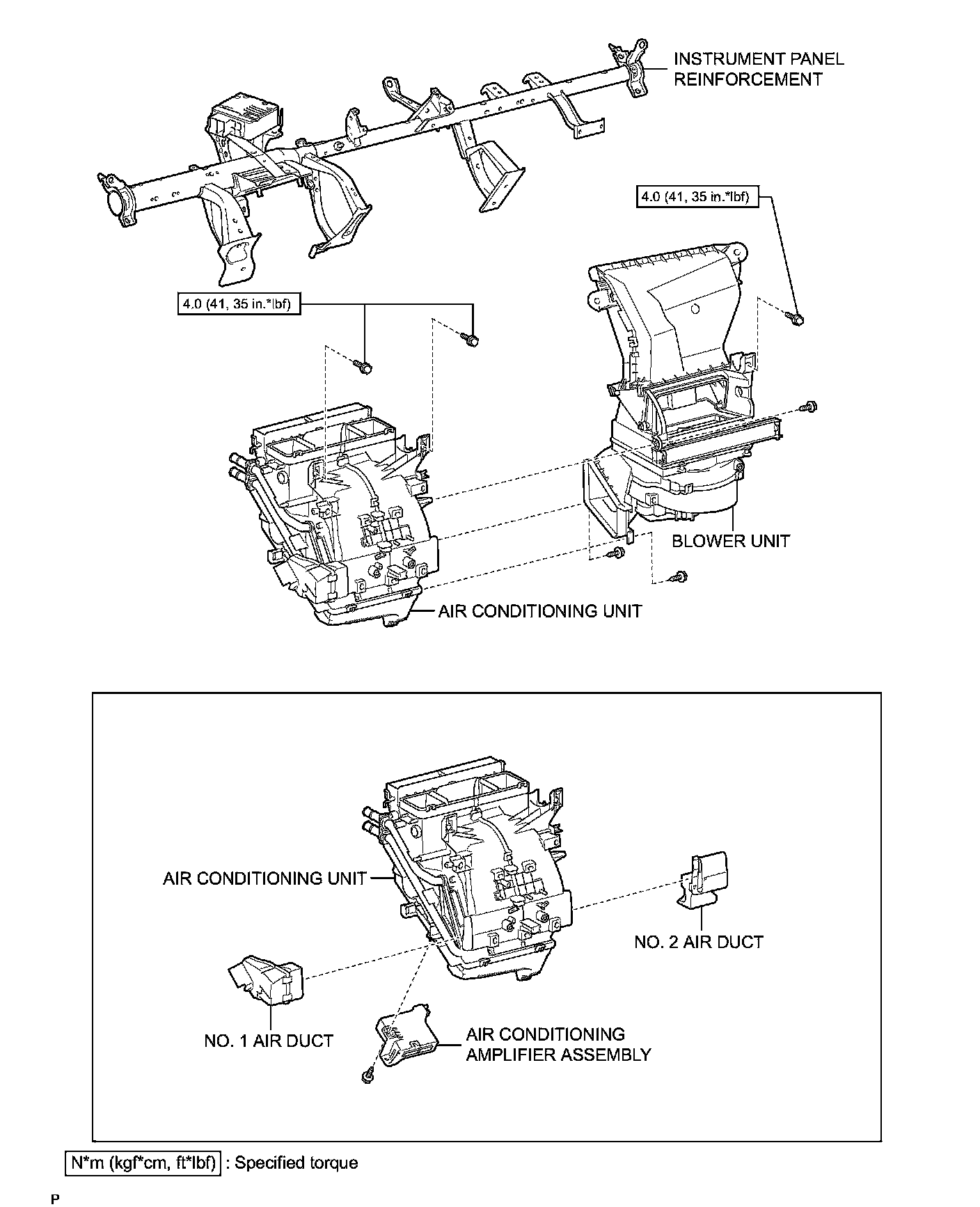

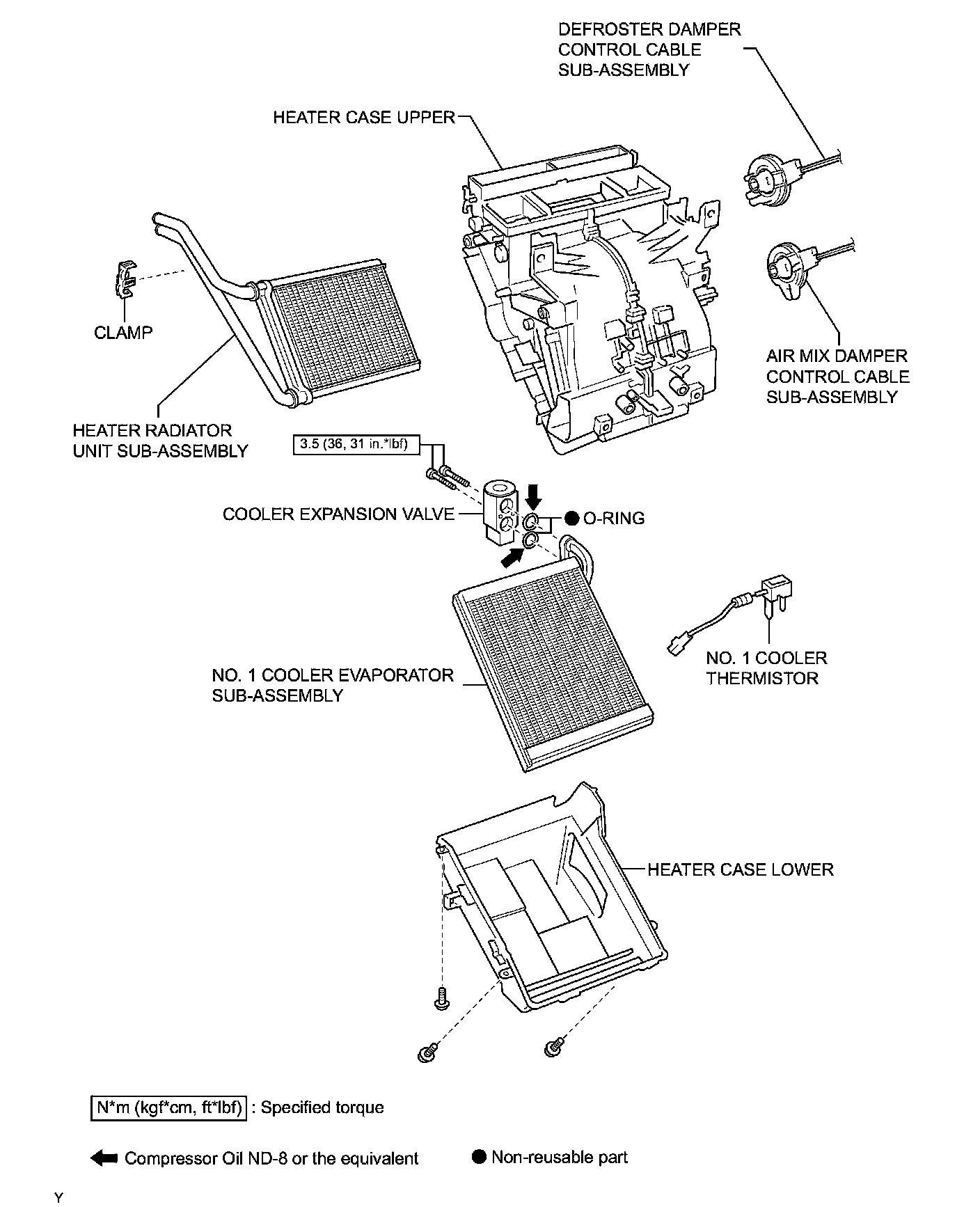

ILLUSTRATION
