Heating and Air Conditioning: Locations








AIR CONDITIONING: AIR CONDITIONING SYSTEM: PARTS LOCATION

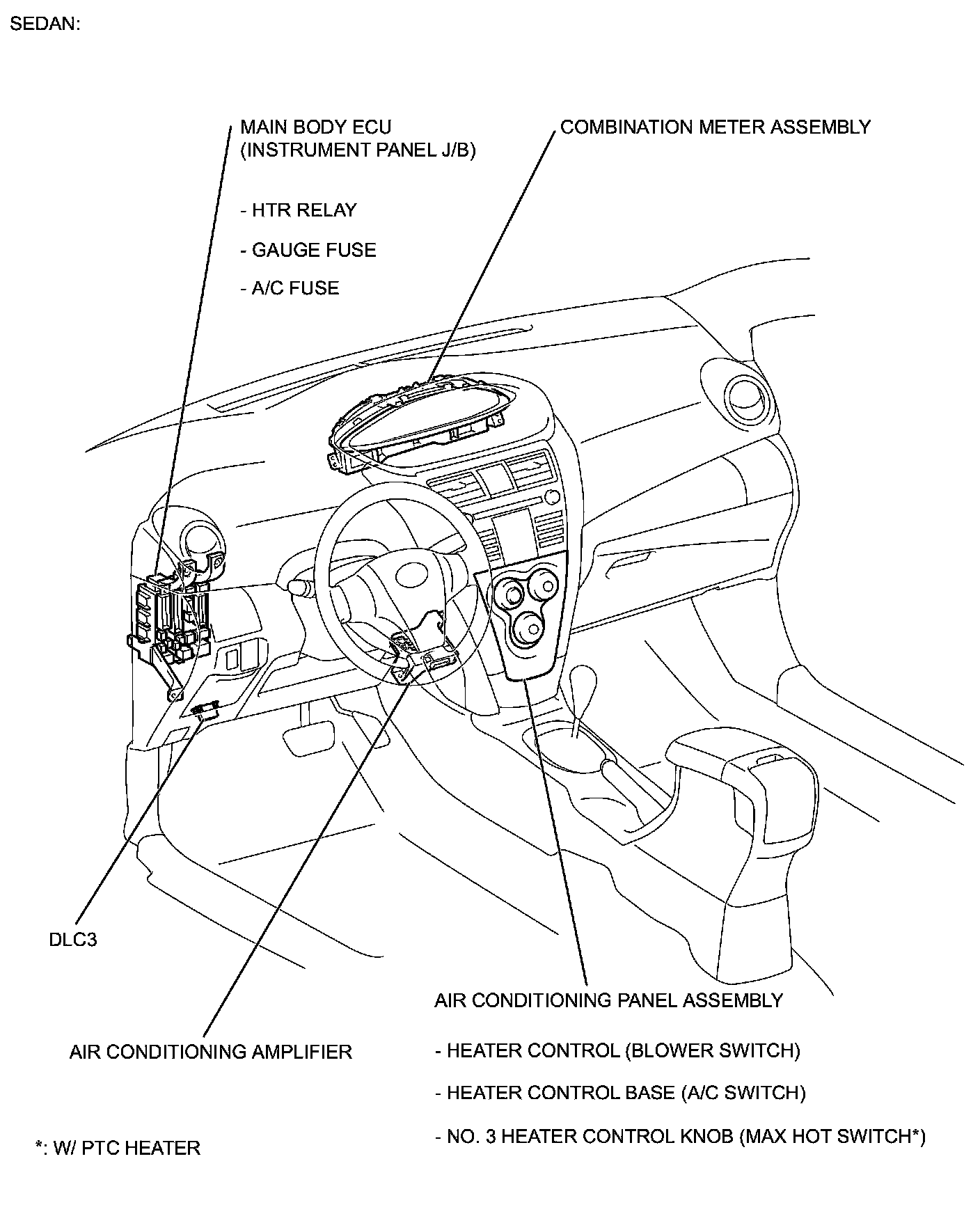

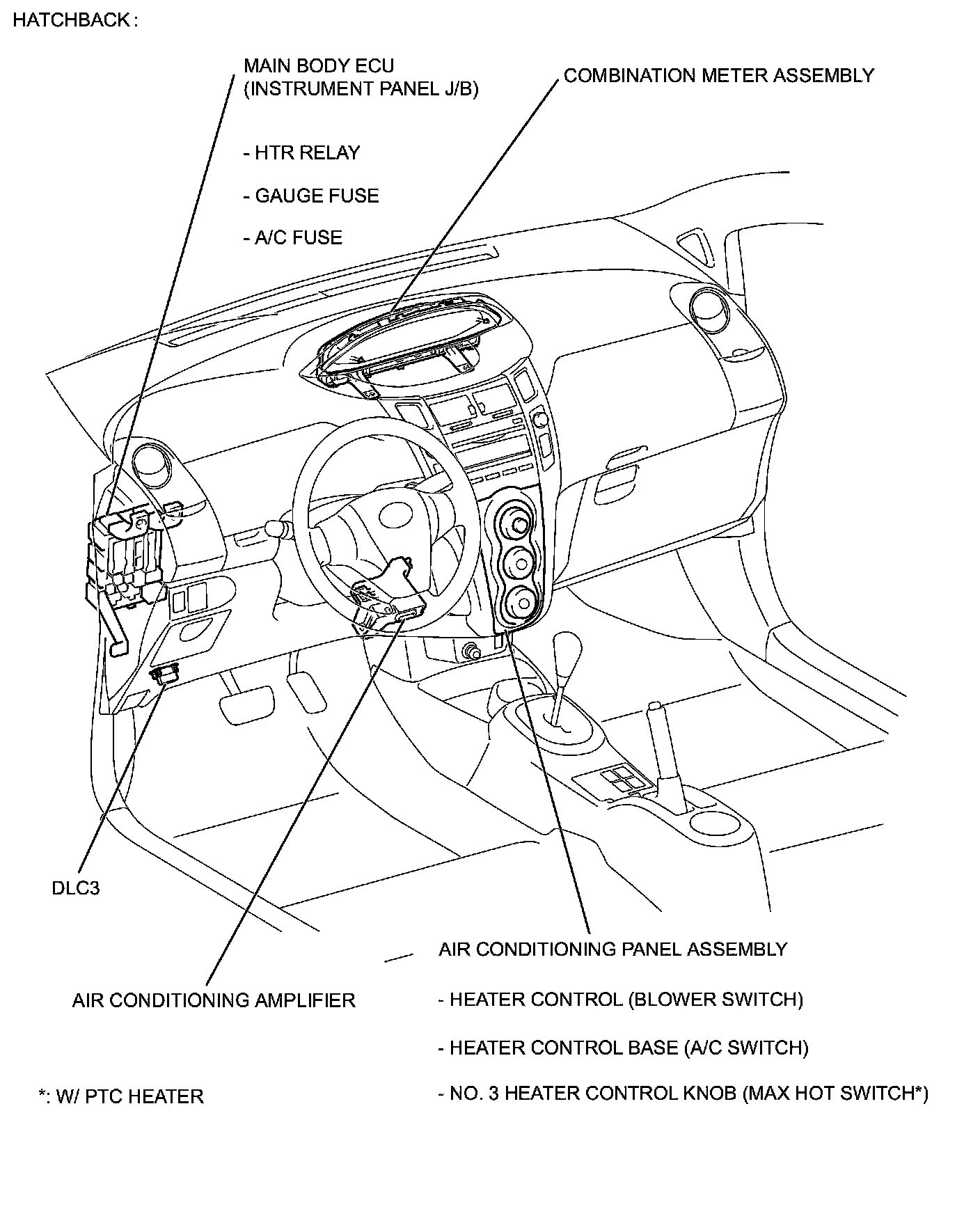

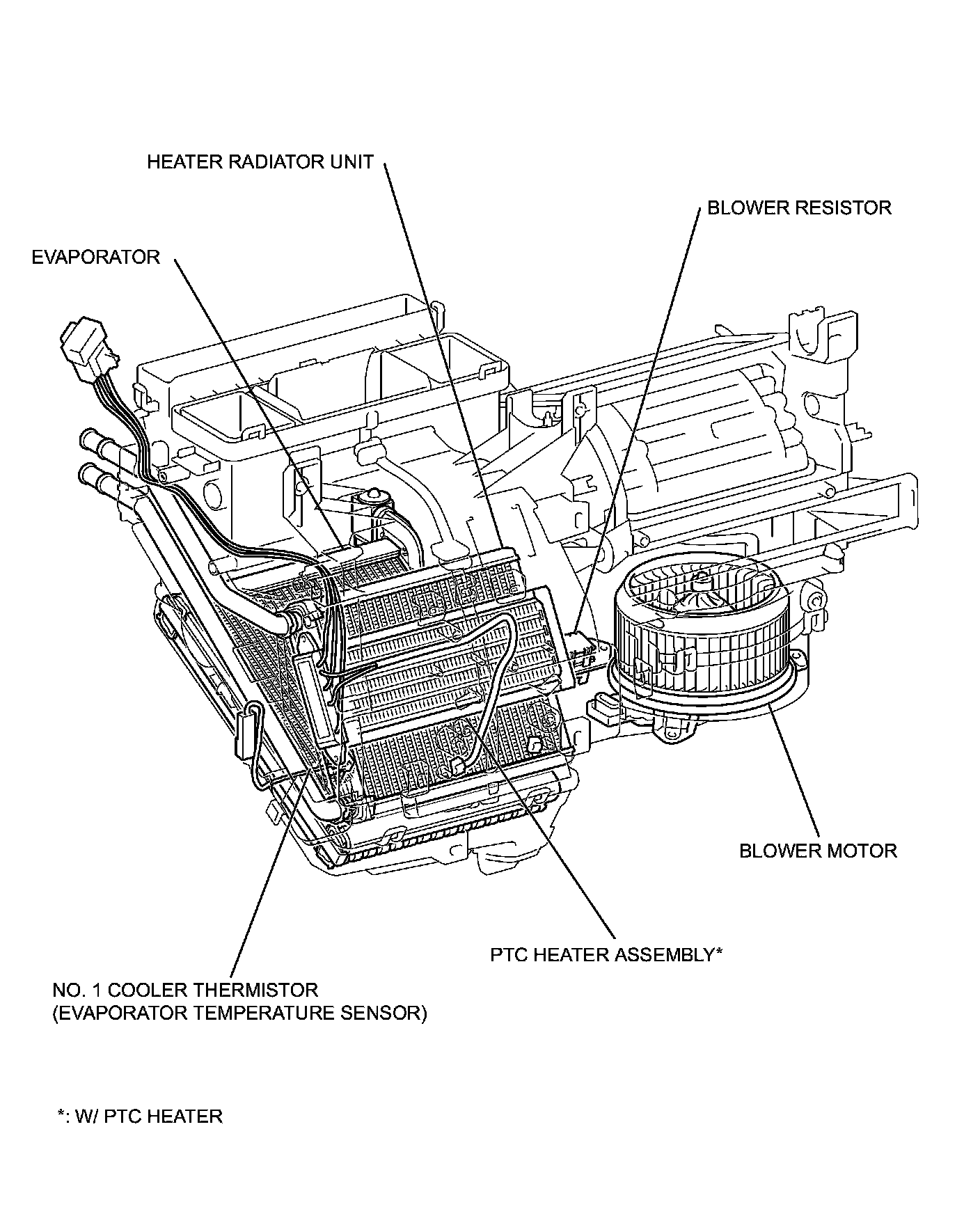

PARTS LOCATION

ILLUSTRATION
