Pinout Values and Diagnostic Parameters

AIR CONDITIONING: AIR CONDITIONING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

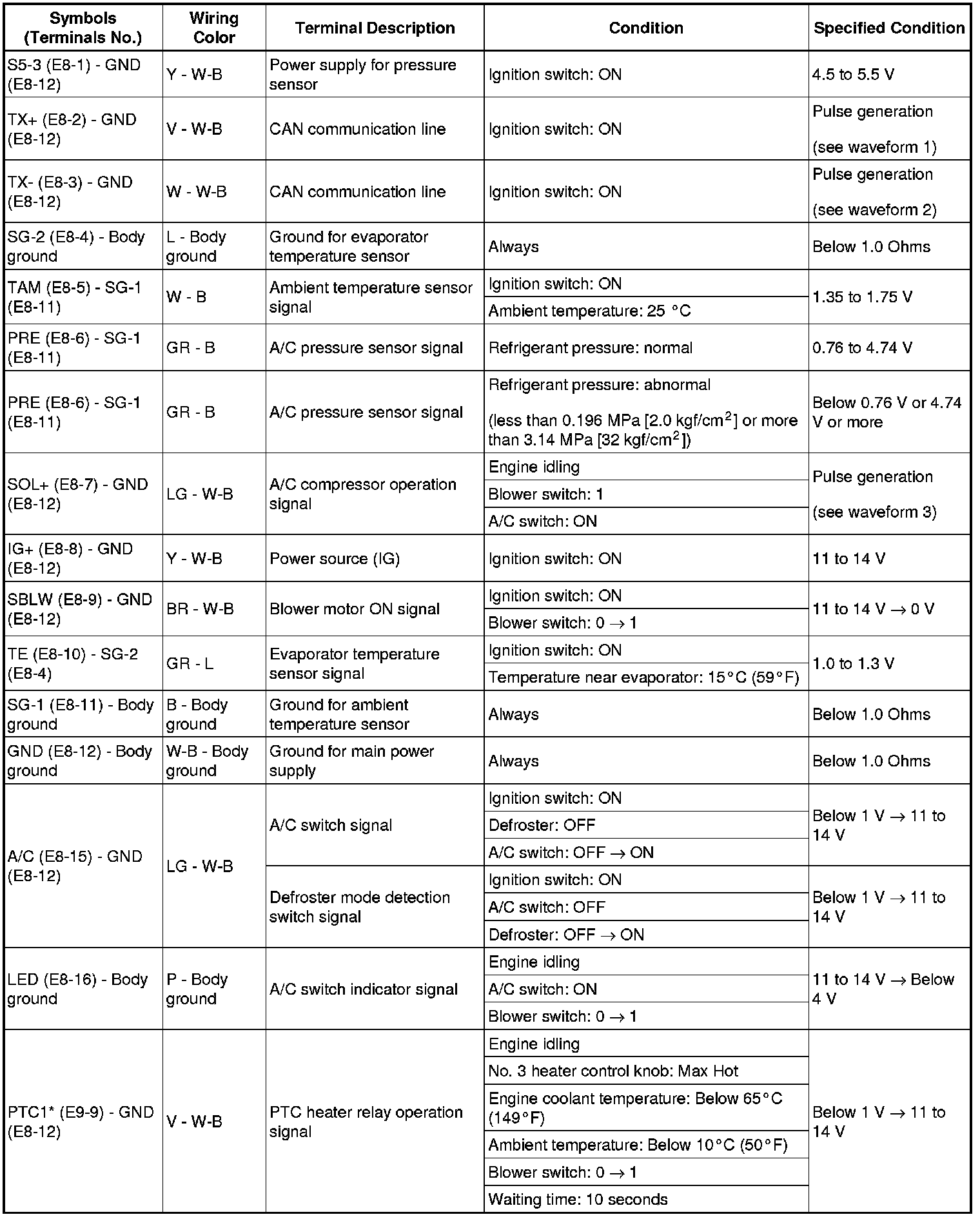

1. CHECK AIR CONDITIONING AMPLIFIER

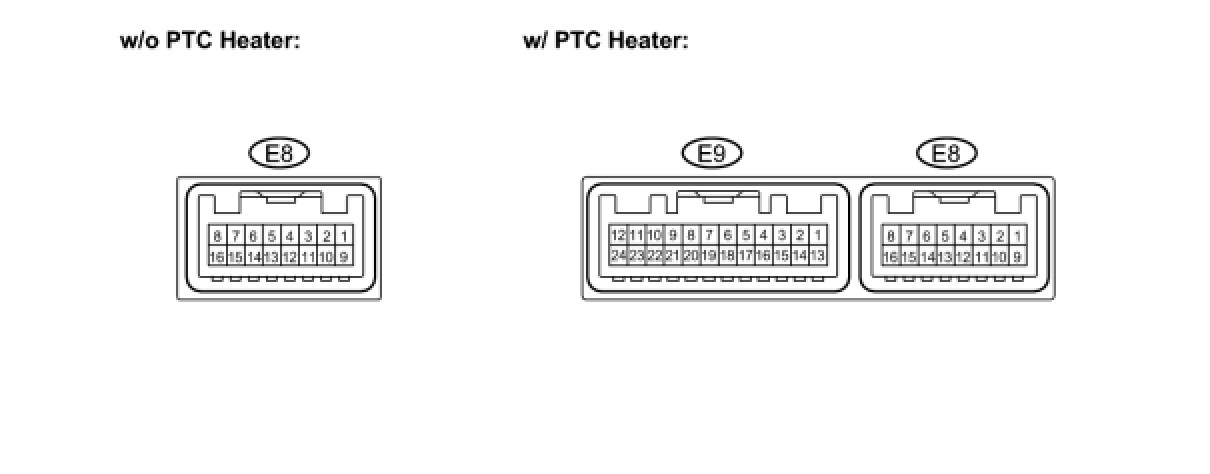

HINT: Check from the rear of the connector while it is connected to the air conditioning amplifier.

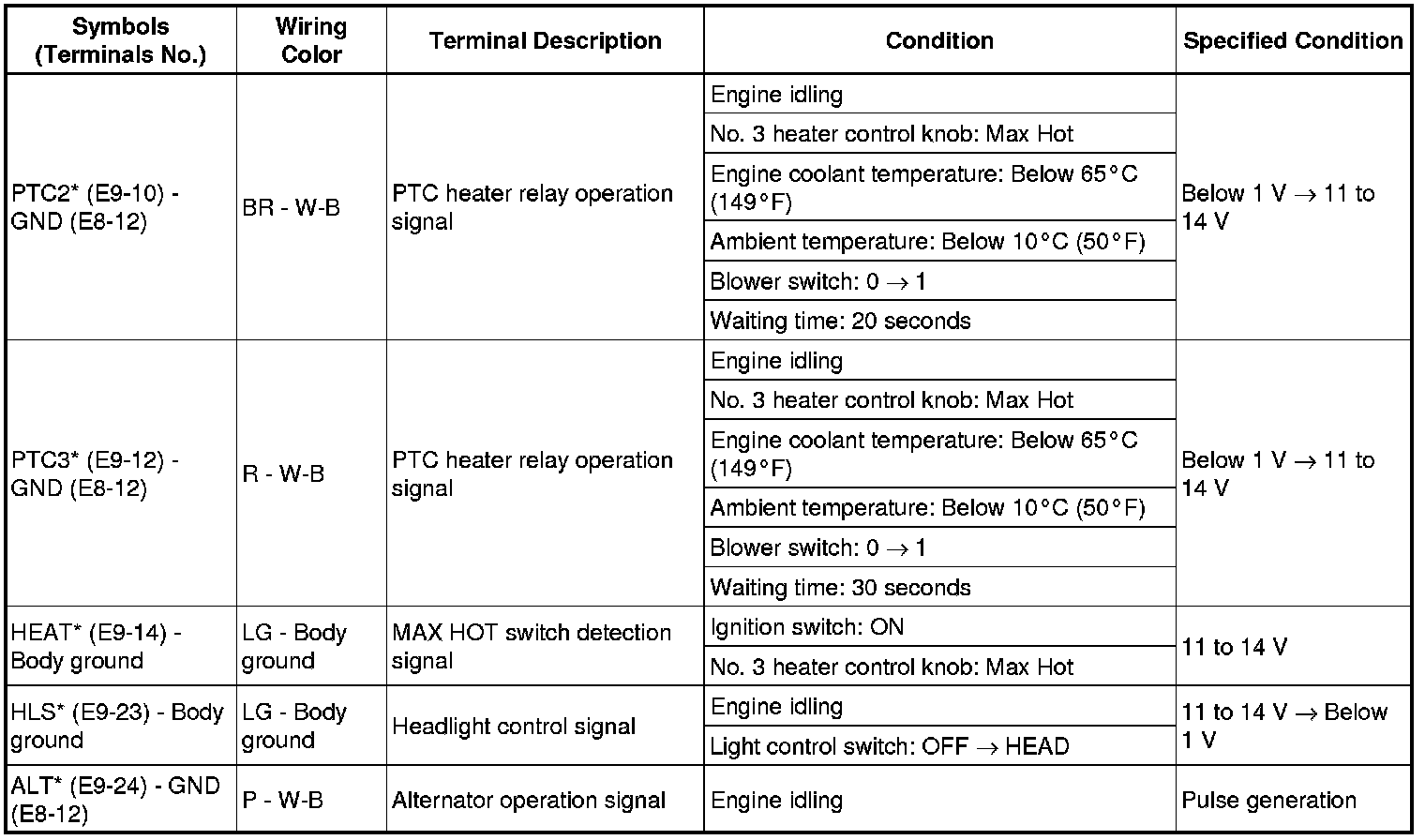

*: w/ PTC heater

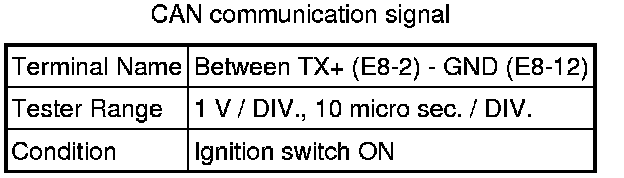

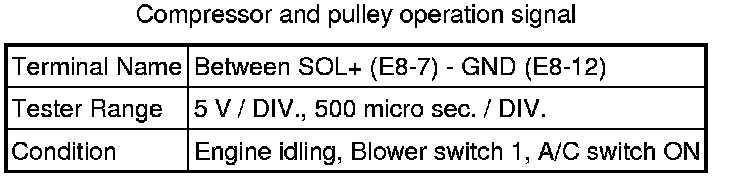

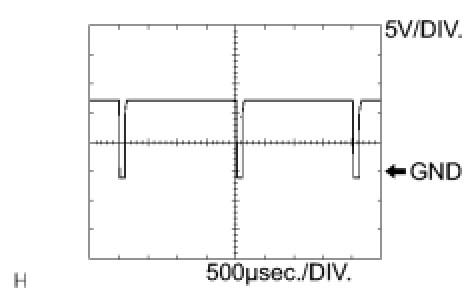

(a) Waveform 1 (Reference) : Using an oscilloscope

HINT: The waveform varies depending on the CAN communication signal.

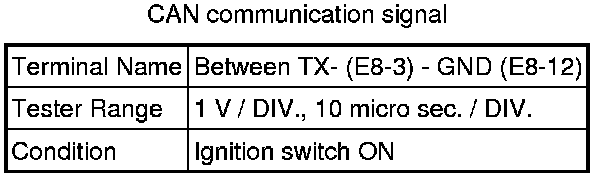

(b) Waveform 2 (Reference) : Using an oscilloscope

HINT: The waveform varies depending on the CAN communication signal.
