OTHER SYSTEM: CIGARETTE LIGHTER ASSEMBLY (for Sedan): INSTALLATION

INSTALLATION

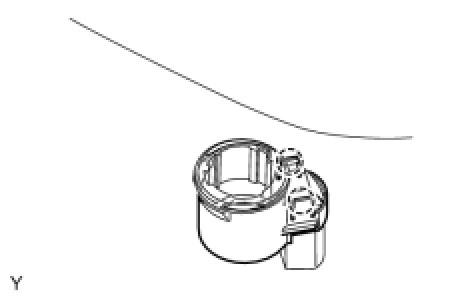

1. INSTALL CIGARETTE LIGHTER INDICATOR LENS
(a) Engage the 2 claws and install a new cigarette lighter indicator lens.

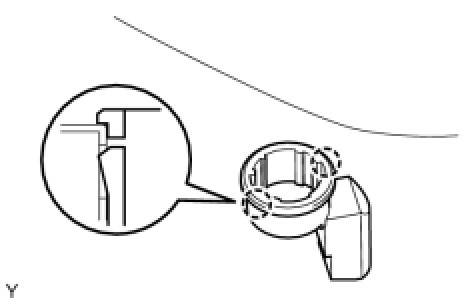

2. INSTALL CIGARETTE LIGHTER COVER





(a) Engage the 2 claws and install the cigarette lighter cover.

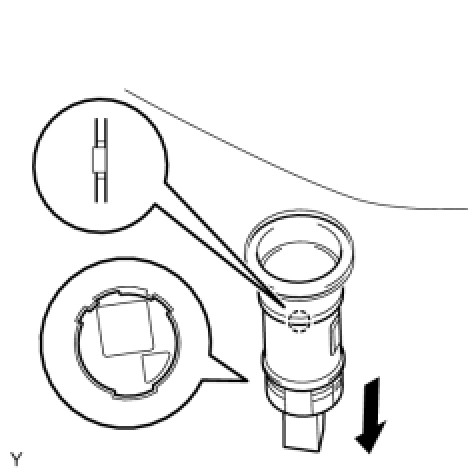

(b) Align the protrusion of the cigarette lighter socket with the cutout of the cigarette lighter indicator lens and install the cigarette lighter socket.
(c) Securely engage the claw.

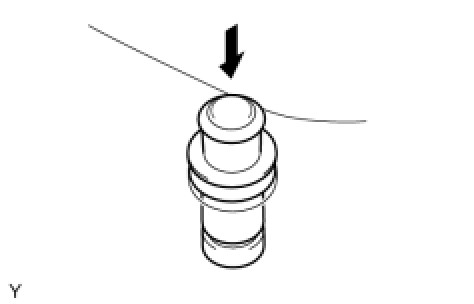

3. INSTALL CIGARETTE LIGHTER KNOB
(a) Install the cigarette lighter knob.
4. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY Installation
5. INSTALL CONSOLE UPPER FRONT PANEL SUB-ASSEMBLY Installation
6. INSTALL SHIFT LEVER KNOB (for Manual Transaxle) Installation
7. INSTALL INSTRUMENT PANEL FINISH LOWER CENTER PANEL Installation
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
