Installation

INSTRUMENT PANEL: LOWER INSTRUMENT PANEL (for Hatchback): INSTALLATION

INSTALLATION





1. INSTALL INSTRUMENT CLUSTER FINISH PANEL SEAL
(a) Engage the 5 claws and install the panel seal.





2. INSTALL NO. 2 INSTRUMENT PANEL BOX
(a) Install the instrument panel box with the 2 [A] screws.





3. INSTALL NO. 1 INSTRUMENT PANEL BOX
(a) Install the instrument panel box with the 2 [A] screws.





4. INSTALL INSTRUMENT PANEL BOX SPRING
(a) Install the instrument panel box spring with screw [A].





5. INSTALL FRONT PANEL SEAL
(a) Install the front panel seal.





6. INSTALL LIGHT CONTROL RHEOSTAT
(a) Engage the 2 claws and install the light control rheostat.





7. INSTALL OUTER MIRROR SWITCH ASSEMBLY
(a) Engage the 2 claws and install the outer mirror switch.
8. INSTALL POWER OUTLET SOCKET COVER Installation
9. INSTALL POWER OUTLET SOCKET ASSEMBLY Installation
10. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

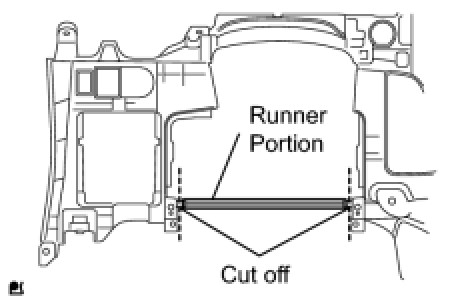

(a) Using a nipper, cut off both ends of the runner portion shown in the illustration (When installing a new one).
(b) Apply butyl tape to install a new instrument panel pad lower onto the instrument panel lower (When installing a new one).
Adhesive:
Part No. 08850-00065, Butyl Tape Set or the equivalent
(c) Install the lower instrument panel with the 5 [D] bolts, 2 [E] bolts, screw [G] and screw [H].
NOTE: Do not excessively tighten the [D] bolts, otherwise, it may damage the area not being tightened.

(d) Connect the clamps and connectors.









(e) Engage the 2 claws to connect the DLC3 connector.





11. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
(a) Engage the 3 claws to connect the control lever.





12. CONNECT ANTENNA CORD SUB-ASSEMBLY
(a) Connect the 2 antenna cord clamps.





13. INSTALL NO. 6 HEATER TO REGISTER DUCT ASSEMBLY
(a) Engage the 4 claws and install the heater to register duct.





14. INSTALL INSTRUMENT PANEL BOX

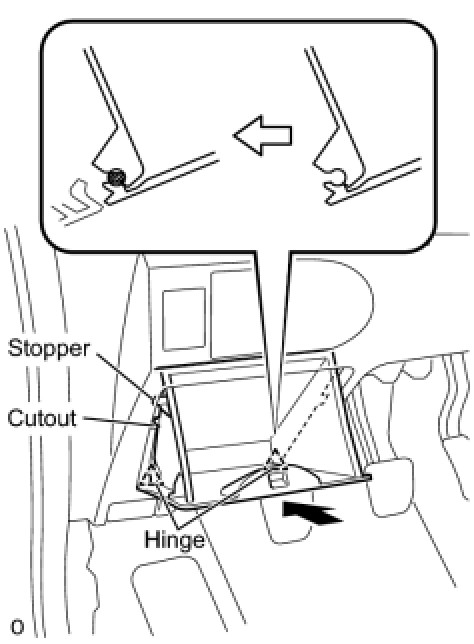

(a) Insert the stopper of the instrument panel box from the cutout of the instrument panel lower.
(b) Engage the hinges with the instrument panel open.
(c) Close the instrument panel box.
15. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER





(a) Install the 2 [A] screws.

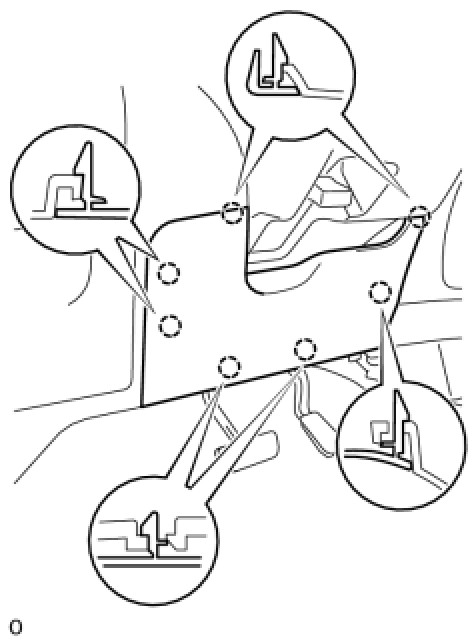

(b) Engage the 7 claws and install the instrument panel finish panel lower.





16. INSTALL CONSOLE BOX ASSEMBLY REAR
(a) Engage the 2 clips and install the console box rear.
(b) Install bolt [F].





17. INSTALL CONSOLE BOX CARPET
(a) Install the console box carpet.





18. INSTALL CONSOLE BOX REAR COVER
(a) Engage the 8 claws and install the console box rear cover.





19. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY (for Manual Transaxle)
(a) Engage the 6 claws and install the shifting hole cover.

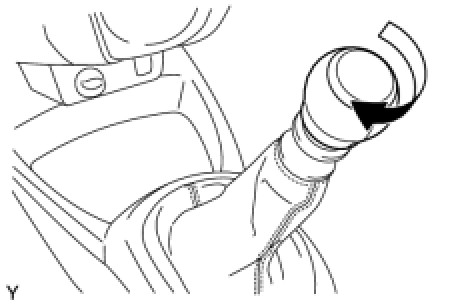

20. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
(a) Install the shift lever knob.
21. INSTALL COWL SIDE TRIM BOARD RH Installation
22. INSTALL COWL SIDE TRIM BOARD LH Installation
23. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH Installation
24. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH Installation
25. INSTALL FRONT DOOR SCUFF PLATE RH Installation
26. INSTALL FRONT DOOR SCUFF PLATE LH Installation
27. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation
28. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
29. INSTALL NO. 1 SWITCH HOLE BASE Installation
30. INSTALL FRONT PILLAR GARNISH RH Installation
31. INSTALL FRONT PILLAR GARNISH LH Installation
32. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
33. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
34. CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY Installation
35. CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY Installation
36. CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY Installation
37. INSTALL AIR CONDITIONER PANEL SUB-ASSEMBLY Installation
38. INSTALL RADIO TUNER OPENING COVER (w/o Radio Receiver) Installation
39. INSTALL RADIO RECEIVER ASSEMBLY Installation
40. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER Installation
41. INSTALL COMBINATION METER ASSEMBLY Installation
42. INSTALL INSTRUMENT CLUSTER FINISH NO.1 PANEL Installation
43. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
44. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
45. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
46. CHECK SRS WARNING LIGHT
Diagnosis System
