INSTRUMENT PANEL: LOWER INSTRUMENT PANEL (for Sedan): INSTALLATION

INSTALLATION

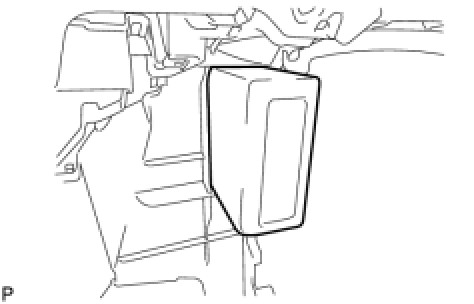

1. INSTALL INSTRUMENT PANEL NO. 1 SAFETY PAD
(a) Apply butyl tape to install the instrument panel safety pad No. 1 onto the instrument panel lower (When installing a new one).
Adhesive:
Part No. 08850-00065, Butyl Tape Set or the equivalent

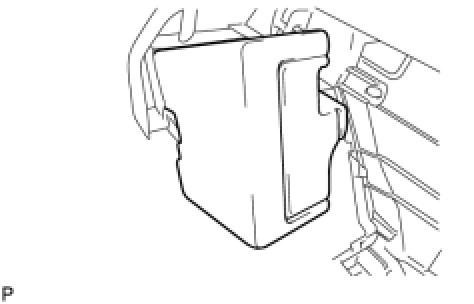

2. INSTALL INSTRUMENT PANEL NO. 2 SAFETY PAD
(a) Apply butyl tape to install the instrument panel safety pad No. 2 onto the instrument panel lower (When installing a new one).
Adhesive:
Part No. 08850-00065, Butyl Tape Set or the equivalent

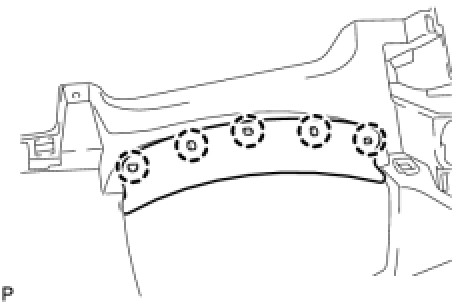

3. INSTALL INSTRUMENT CLUSTER FINISH PANEL SEAL
(a) Engage the 5 claws and install the panel seal.

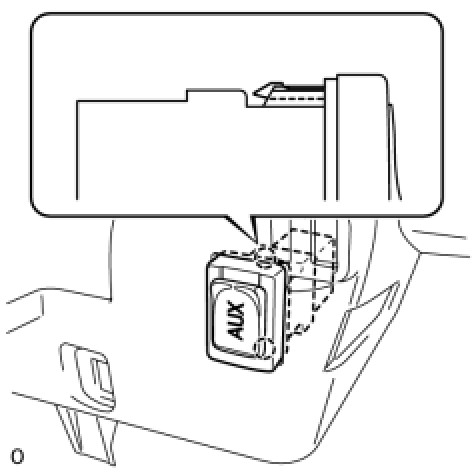

4. INSTALL STEREO JACK ADAPTER ASSEMBLY
(a) Engage the 2 claws and install the stereo jack adapter.

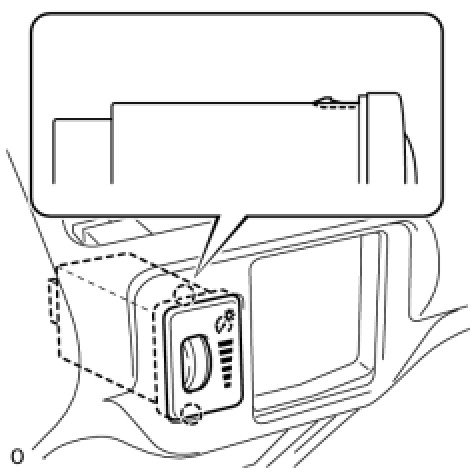

5. INSTALL LIGHT CONTROL RHEOSTAT
(a) Engage the 2 claws and install the light control rheostat.

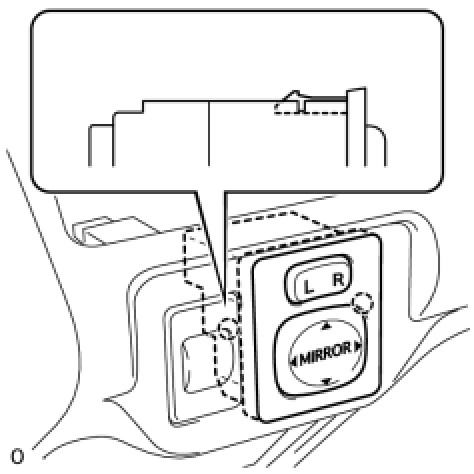

6. INSTALL OUTER MIRROR SWITCH ASSEMBLY
(a) Engage the 2 claws and install the outer mirror switch.

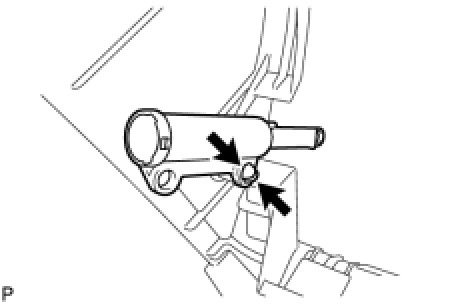

7. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
(a) Engage the claw and install the glove compartment door stopper.

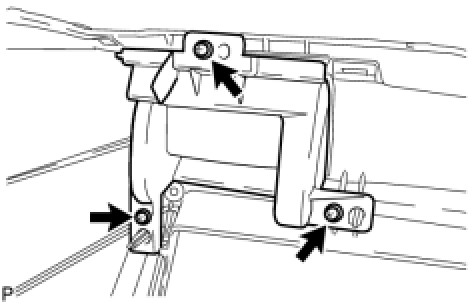

8. INSTALL INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY LH
(a) Install the instrument panel cup holder with the 3 [A] screws.

9. INSTALL INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY RH
(a) Install the instrument panel cup holder with the 3 [A] screws.
10. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

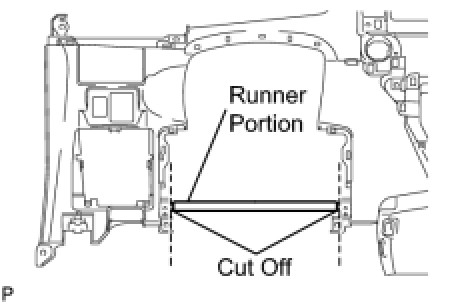

(a) Using a nipper, cut off both ends of the runner portion shown in the illustration (When installing a new one).

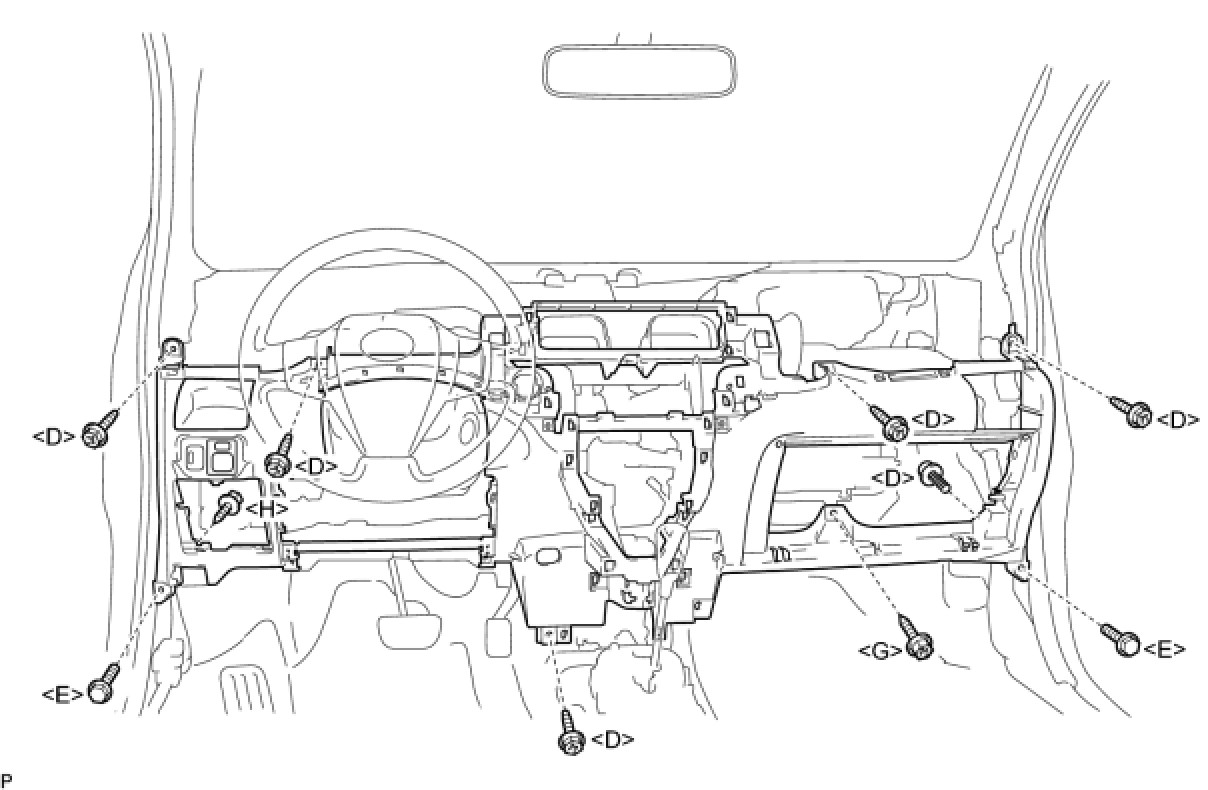

(b) Install the lower instrument panel with the 6 [D] bolts, 2 [E] bolts, screw [G] and screw [H].
NOTE: Do not excessively tighten the [D] bolts, as this may damage the area not being tightened.

(c) Connect the clamps and connectors.

(d) Engage the 2 claws and connect the DLC3 connector.

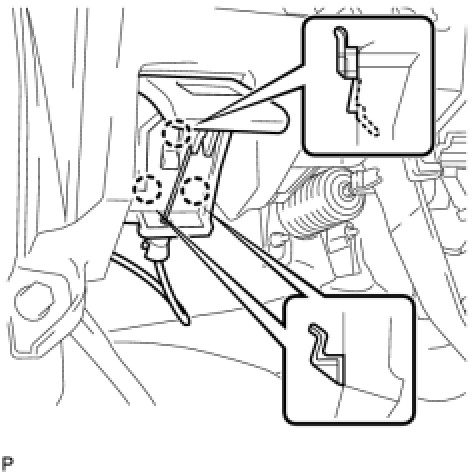

11. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
(a) Engage the 3 claws to connect the control lever.

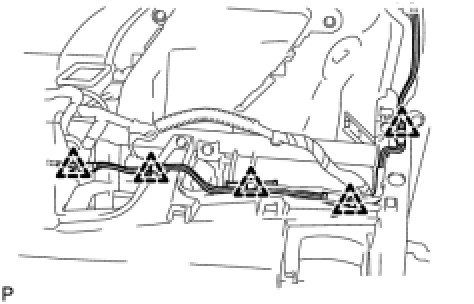

12. CONNECT ANTENNA CORD SUB-ASSEMBLY

(a) Connect the 5 antenna cord clamps.

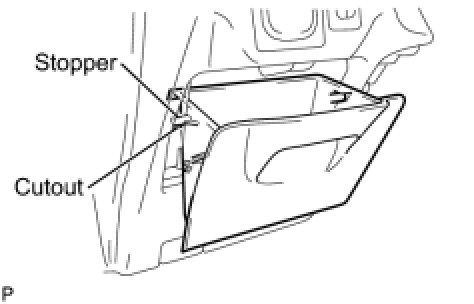

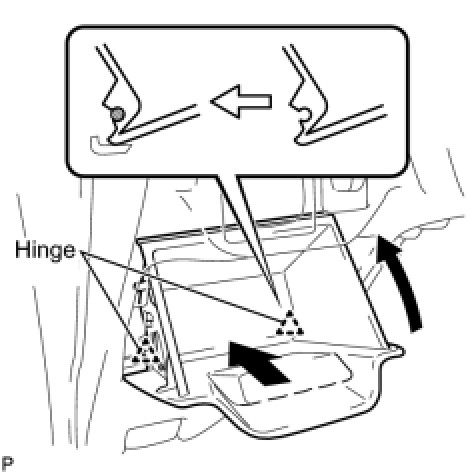

13. INSTALL INSTRUMENT PANEL BOX

(a) Insert the stopper of the instrument panel box from the cutout of the instrument panel lower.

(b) Engage the 2 hinges with the instrument panel open.
(c) Close the instrument panel box.

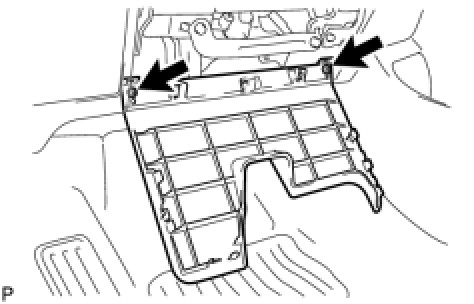

14. INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY

(a) Install the 2 [A] screws.

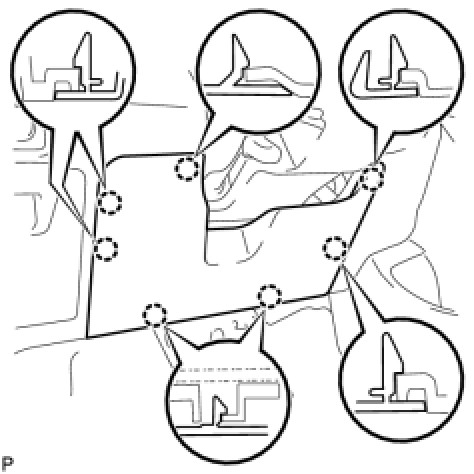

(b) Engage the 7 claws and install the instrument panel lower finish panel.

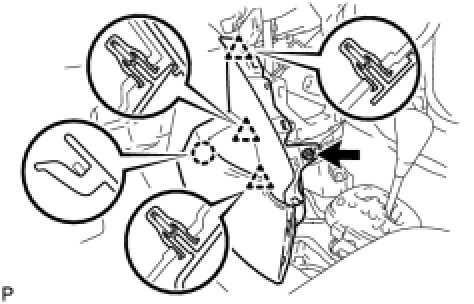

15. INSTALL INSTRUMENT PAD LOWER RH

(a) Engage the claw and 3 clips and install the instrument pad lower.
(b) Install screw [I].

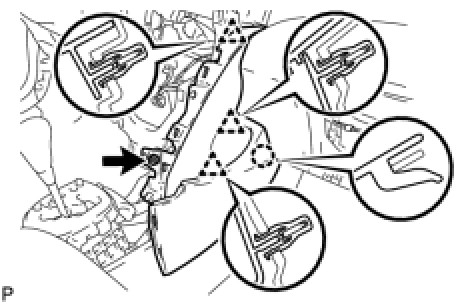

16. INSTALL INSTRUMENT PAD LOWER LH

(a) Engage the claw and 3 clips and install the instrument pad lower.
(b) Install screw [I].
17. INSTALL REAR CONSOLE BOX ASSEMBLY Installation
18. INSTALL CONSOLE BOX CARPET Installation
19. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY Installation
20. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
21. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
22. INSTALL COWL SIDE TRIM BOARD RH Installation
23. INSTALL COWL SIDE TRIM BOARD LH Installation
24. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH Installation
25. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH Installation
26. INSTALL FRONT DOOR SCUFF PLATE RH Installation
27. INSTALL FRONT DOOR SCUFF PLATE LH Installation
28. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation
29. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
30. INSTALL FRONT PILLAR GARNISH RH Installation
31. INSTALL FRONT PILLAR GARNISH LH Installation
32. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
33. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
34. CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY Installation
35. CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY Installation
36. CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY Installation
37. INSTALL AIR CONDITIONING PANEL ASSEMBLY Installation

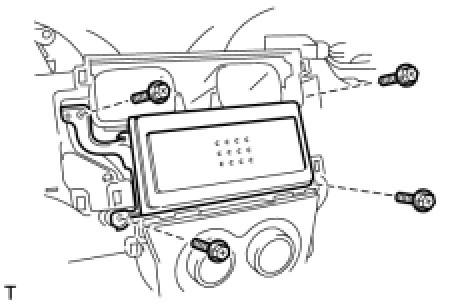

38. INSTALL STEREO OPENING COVER (w/o Radio Receiver)
(a) Install the stereo opening cover with the 4 screws.
39. INSTALL RADIO RECEIVER ASSEMBLY Installation

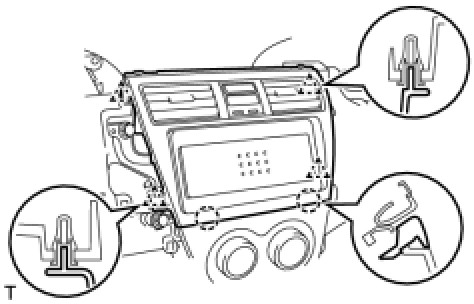

40. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER SUB-ASSEMBLY
(a) Engage the 2 claws and 4 clips and install the instrument cluster finish panel center.
41. INSTALL COMBINATION METER ASSEMBLY Installation
42. INSTALL INSTRUMENT CLUSTER FINISH NO.1 PANEL Installation
43. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
44. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
45. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER Installation

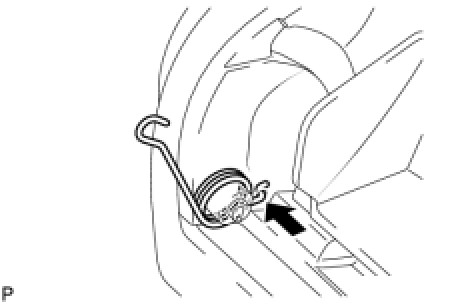

46. INSTALL INSTRUMENT PANEL CUP HOLDER SPRING RH
(a) Install the spring.
47. INSTALL INSTRUMENT PANEL CUP HOLDER RH

(a) Install the 2 hinges of the cup holder one at a time.

(b) Engage the spring with the instrument panel cup holder.

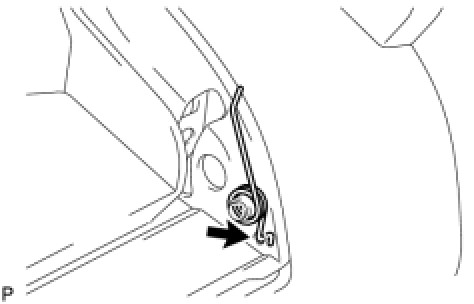

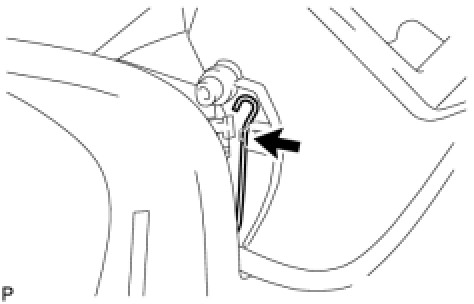

48. INSTALL INSTRUMENT PANEL CUP HOLDER SPRING LH
(a) Install the spring.

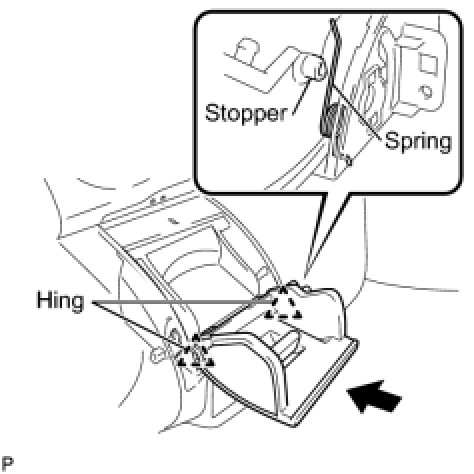

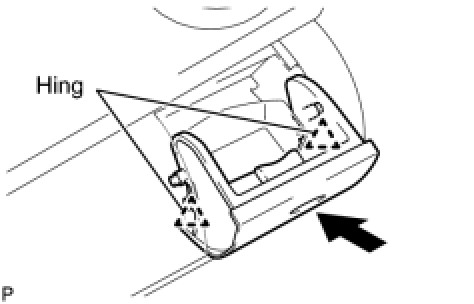

49. INSTALL INSTRUMENT PANEL CUP HOLDER LH

(a) Install the 2 hinges of the cup holder one at a time.
HINT: Make sure that the spring is set in the position shown in the illustration.

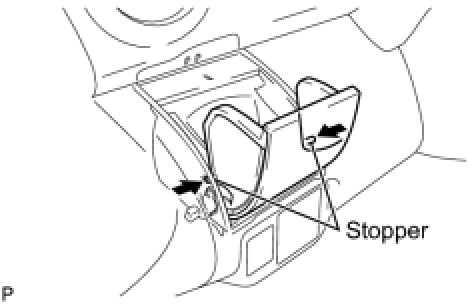

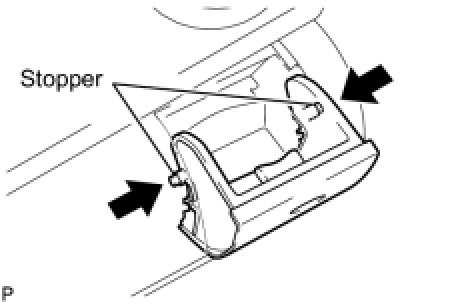

(b) Flex both sides of the cup holder and engage the 2 stoppers.
(c) Close the instrument panel cup holder.
50. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
51. CHECK SRS WARNING LIGHT
Diagnosis System
