Meter / Gauge System (for Sedan)

METER: METER / GAUGE SYSTEM (for Sedan): SYSTEM DIAGRAM

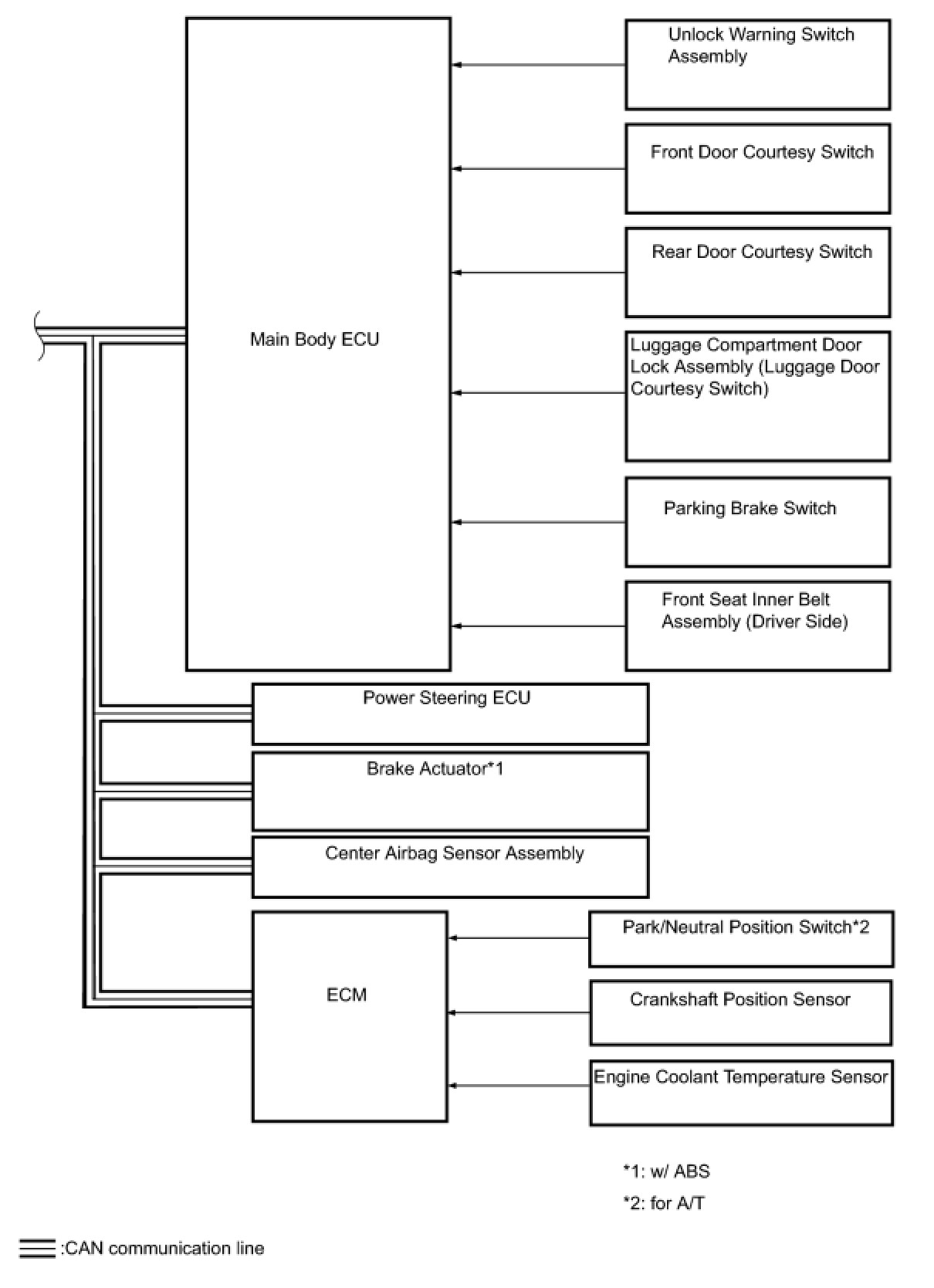

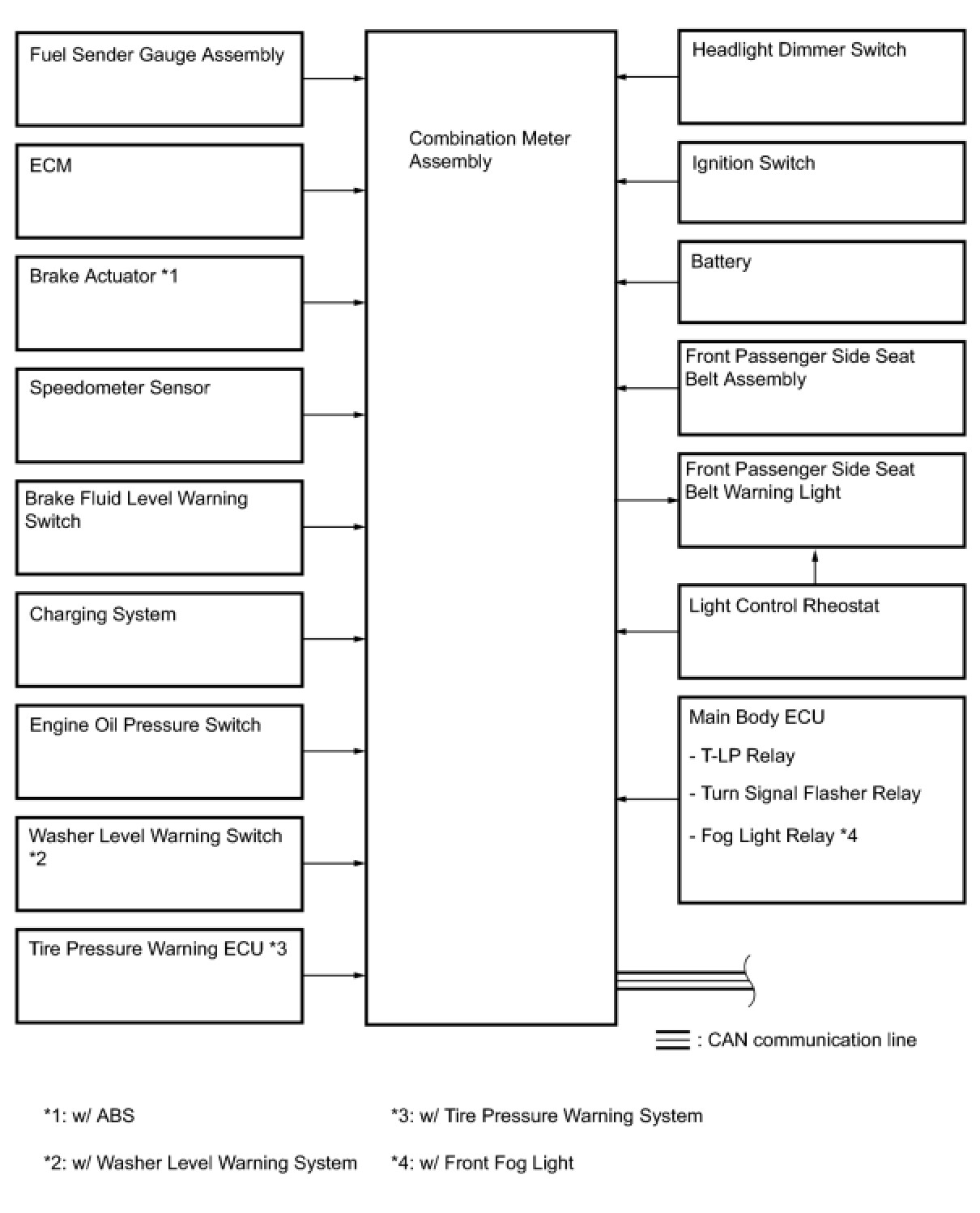

SYSTEM DIAGRAM









METER: METER / GAUGE SYSTEM (for Sedan): SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. METER GAUGE AND WARNING INDICATOR

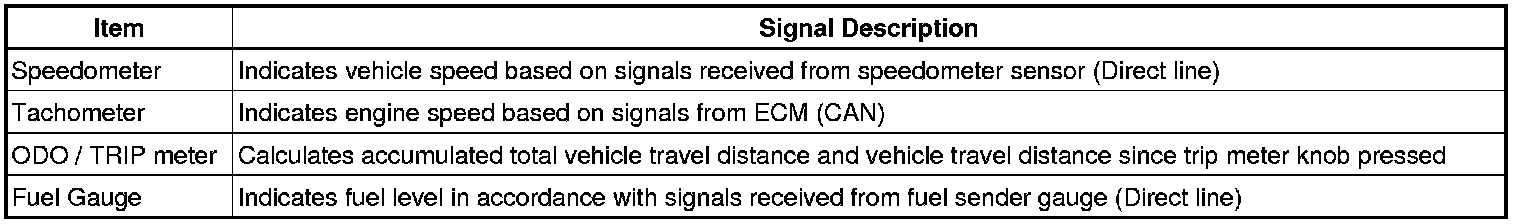

Meter/Gauge

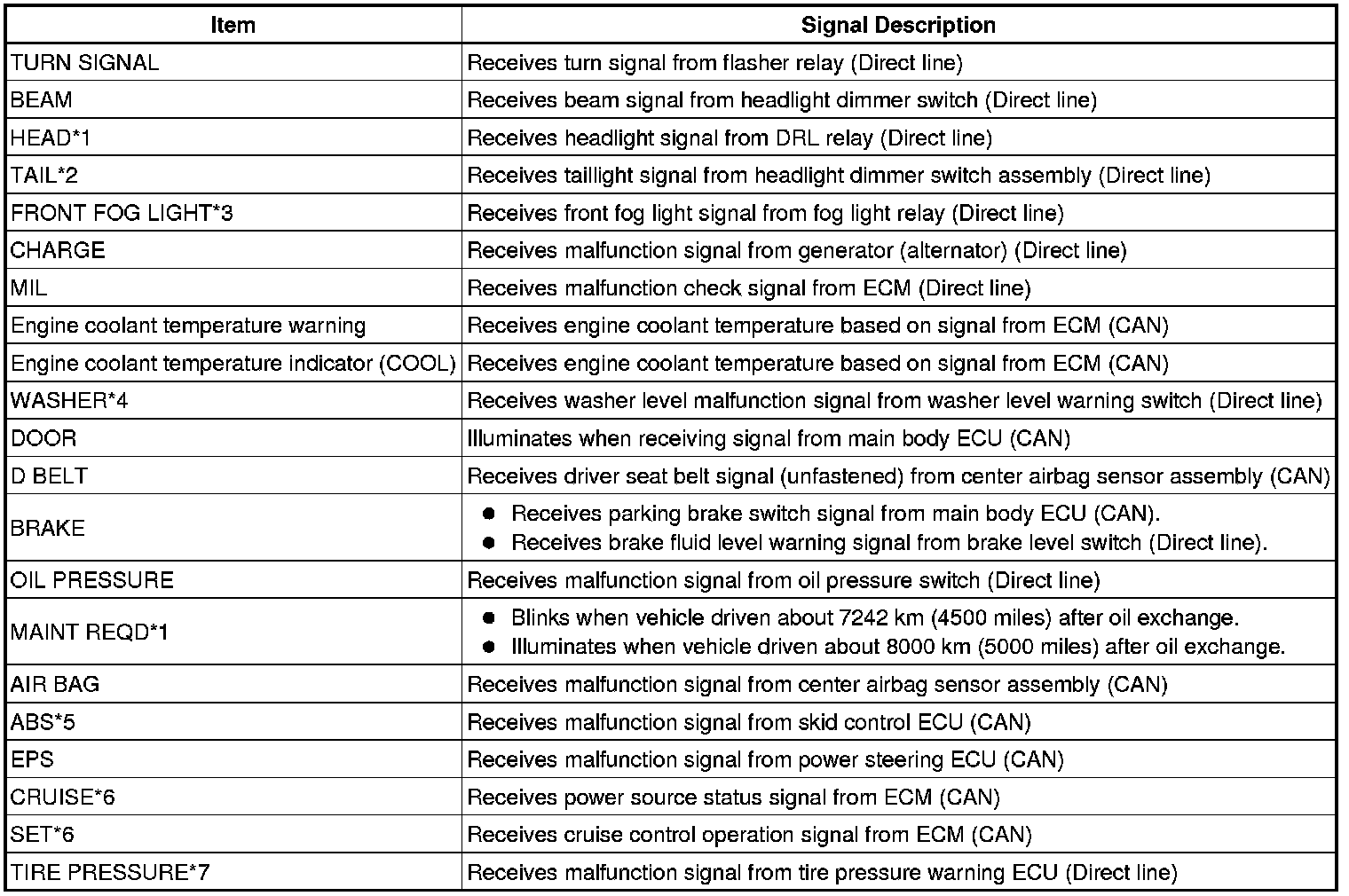

Warning/Indicator





- *1: for U.S.A.
- *2: for Canada
- *3: w/ Front Fog Light
- *4: w/ Washer Level Warning
- *5: w/ ABS
- *6: w/ Cruise Control
- *7: w/ Tire Pressure Warning System

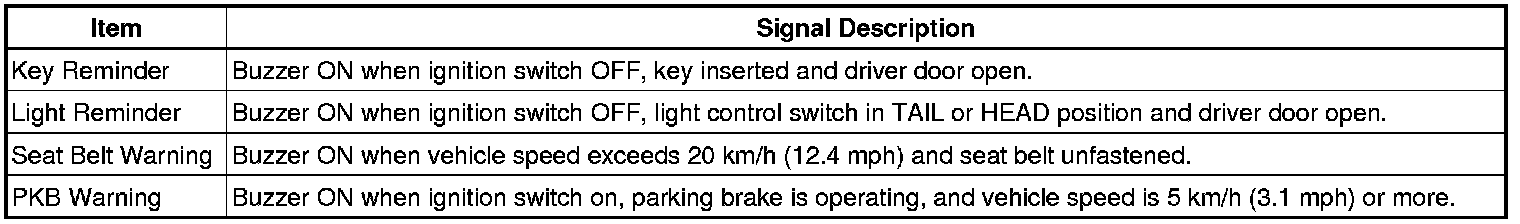

Buzzer
