LIGHTING: FRONT DOOR COURTESY SWITCH (for Hatchback): REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE (for 5 Door) Removal
3. REMOVE FRONT DOOR SCUFF PLATE (for 3 Door) Removal
4. REMOVE REAR DOOR SCUFF PLATE (for 5 Door) Removal

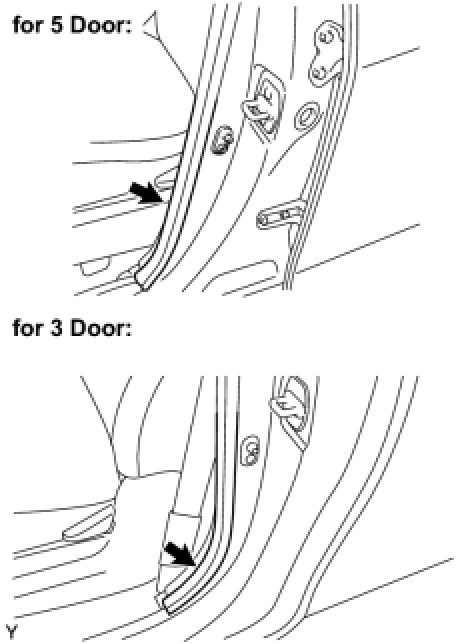

5. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP
(a) Remove the front door opening trim weatherstrip.

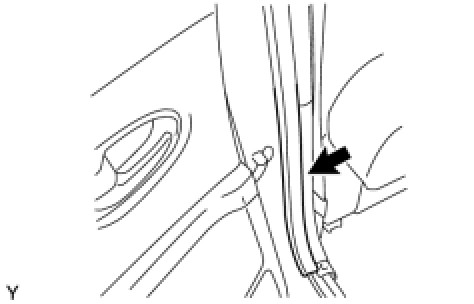

6. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP (for 5 Door)
(a) Remove the rear door opening trim weatherstrip.
7. REMOVE CENTER PILLAR GARNISH LOWER (for 5 Door) Removal





8. REMOVE FRONT DOOR COURTESY SWITCH
(a) Using "Torx" socket wrench T30, remove the screw.
(b) Disconnect the connector and remove the front door courtesy switch.
