Installation

LIGHTING: REAR DOOR COURTESY SWITCH: INSTALLATION

INSTALLATION

1. INSTALL REAR DOOR COURTESY SWITCH

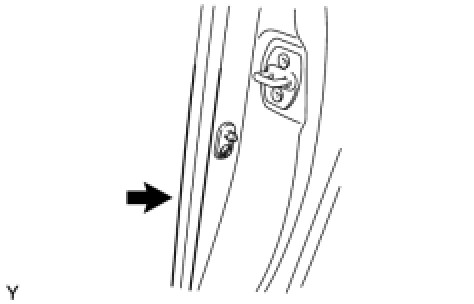

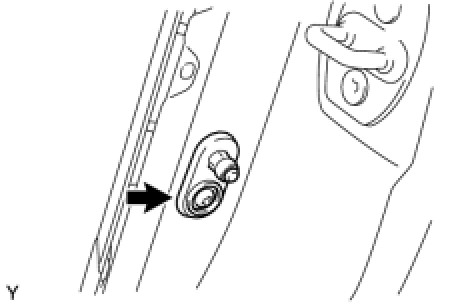

(a) Using "Torx" socket wrench T30, install the rear door courtesy switch with the screw.
Torque: 3.7 Nm (38 kgf-cm, 33 in-lbf)
2. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP





(a) Install the rear door opening trim weatherstrip.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
