Reassembly

METER: COMBINATION METER (for Hatchback): REASSEMBLY

REASSEMBLY

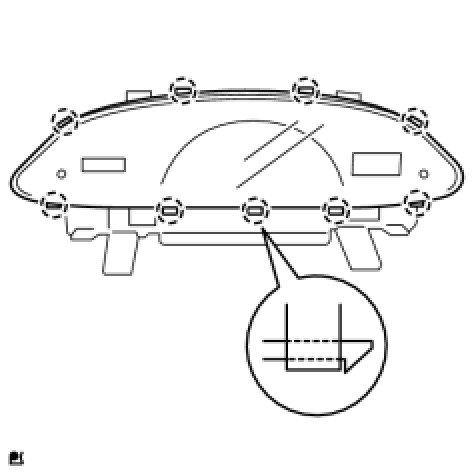

1. INSTALL COMBINATION METER GLASS
(a) Engage the 9 claws and install the combination meter glass.

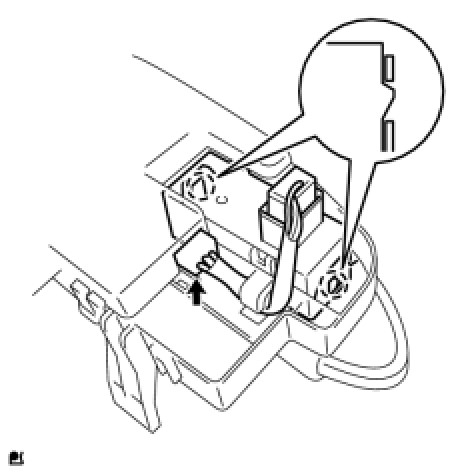

2. INSTALL CLOCK ASSEMBLY (w/ Tachometer)
(a) Engage the 2 claws and install the clock assembly.
(b) Connect the connector.
