Disassembly








METER: COMBINATION METER (for Sedan): DISASSEMBLY

DISASSEMBLY





1. REMOVE COMBINATION METER GLASS

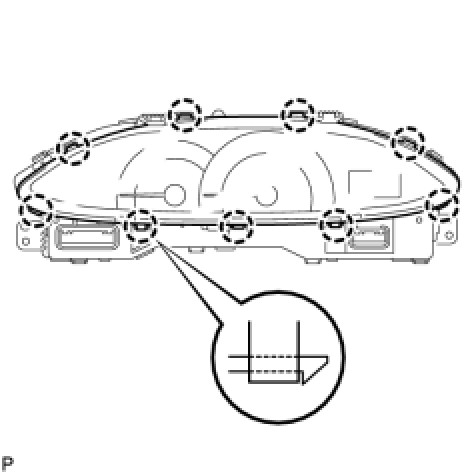

(a) Disengage the 9 claws and remove the combination meter glass.
