Installation

METER: COMBINATION METER (for Sedan): INSTALLATION

INSTALLATION

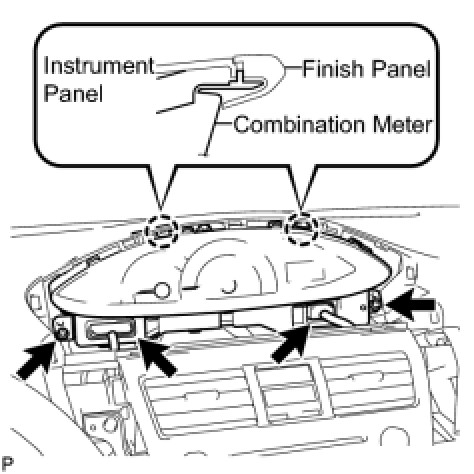

1. INSTALL COMBINATION METER ASSEMBLY
(a) Install the combination meter assembly with the 2 screws.
NOTE: Install the meter by inserting the ribbed portions of the meter between the instrument panel and meter cluster.

(b) Connect the 2 connectors.
2. INSTALL INSTRUMENT CLUSTER FINISH NO.1 PANEL

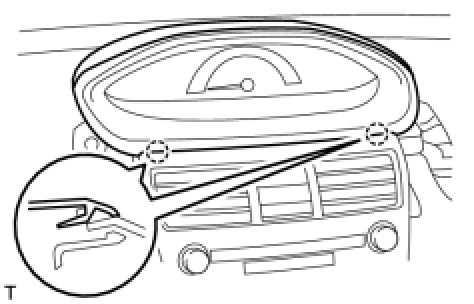

(a) Fit the 2 claws of the instrument cluster finish panel into the upper instrument cluster finish panel center.

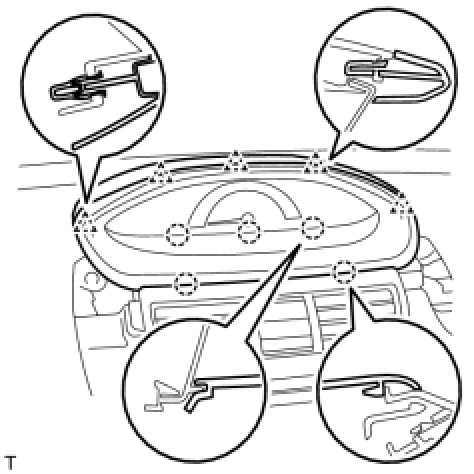

(b) Engage the 5 claws and 5 clips and install the instrument cluster finish panel.

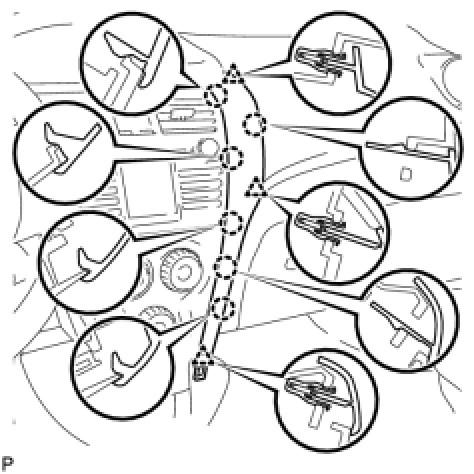

3. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
(a) Engage the 6 claws and 3 clips and install the instrument panel finish panel end RH.

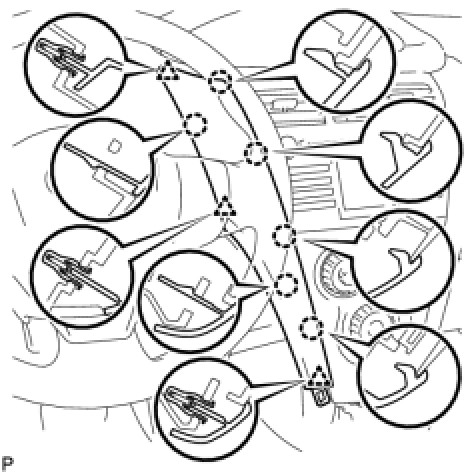

4. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
(a) Engage the 6 claws and 3 clips and install the instrument panel finish panel end LH.

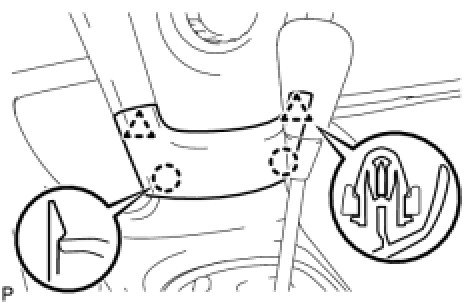

5. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER
(a) Engage the 2 claws and 2 clips and install the instrument panel finish panel lower center.
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
