Meter / Gauge System (for Hatchback)








METER: METER / GAUGE SYSTEM (for Hatchback): PARTS LOCATION

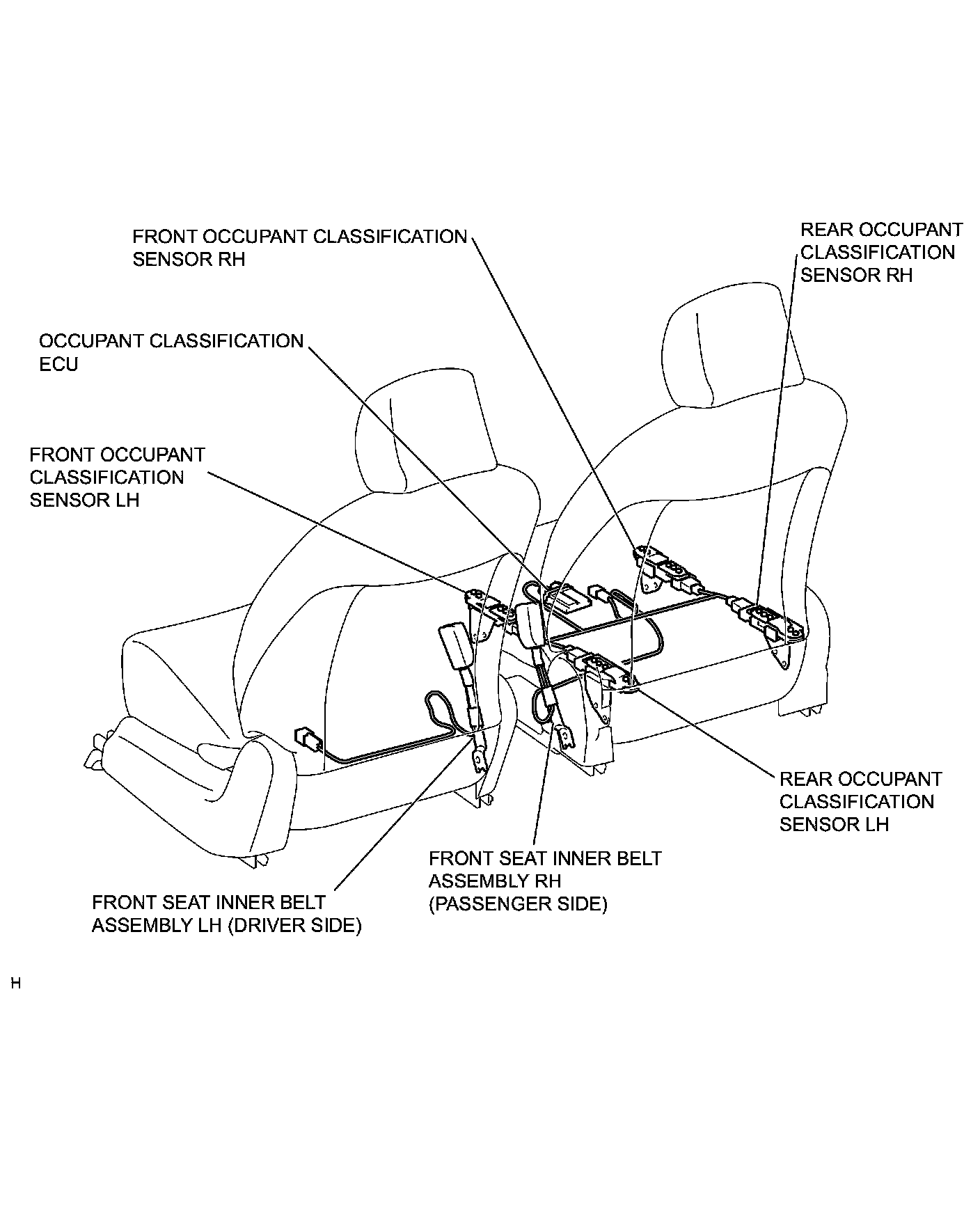

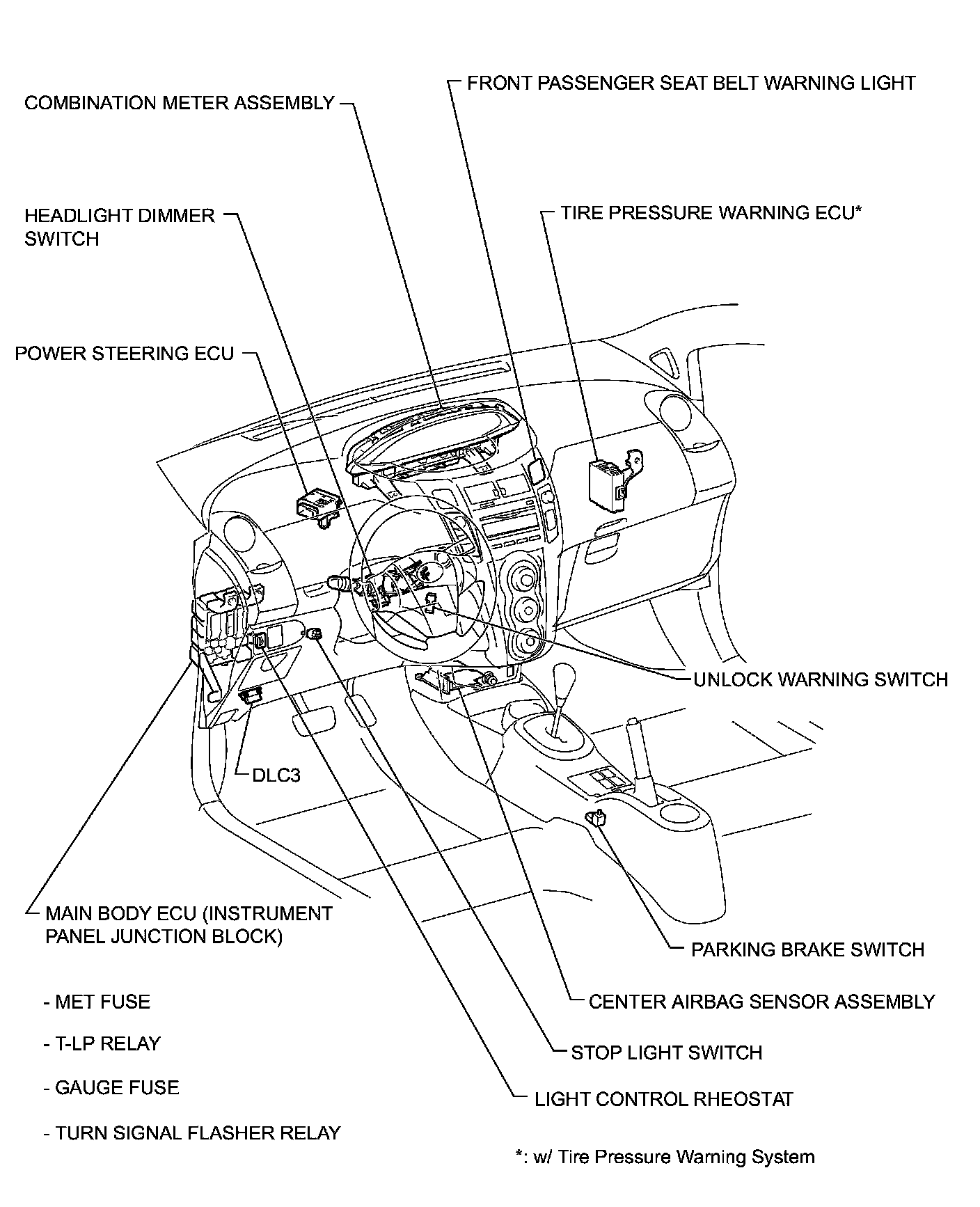

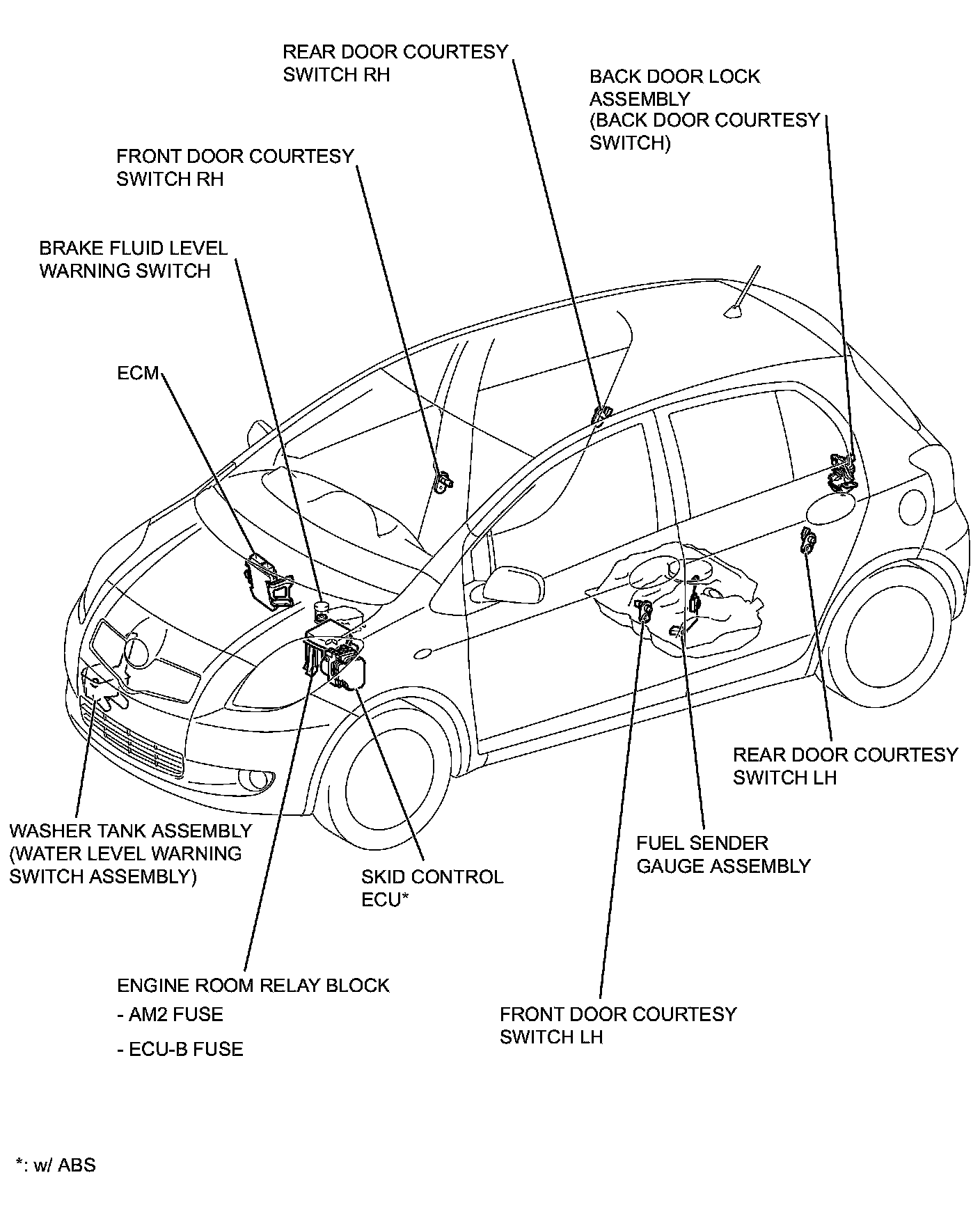

PARTS LOCATION

ILLUSTRATION
