Meter / Gauge System (for Sedan)
Meter / Gauge System (for Sedan)

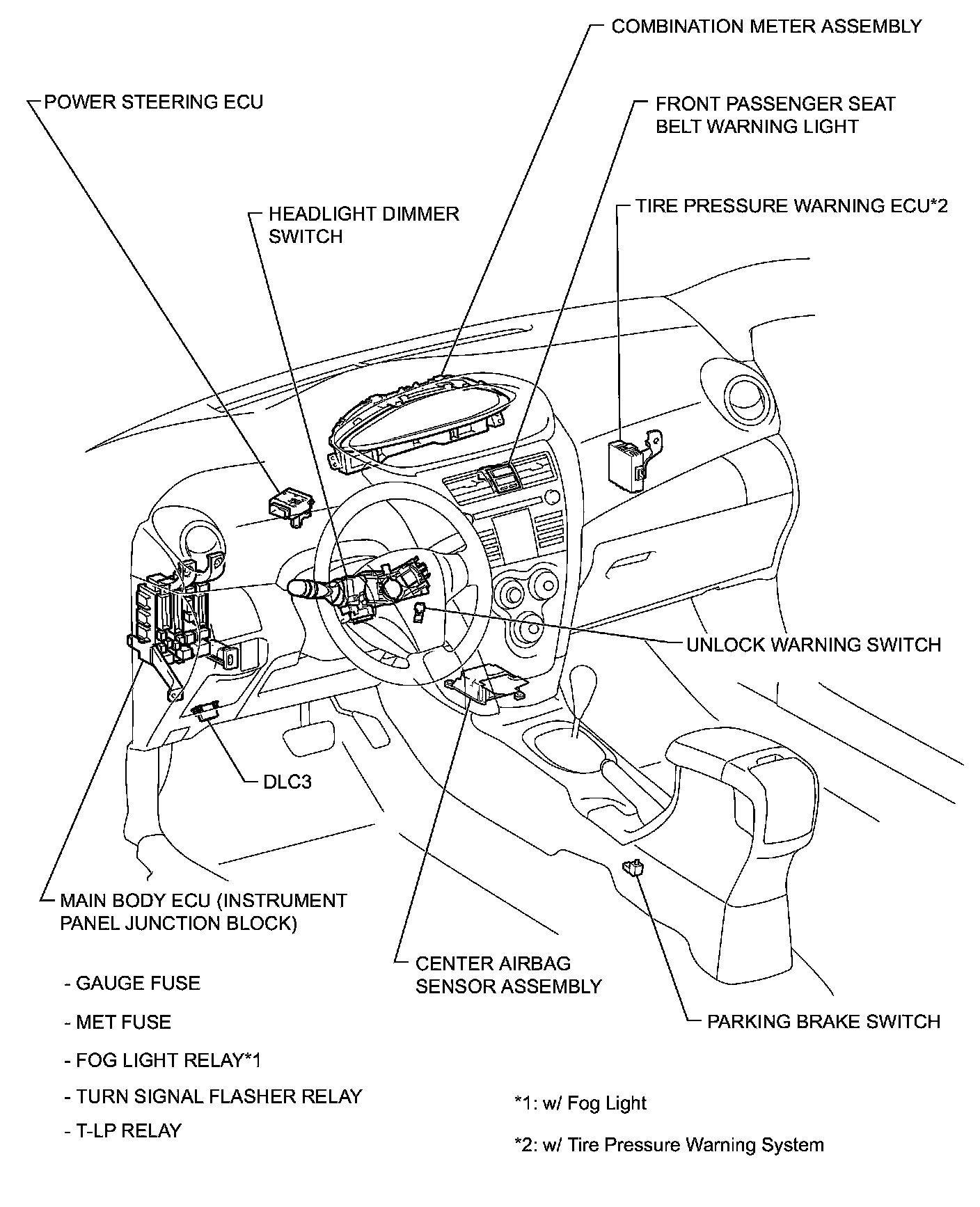

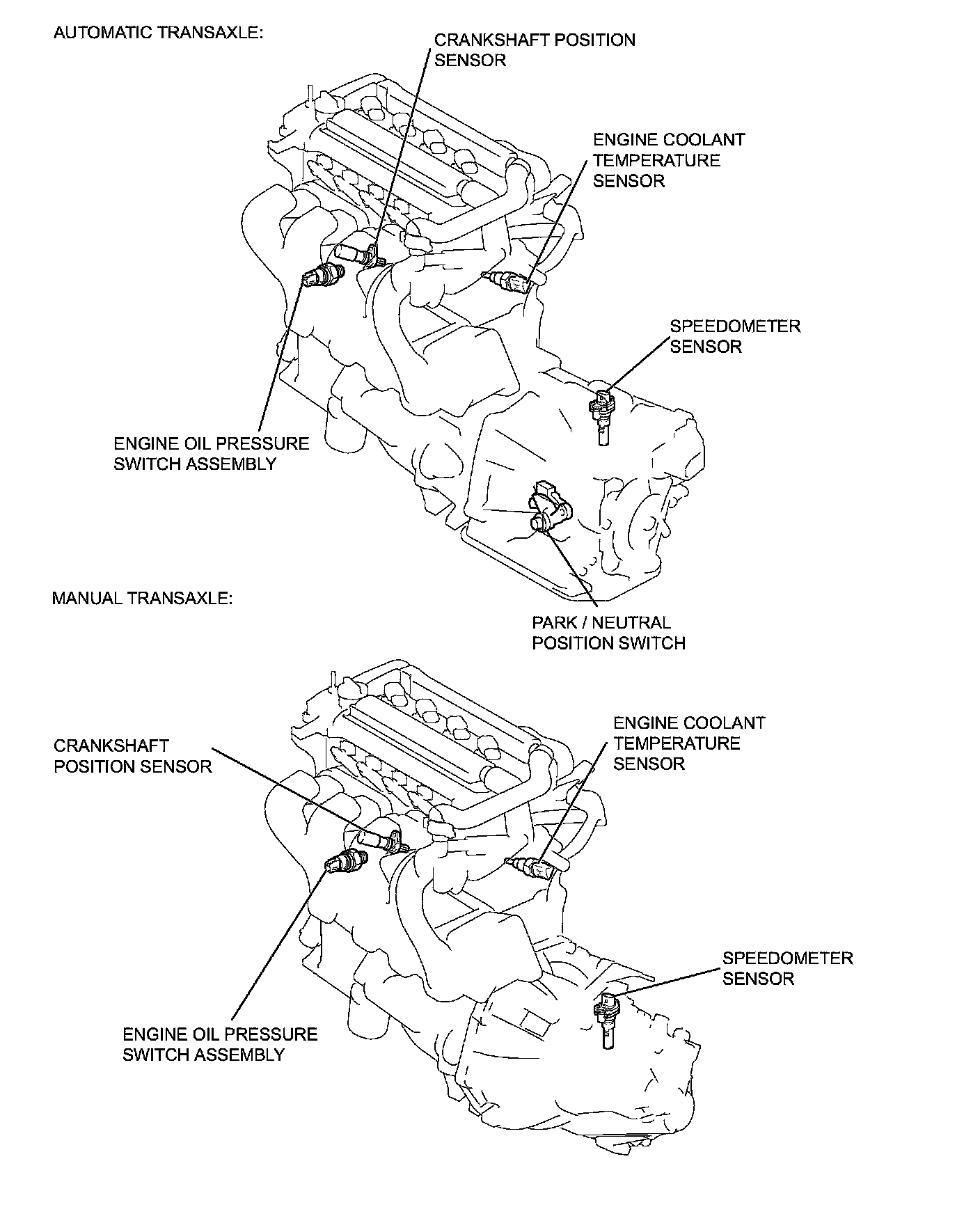

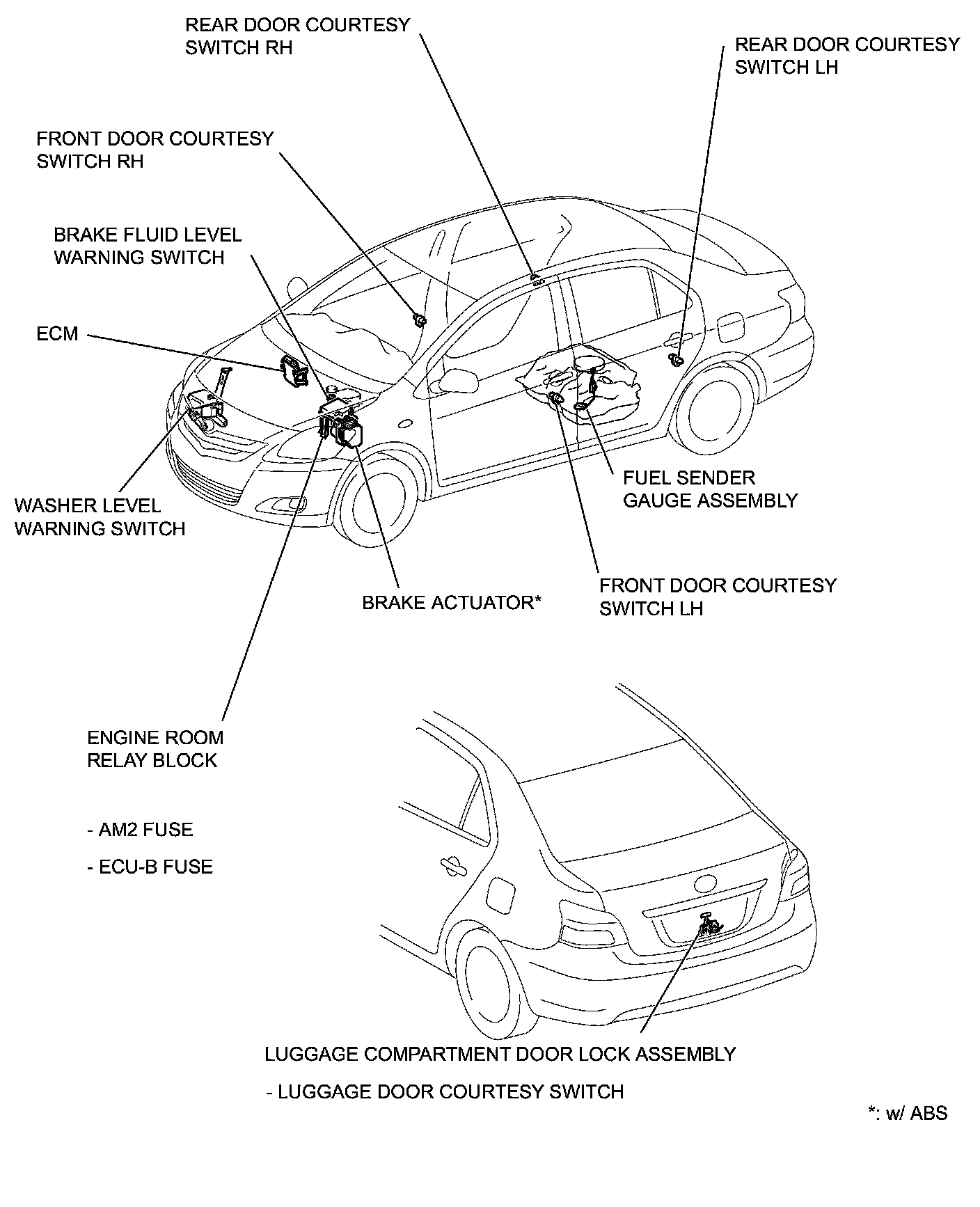

METER: METER / GAUGE SYSTEM (for Sedan): PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
