Removal

SEAT BELT: FRONT PASSENGER SEAT BELT WARNING LIGHT (for Hatchback): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INSTRUMENT PANEL FINISH PANEL END Removal
3. REMOVE FRONT PASSENGER SEAT BELT WARNING LIGHT

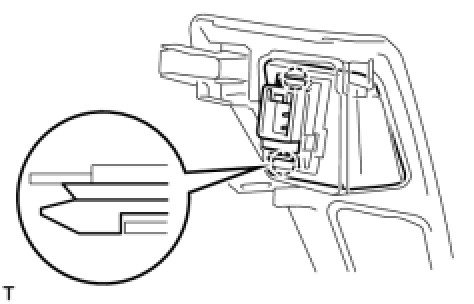

(a) Disengage the 2 claws and remove the front passenger seat belt warning light.
