Key Reminder Warning System

DOOR LOCK: KEY REMINDER WARNING SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use these procedures to troubleshoot the key reminder warning system.
- The Techstream should be used in steps 3 and 5.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
HINT: If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.
3. INSPECT COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM
(a) Use the Techstream to check if the CAN communication system is functioning normally.

Result:





B -- GO TO CAN COMMUNICATION SYSTEM
A -- Continue to next step.

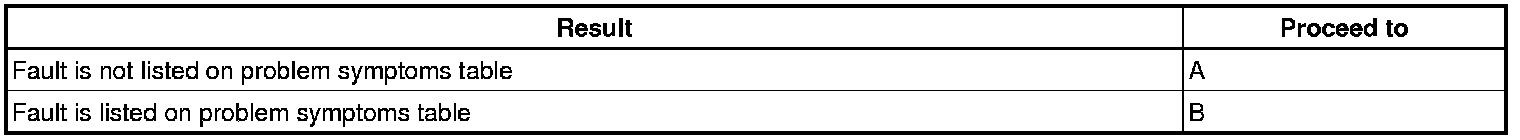

4. PROBLEM SYMPTOMS TABLE

Result:





B -- Go to step 6
A -- Continue to next step.
5. OVERALL ANALYSIS AND TROUBLESHOOTING
(a) Operation Check
Key Reminder Warning System.
(b) Terminals of ECU
Key Reminder Warning System.
(c) Data list/Active test
Key Reminder Warning System.
NEXT -- Continue to next step.
6. REPAIR OR REPLACE
NEXT -- Continue to next step.
7. CONFIRMATION TEST
NEXT -- END
