Key Reminder Warning System

DOOR LOCK: KEY REMINDER WARNING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

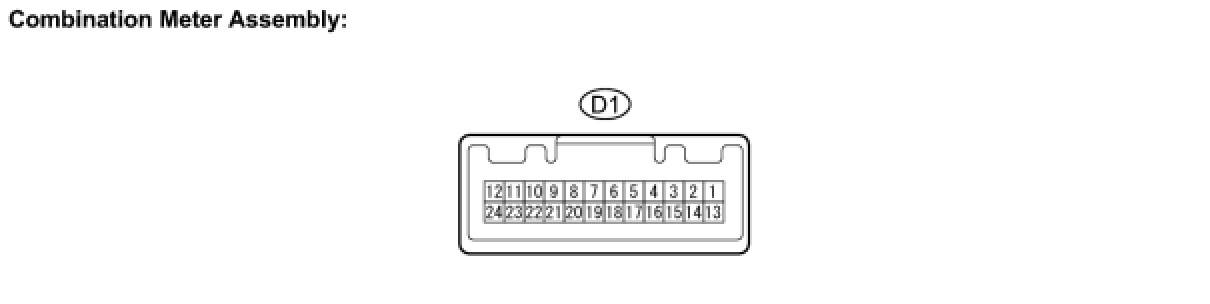

1. CHECK COMBINATION METER ASSEMBLY

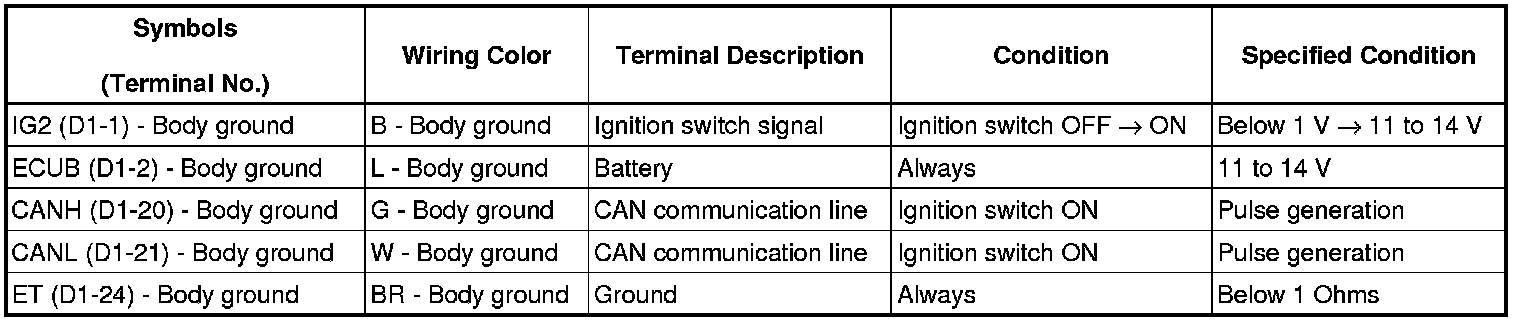

(a) Using the tester probes, touch the terminals from the back of the vehicle wire harness connectors, and measure the voltages and resistances of each terminal.





Standard:

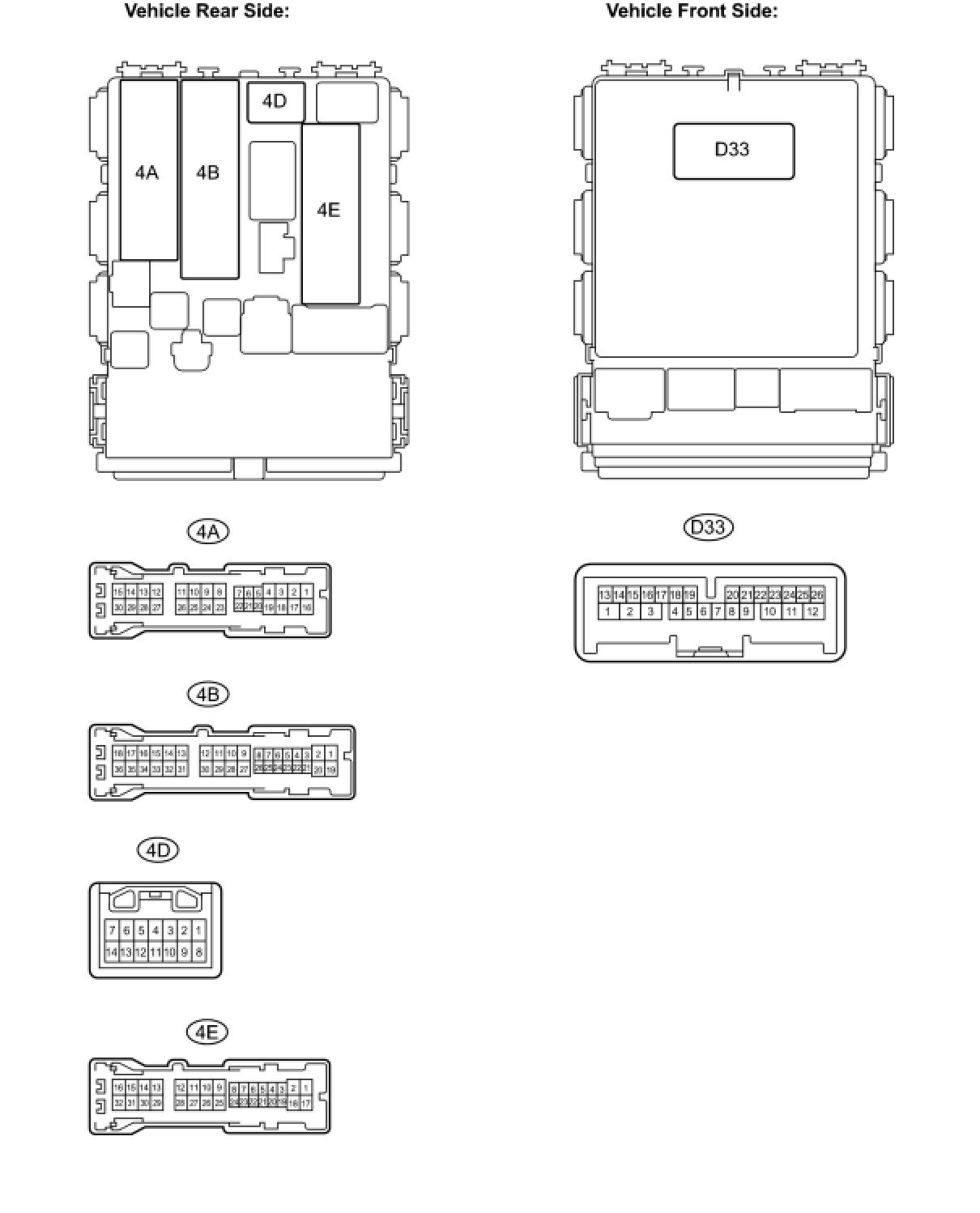

2. CHECK MAIN BODY ECU

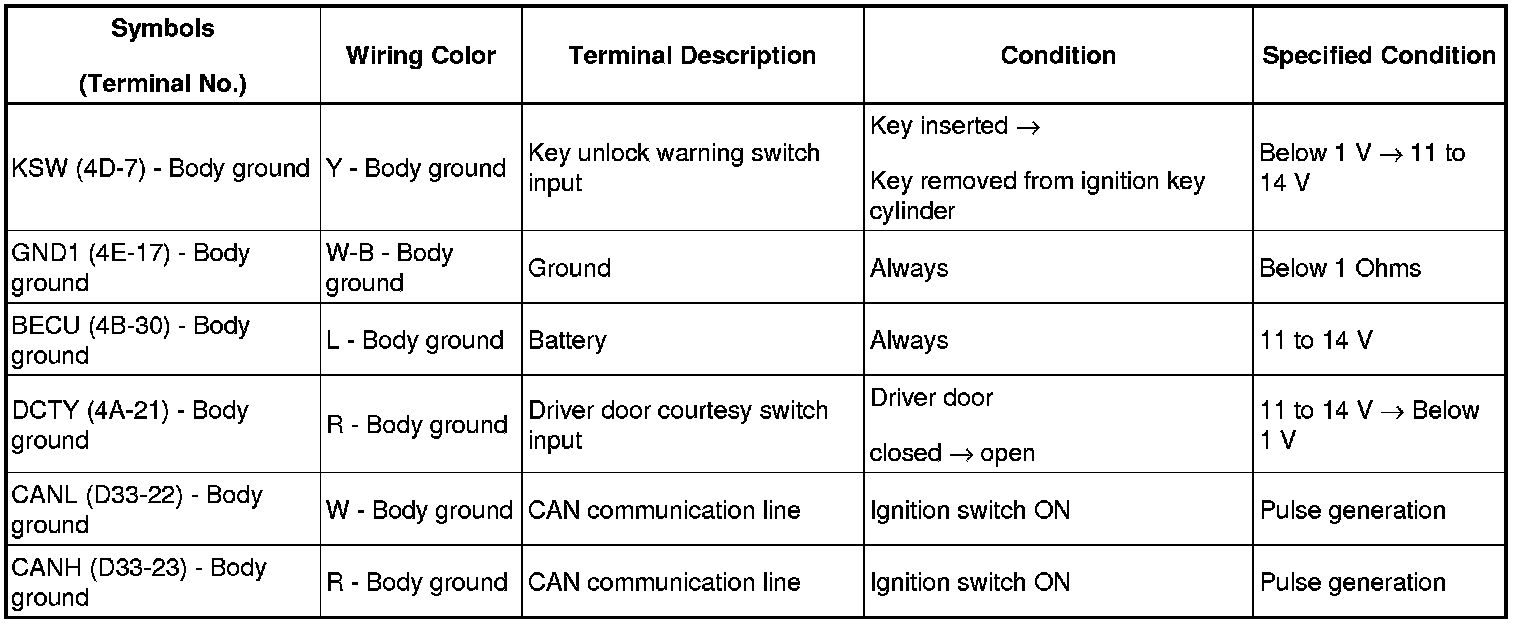

(a) Using the tester probes, touch the terminals from the back of the vehicle wire harness connectors, and measure the voltages and resistances of each terminal.





Standard:
