Initialization

METER: METER / GAUGE SYSTEM (for Hatchback): INITIALIZATION

INITIALIZATION

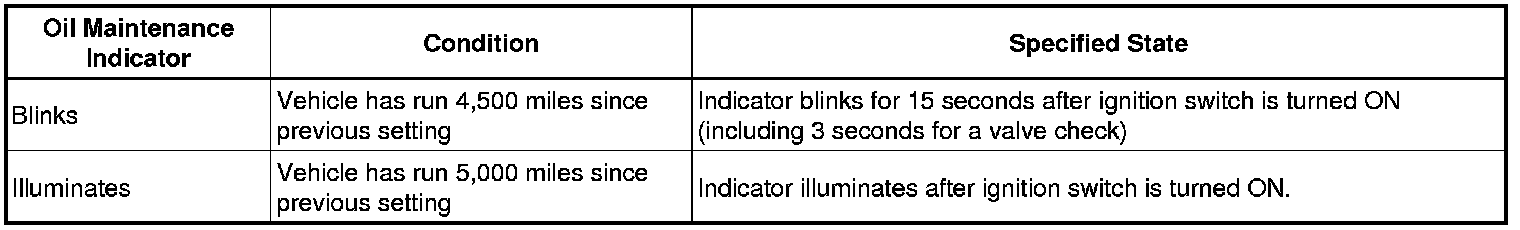

1. OIL MAINTENANCE INDICATOR RESETTING PROCEDURE (U.S.A. only)






(a) Set the window display located inside the combination meter to the Trip A indication.
(b) Turn the ignition switch OFF.
(c) While pressing the ODO/TRIP display change switch (reset switch) (for at least 5 seconds), turn the ignition switch ON.
(d) When the reset procedure has been completed successfully, the MAINT REQD indicator light turns off and the ODO/TRIP meter indicates 0 (zero) and then returns to its regular display.
HINT: If the reset fails, the MAINT REQD indicator light remains illuminated. Perform the procedure again.
