Problem Symptoms Table








DOOR LOCK: KEY REMINDER WARNING SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

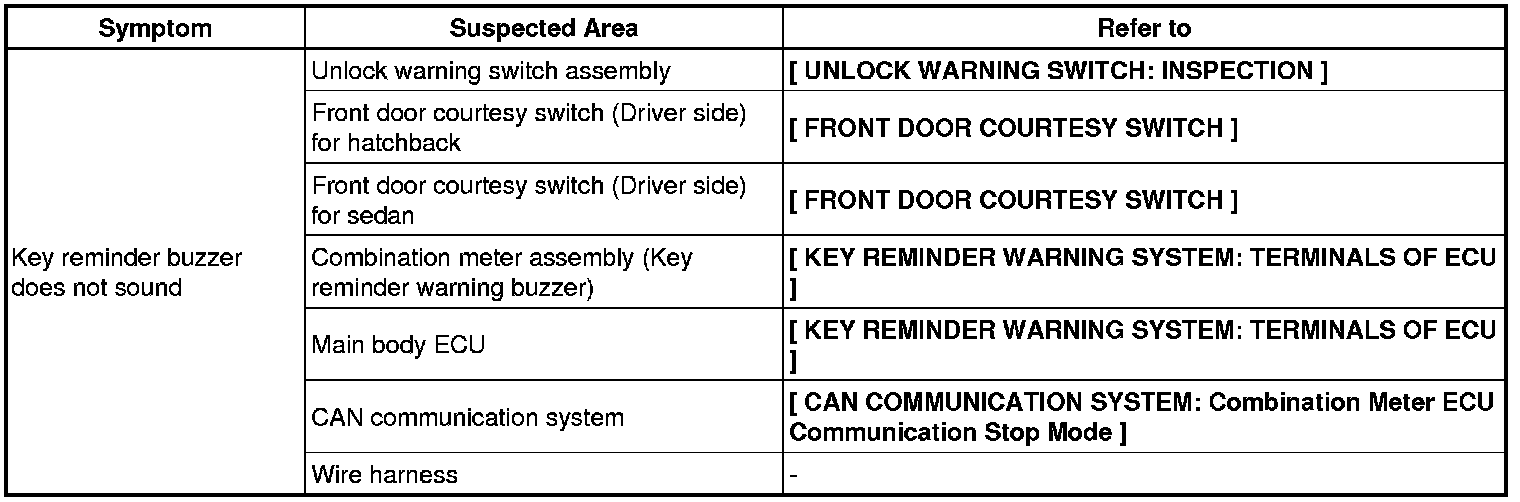

HINT: Use the table below to help determine the causes of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

Key reminder warning system
