Installation

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY (for Sedan with Rear Spoiler): INSTALLATION

INSTALLATION





1. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY
(a) Connect the connector.

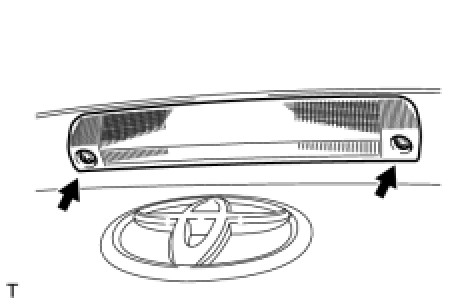

(b) Install the high mounted stop light with the 2 bolts.
Torque: 1.3 Nm (13 kgf-cm, 11 in-lbf)
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
