Installation

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY (for Sedan without Rear Spoiler): INSTALLATION

INSTALLATION

1. INSTALL HIGH MOUNTED STOP LIGHT BULB





(a) Install the high mounted stop light bulb into the light socket.

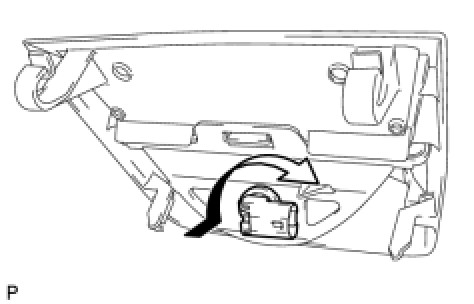

(b) Turn the high mounted stop light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.
2. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY





(a) Connect the connector.

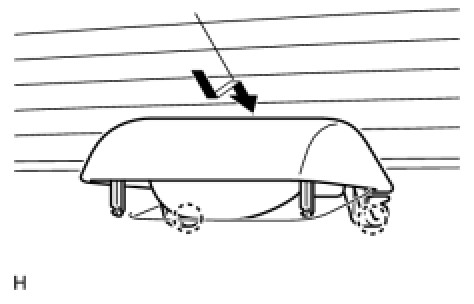

(b) Engage the 4 claws and install the high mounted stop light assembly.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
