Removal

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY (for Sedan without Rear Spoiler): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY

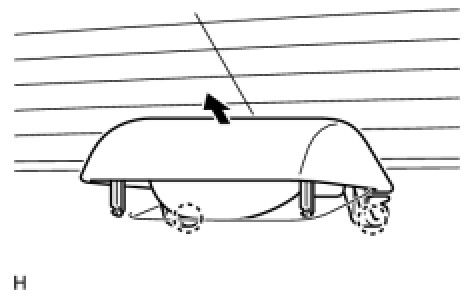

(a) Disengage the 2 claws.

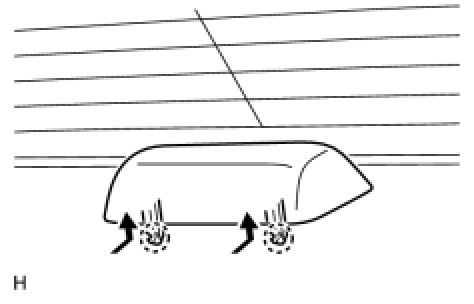

(b) Disengage the 2 claws.
(c) Disconnect the connector and remove the high mounted stop light assembly.
3. REMOVE HIGH MOUNTED STOP LIGHT BULB

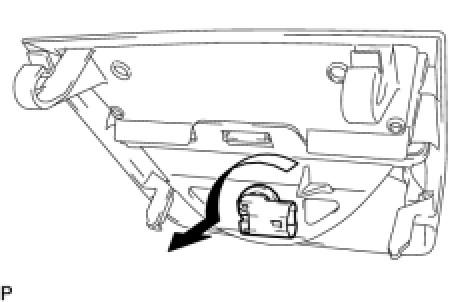

(a) Turn the high mounted stop light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
(b) Remove the high mounted stop light bulb from the light socket.
