Installation

LIGHTING: ROOM LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL ROOM LIGHT ASSEMBLY
(a) Install room light bulb No. 1.

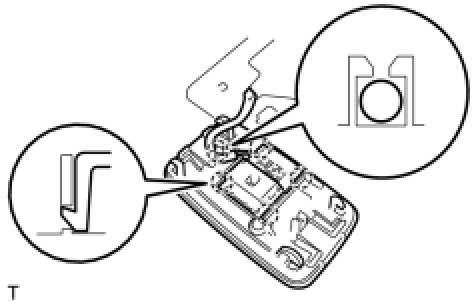

(b) Engage the 4 claws and install the room light switch base.
(c) Install the roof wire into the claw of the room light.

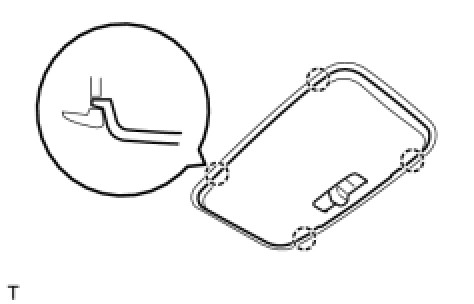

(d) Engage the 4 claws and install the room light.

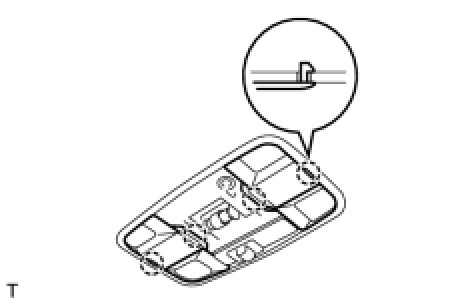

(e) Engage the 4 claws and install the 2 covers.

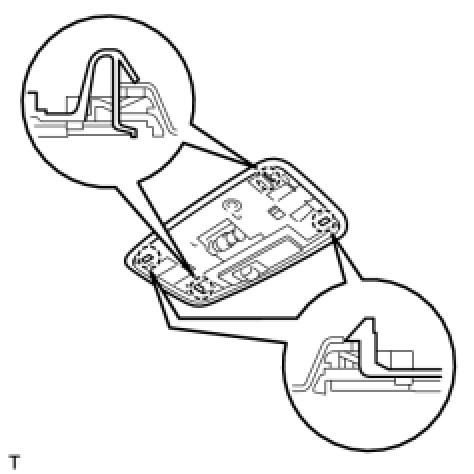

(f) Engage the 4 claws and install the room light lens.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
