Removal

LIGHTING: ROOM LIGHT ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE ROOM LIGHT ASSEMBLY

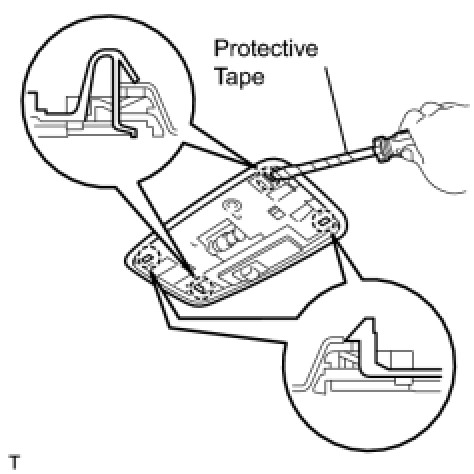

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light lens.

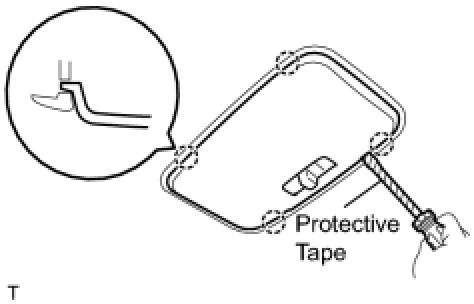

(b) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the 2 covers.

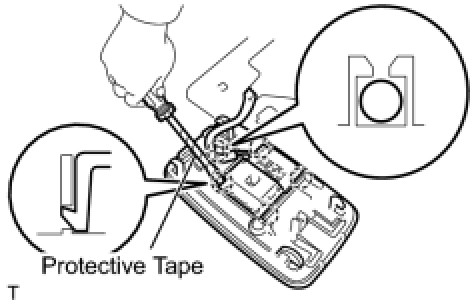

(c) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws.





(d) Disengage the roof wire from the claw of the room light.
(e) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light switch base.
(f) Remove room light bulb No. 1.
