LIGHTING: FRONT DOOR COURTESY SWITCH (for Sedan): REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE Removal
3. REMOVE REAR DOOR SCUFF PLATE Removal

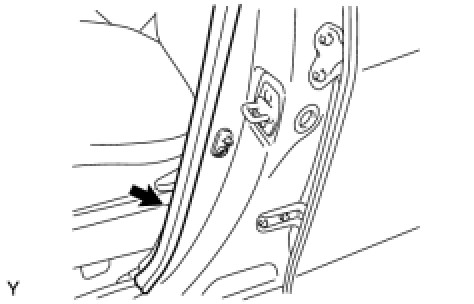

4. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP
(a) Remove the front door opening trim weatherstrip.

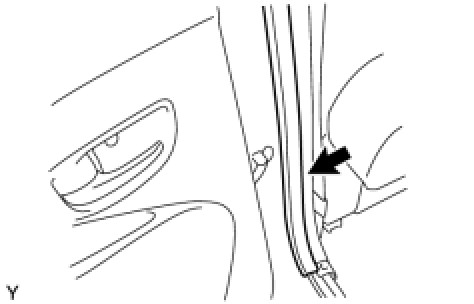

5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
(a) Remove the rear door opening trim weatherstrip.
6. REMOVE CENTER PILLAR GARNISH LOWER Removal

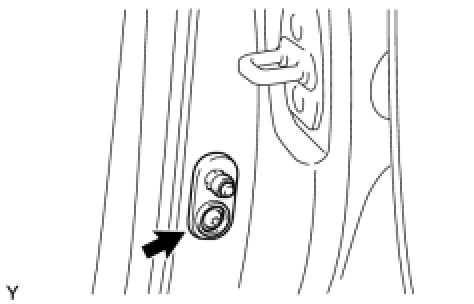

7. REMOVE FRONT DOOR COURTESY SWITCH
(a) Using "Torx" socket wrench T30, remove the screw.
(b) Disconnect the connector and remove the front door courtesy switch.
