Back Door Courtesy Switch (for Hatchback)

LIGHTING: BACK DOOR COURTESY SWITCH (for Hatchback): INSPECTION

INSPECTION





1. INSPECT BACK DOOR LOCK ASSEMBLY
(a) Check the resistance of the back door courtesy switch.

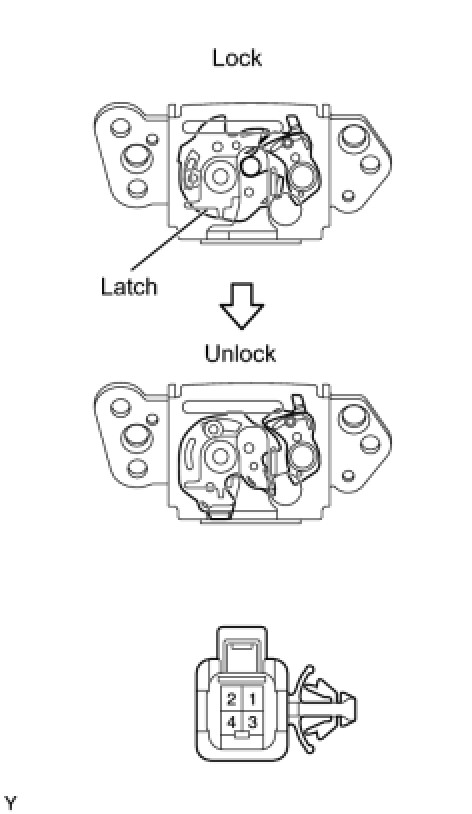

(1) Using an ohmmeter, measure the resistance between the terminals when the latch is operated with a screwdriver.

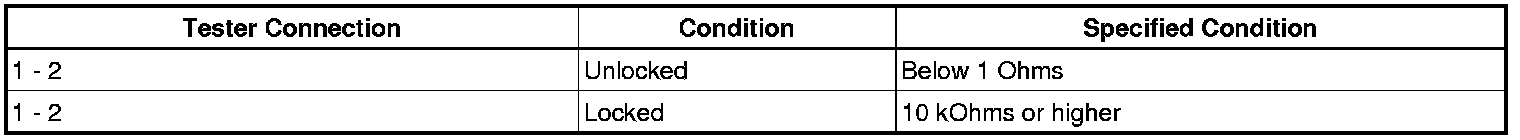

Standard Resistance:






If the result is not as specified, replace the back door lock.
