Installation

LIGHTING: FOG LIGHT ASSEMBLY (for Sedan): INSTALLATION

INSTALLATION

1. INSTALL FOG LIGHT ASSEMBLY

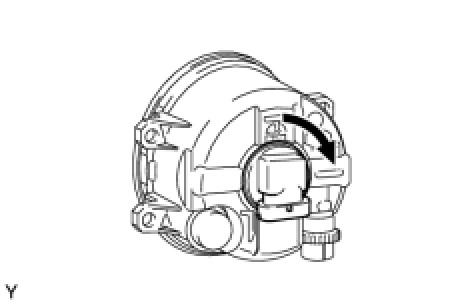

(a) Turn the fog light bulb, in the direction indicated by the arrow in the illustration, to install it.

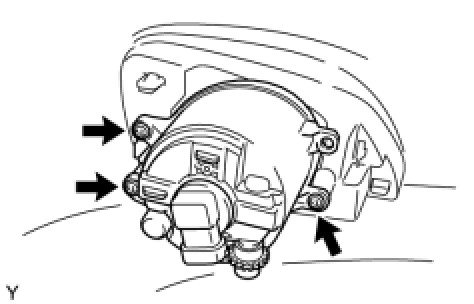

(b) Install the fog light with the 3 screws.
(c) Connect the connector.

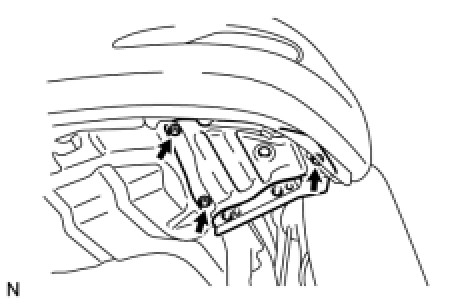

2. INSTALL FRONT FENDER LINER





(a) Install the 3 screws.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
4. PREPARE VEHICLE FOR FOG LIGHT AIMING ADJUSTMENT Fog Light Assembly (for Sedan)
5. PREPARE FOR FOG LIGHT AIMING Fog Light Assembly (for Sedan)
6. INSPECT FOG LIGHT AIMING Fog Light Assembly (for Sedan)
7. ADJUST FOG LIGHT AIMING Fog Light Assembly (for Sedan)
