Headlamp Relay: Testing and Inspection

LIGHTING: HEADLIGHT RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. INSPECT HEADLIGHT RELAY
(a) Check the resistance.

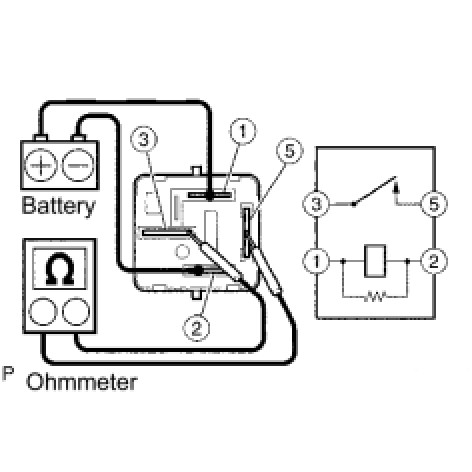

(1) Using an ohmmeter, measure the resistance between the terminals.

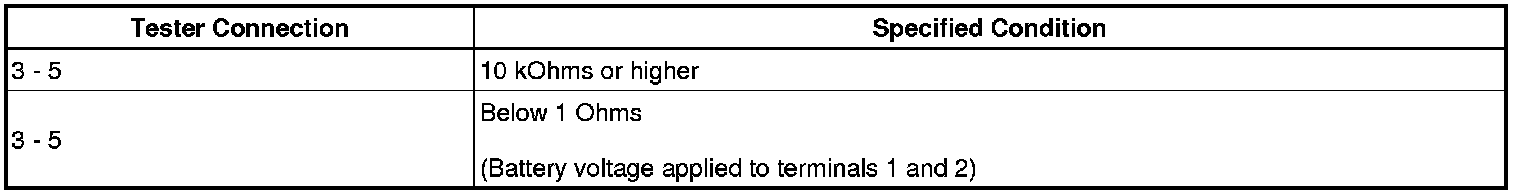

Standard Resistance:






If the result is not as specified, replace the headlight relay.
