Reassembly

LIGHTING: HEADLIGHT ASSEMBLY (for Hatchback): REASSEMBLY

REASSEMBLY

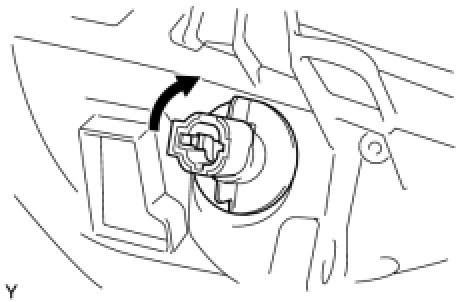

1. INSTALL PARKING LIGHT BULB

(a) Install the parking light bulb into the light socket.
(b) Turn the parking light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

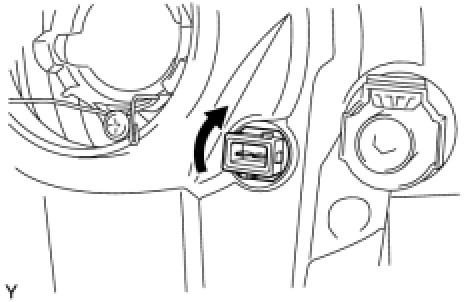

2. INSTALL FRONT TURN SIGNAL LIGHT BULB
(a) Install the front turn signal light bulb into the light socket.
(b) Turn the front turn signal light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

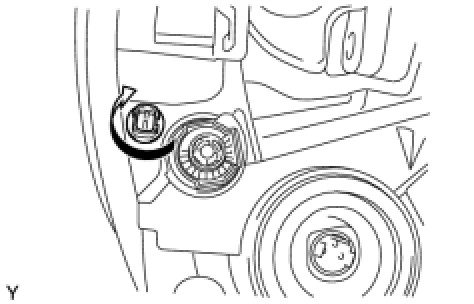

3. INSTALL CLEARANCE LIGHT BULB

(a) Install the clearance light bulb into the light socket.
(b) Turn the clearance light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

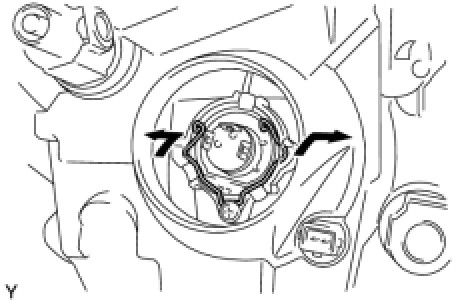

4. INSTALL HEADLIGHT BULB

(a) Install the headlight bulb.

(b) Lock the set spring by moving it in the directions indicated by the arrows in the illustration.
