Removal

LIGHTING: HEADLIGHT ASSEMBLY (for Hatchback): REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT BUMPER COVER Removal

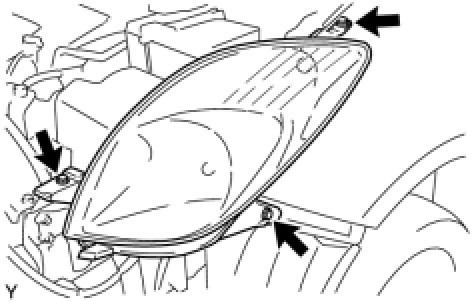

3. REMOVE HEADLIGHT ASSEMBLY
(a) Remove the 3 screws.
(b) Disconnect the 3 connectors, then remove the headlight.
