Disassembly
LIGHTING: HEADLIGHT ASSEMBLY (for Sedan): DISASSEMBLY
DISASSEMBLY
1. REMOVE HEADLIGHT NO.1 BULB

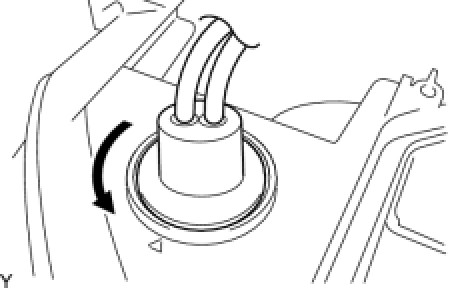

(a) Remove the socket cover.

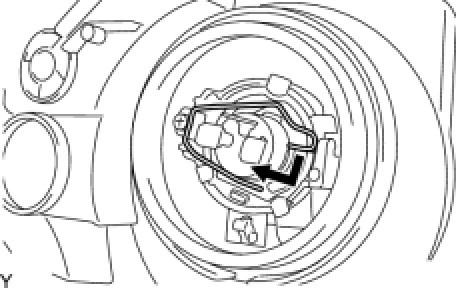

(b) Push the set spring, and pull it in the directions indicated by the arrow in the illustration, to disengage it.

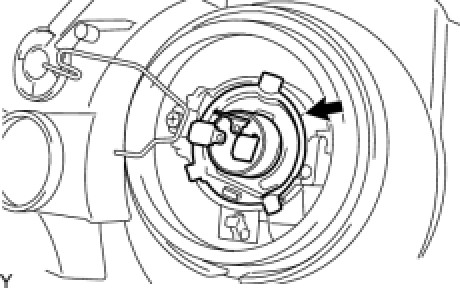

(c) Remove the headlight No. 1 bulb.
NOTE: Do not touch the bulb glass with your fingers.
2. REMOVE FRONT TURN SIGNAL AND PARKING LIGHT BULB

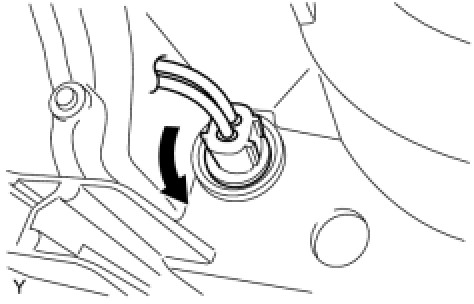

(a) Turn the front turn signal and parking light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
(b) Remove the front turn signal and parking light bulb from the light socket.
3. REMOVE SIDE MARKER LIGHT BULB

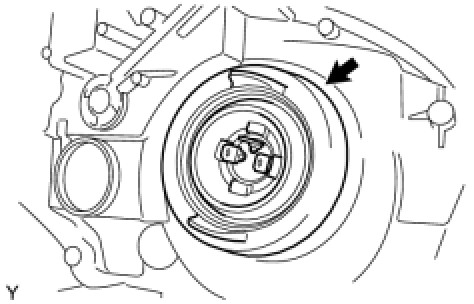

(a) Turn the side marker light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
(b) Remove the side marker light bulb from the light socket.
