Installation

LIGHTING: HEADLIGHT ASSEMBLY (for Sedan): INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT ASSEMBLY





(a) Connect the 2 connectors.

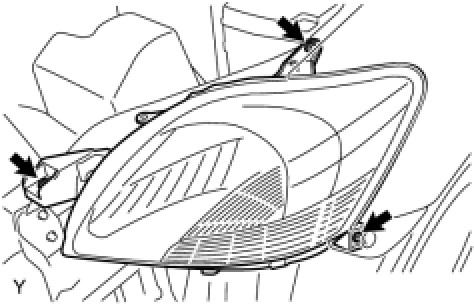

(b) Install the headlight with the 2 screws and the bolt.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
(for bolt)
2. INSTALL FRONT BUMPER COVER Installation
3. INSTALL FRONT SPOILER COVER (w/ Front Spoiler) Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
5. PREPARE VEHICLE FOR HEADLIGHT AIMING ADJUSTMENT Headlight Assembly (for Sedan)
6. PREPARE FOR HEADLIGHT AIMING (for Using a Screen) Headlight Assembly (for Sedan)
7. INSPECT HEADLIGHT AIMING Headlight Assembly (for Sedan)
8. ADJUST HEADLIGHT AIMING Headlight Assembly (for Sedan)
