Home >> Toyota >> 2009 >> Yaris L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Service and Repair >> Low Pitched Horn (for Hatchback) >> Components

Components

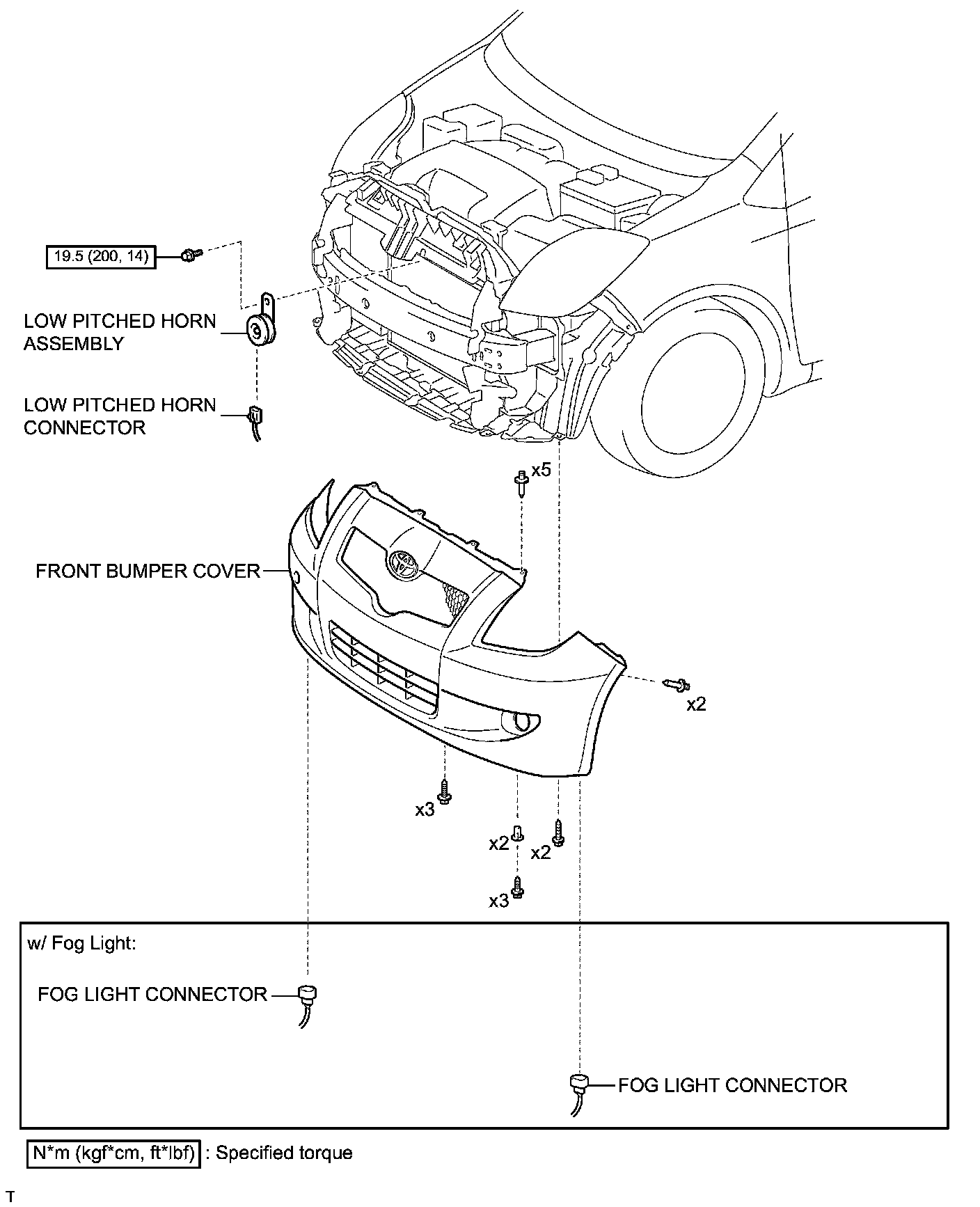

HORN: LOW PITCHED HORN (for Hatchback): COMPONENTS

COMPONENTS

ILLUSTRATION
