Removal

HORN: LOW PITCHED HORN (for Hatchback): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT BUMPER COVER Removal

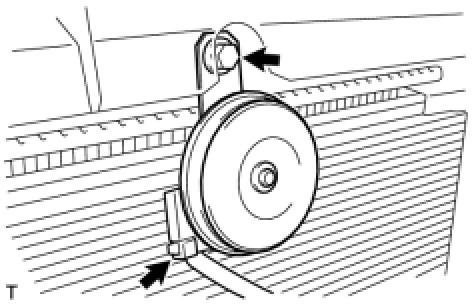

3. REMOVE LOW PITCHED HORN ASSEMBLY





(a) Disconnect the low pitched horn connector.
(b) Remove the bolt and the low pitched horn.
