LIGHTING: LICENSE PLATE LIGHT ASSEMBLY (for Hatchback): INSTALLATION

INSTALLATION

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY





(a) Install the license plate light bulb into the light socket.

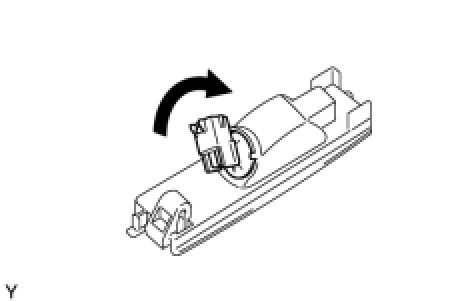

(b) Turn the license plate light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.
(c) Connect the connector.

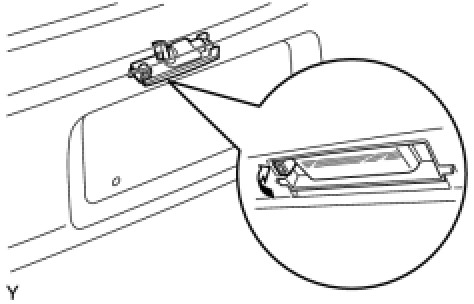

(d) Engage the claw and install the license plate light.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
