LIGHTING: MAP LIGHT ASSEMBLY: INSPECTION

INSPECTION





1. INSPECT MAP LIGHT ASSEMBLY
(a) Check the resistance.
(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.

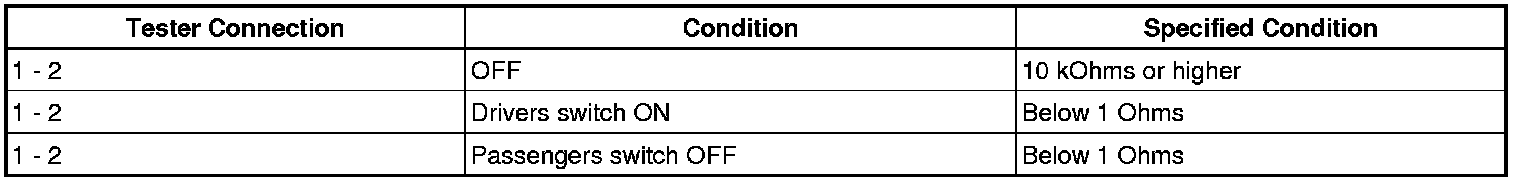

Standard Resistance:






If the result is not as specified, replace the map light.
(b) Check the light operation.

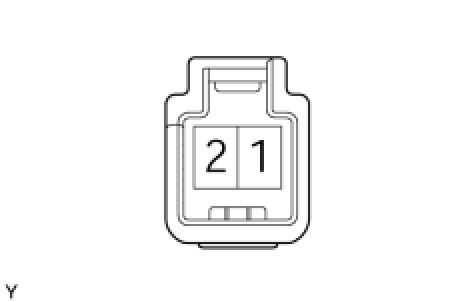

(1) Connect the positive (+) battery lead to terminal 1 and the negative (-) battery lead to terminal 2, then check that the light illuminates.
standard:
Light illuminates.
If the light does not illuminate, replace the bulb.
