Horn Relay (for Sedan)

HORN: HORN RELAY (for Sedan): INSPECTION

INSPECTION

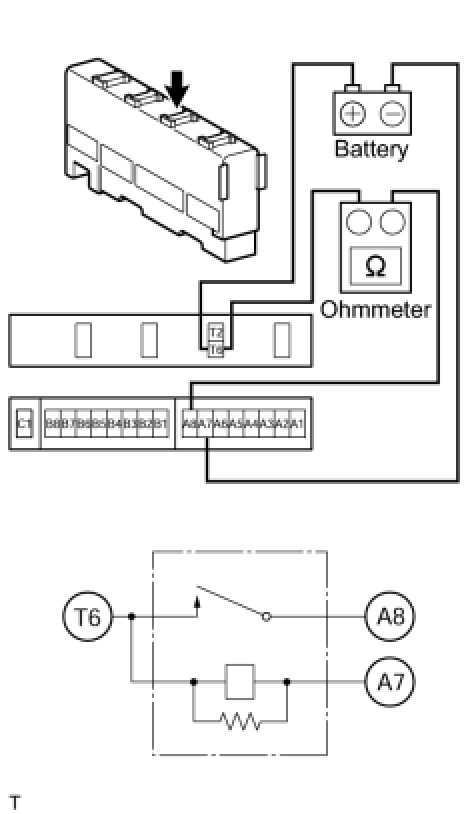

1. INSPECT INTEGRATION RELAY (Built in Horn Relay)





(a) Check the resistance.
(1) Remove the horn fuse.
(2) Using an ohmmeter, measure the resistance between the terminals.

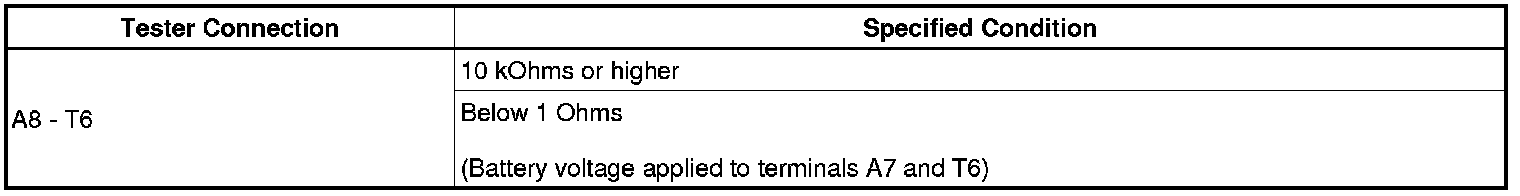

Standard resistance:






If the result is not as specified, replace the integration relay.
