Removal

LIGHTING: HAZARD WARNING SWITCH (for Hatchback): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal





3. REMOVE HAZARD WARNING SIGNAL SWITCH

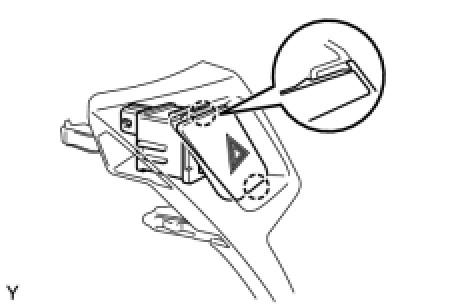

(a) Disengage the 2 claws and remove the hazard warning signal switch.
