Installation

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY (for Hatchback): INSTALLATION

INSTALLATION

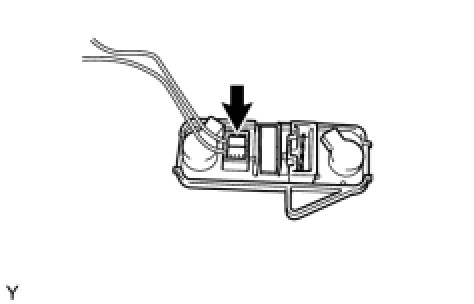

1. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
(a) Connect the connector and install the rear combination light socket and wire.
2. INSTALL REAR COMBINATION LIGHT BULB

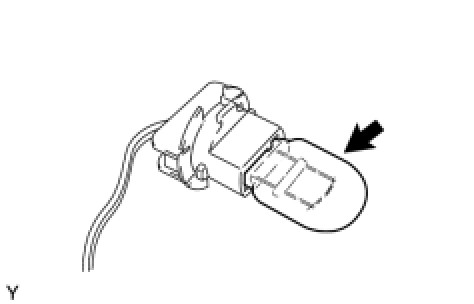

(a) Install the rear combination light bulb into the light socket.

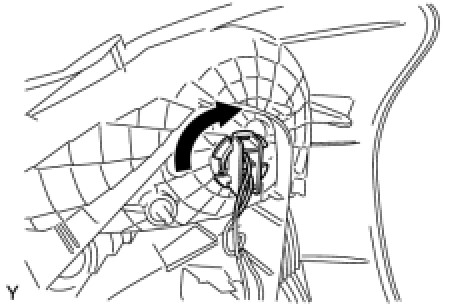

(b) Turn the rear combination light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

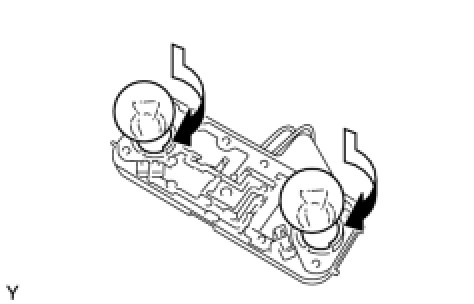

(c) Turn the 2 rear combination light bulbs, in the direction indicated by the arrows in the illustration, to install them.

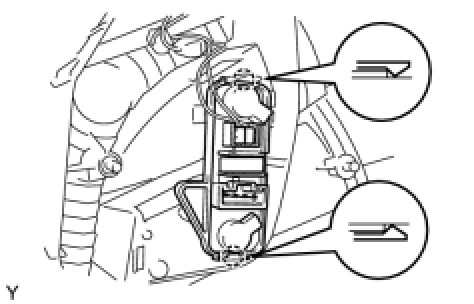

(d) Engage the 2 claws and install the rear combination light socket and wire.

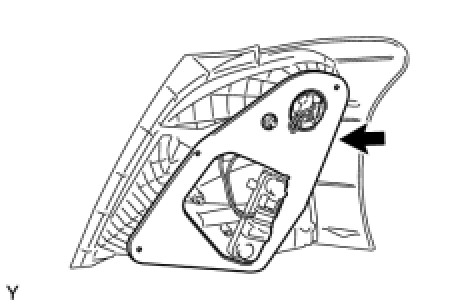

3. INSTALL REAR COMBINATION LIGHT BODY GASKET
(a) Install a new rear combination light body gasket.

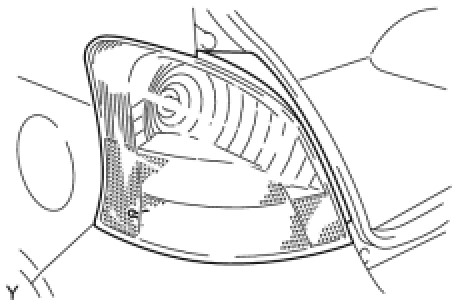

4. INSTALL REAR COMBINATION LIGHT ASSEMBLY





(a) Install the rear combination light assembly onto the vehicle.





(b) Connect the connector.
(c) Install the 2 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

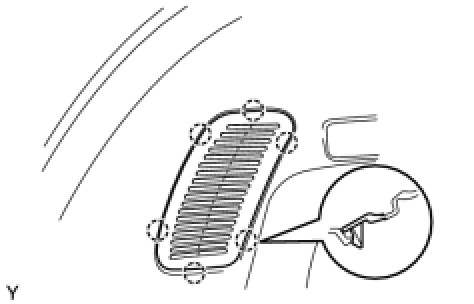

5. INSTALL REAR COMBINATION LIGHT COVER
(a) Engage the 6 claws and install the rear combination light cover.
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
