Components

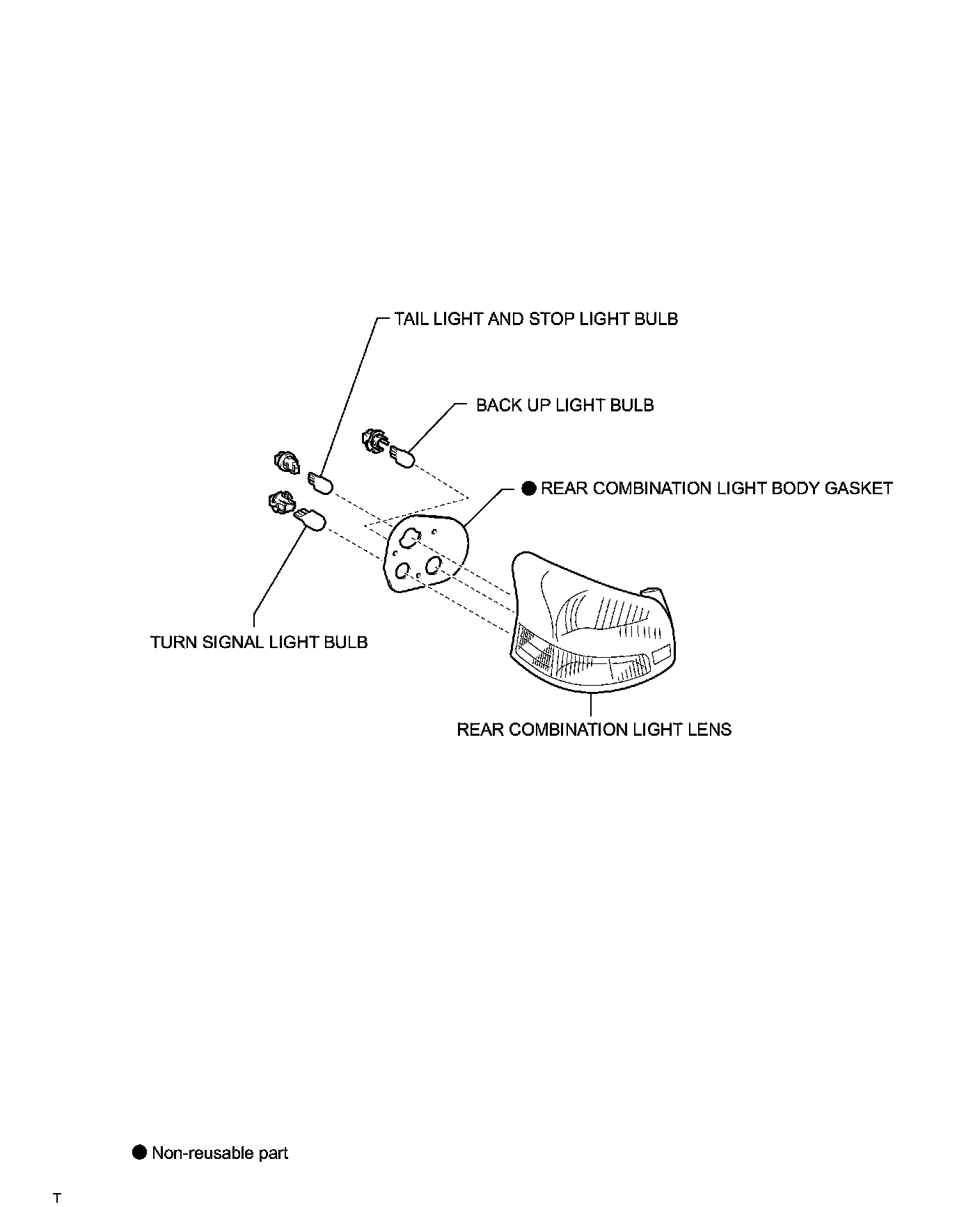

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY (for Sedan): COMPONENTS

COMPONENTS

ILLUSTRATION
