LIGHTING: REAR COMBINATION LIGHT ASSEMBLY (for Sedan): INSTALLATION

INSTALLATION

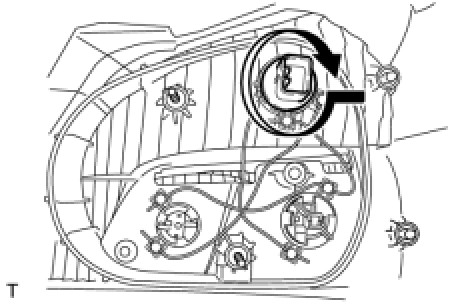

1. INSTALL BACK UP LIGHT BULB





(a) Install the back up light bulb into the socket.
(b) Turn the back up light socket, in the direction indicated by the arrow in the illustration, to install them.

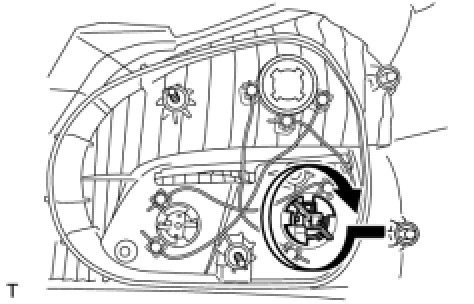

2. INSTALL TURN SIGNAL LIGHT BULB





(a) Install the turn signal light bulb into the socket.
(b) Turn the turn signal light socket, in the direction indicated by the arrow in the illustration, to install them.

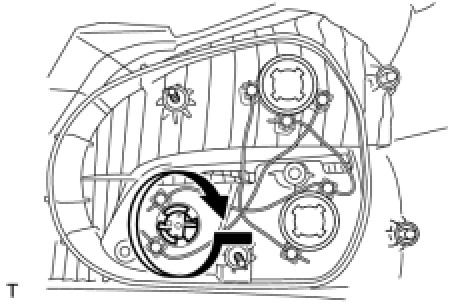

3. INSTALL TAIL LIGHT AND STOP LIGHT BULB





(a) Install the tail light and stop light bulb into the socket.
(b) Turn the tail light and stop light bulb socket, in the direction indicated by the arrow in the illustration, to install them.
4. INSTALL REAR COMBINATION LIGHT BODY GASKET





(a) Install a new rear combination light body gasket.
5. INSTALL REAR COMBINATION LIGHT ASSEMBLY





(a) Install the rear combination light assembly onto the vehicle.





(b) Connect the connector.
(c) Install the 2 nuts.
Torque: 3.0 Nm (31 kgf-cm, 27 in-lbf)
6. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER





(a) Engage the 5 clips and install the luggage compartment trim inner cover.
7. INSTALL REAR FLOOR FINISH PLATE





(a) Engage the 2 clips and install the rear floor finish plate.
8. INSTALL DECK FLOOR BOX LH





(a) Install the deck floor box and the deck side box door.
9. INSTALL DECK FLOOR BOX RH
HINT: Use the same procedure as for the LH side.

10. INSTALL SPARE WHEEL COVER ASSEMBLY





(a) Install the spare wheel cover assembly.
11. INSTALL LUGGAGE COMPARTMENT FLOOR MAT





(a) Install the luggage compartment floor mat.
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
