Programming and Relearning

LIGHTING: LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM
HINT: The following items can be customized.
NOTICE:
- When the customer requests modification of items, first make sure that the functions can be customized.
- Make a note of the current settings before customization.
- When troubleshooting items, first make sure that the functions are set to their default settings.

(a) Connect a Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the tester on.
(d) Enter the following menus: Customize Setting /

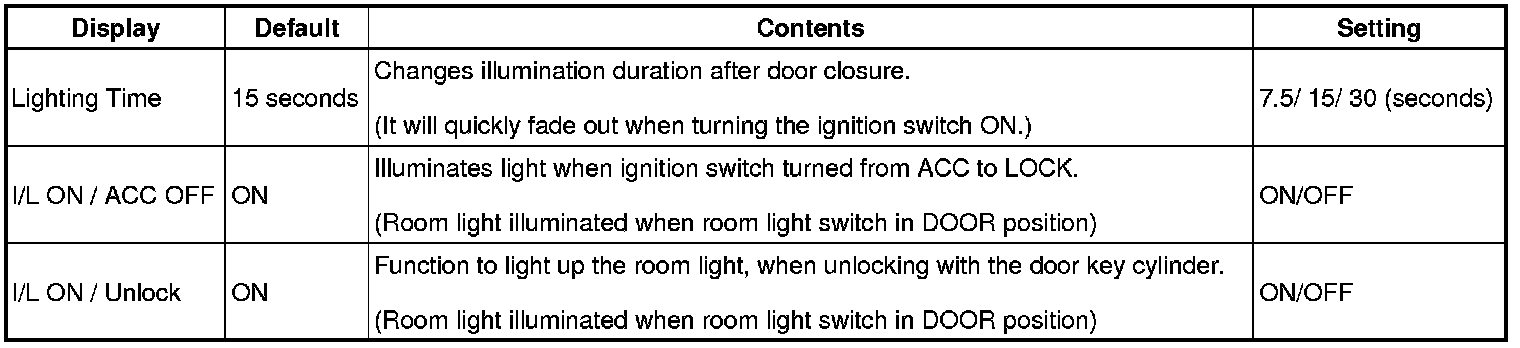

(e) Select the setting by referring to the table below.

Main Body (Main Body ECU):





HINT: Sensitivity adjustments are difficult to confirm. Check by driving the customer's vehicle.
