Installation

LIGHTING: LUGGAGE COMPARTMENT ROOM LIGHT (for Hatchback): INSTALLATION

INSTALLATION





1. INSTALL ROOM LIGHT BULB NO.2
(a) Install room light bulb No. 2.





2. INSTALL LUGGAGE COMPARTMENT ROOM LIGHT
(a) Connect the connector.

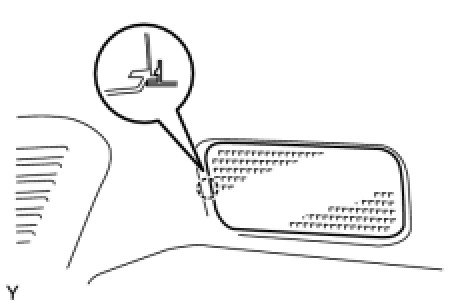

(b) Engage the claw and install the luggage compartment room light.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
