Removal

LIGHTING: LUGGAGE COMPARTMENT ROOM LIGHT (for Hatchback): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL





2. REMOVE LUGGAGE COMPARTMENT ROOM LIGHT

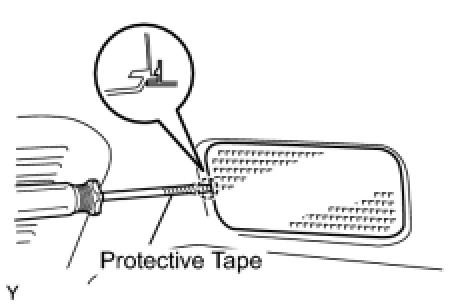

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the luggage compartment room light.
(b) Disconnect the connector.

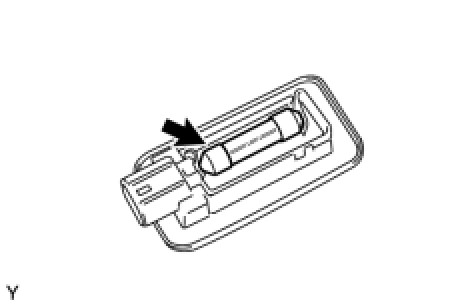

3. REMOVE ROOM LIGHT BULB NO.2
(a) Remove room light bulb No. 2.
