Installation

LIGHTING: LUGGAGE COMPARTMENT ROOM LIGHT (for Sedan): INSTALLATION

INSTALLATION

1. INSTALL LUGGAGE COMPARTMENT ROOM LIGHT BULB





(a) Install the luggage compartment room light bulb.
2. INSTALL LUGGAGE COMPARTMENT ROOM LIGHT





(a) Connect the connector.

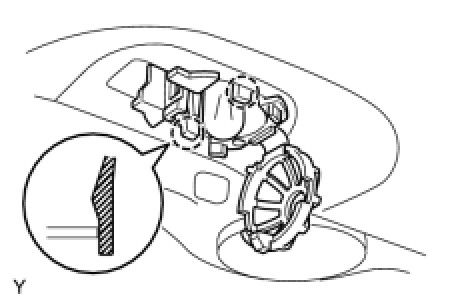

(b) Engage the 2 claws and install the luggage compartment room light.

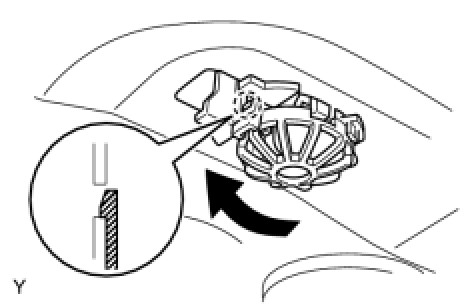

(c) Tilt the luggage compartment room light in the direction shown in the illustration and lock it.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
