Removal

LIGHTING: LUGGAGE COMPARTMENT ROOM LIGHT (for Sedan): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE LUGGAGE COMPARTMENT ROOM LIGHT

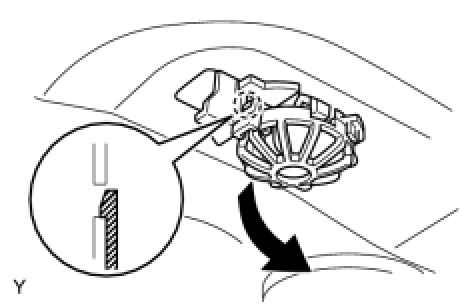

(a) Disengage the claw and pull up the luggage compartment room light in the direction indicated by the arrow.





(b) Disengage the 2 claws and remove the luggage compartment room light.
(c) Disconnect the connector.
3. REMOVE LUGGAGE COMPARTMENT ROOM LIGHT BULB





(a) Remove the luggage compartment room light bulb.
