Luggage Compartment Room Light (for Sedan)

LIGHTING: LUGGAGE COMPARTMENT ROOM LIGHT (for Sedan): INSPECTION

INSPECTION

1. INSPECT LUGGAGE COMPARTMENT ROOM LIGHT





(a) Check the light operation.

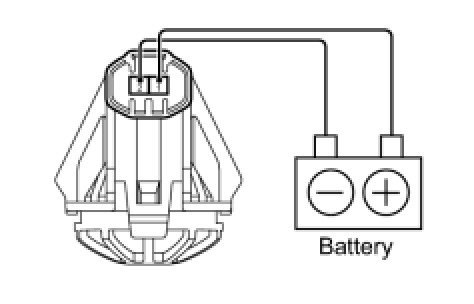

(1) Connect the positive (+) battery lead to terminal 1 and the negative (-) battery lead to terminal 2, then check that the light illuminates.
Standard:
Light illuminates.
If the light does not illuminate, replace the bulb.
